Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI5DR-A

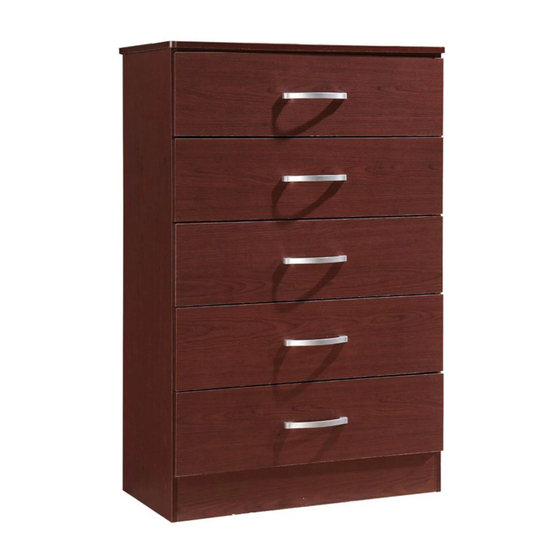

5 DRAWER CHEST
FRONT VIEW
Product Dimensions:
www.Hodedah.com
Height 48" x Width 31.5" x Depth 15.75"
Weight Capacity per drawer: 20 lbs.
BACK VIEW
2 people
90mins
1 YR LTD
1 Box
1 |
P a g e
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HI5DR-A
Summary of Contents for Hodedah HI5DR-A
- Page 1 Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90mins ITEM # HI5DR-A 1 YR LTD 5 DRAWER CHEST 1 Box BACK VIEW FRONT VIEW Product Dimensions: Height 48” x Width 31.5” x Depth 15.75”...
-
Page 2: Warranty
______________________________________________ WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. This warranty does not apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been altered or repaired in any way. -
Page 3: Product Care And Maintenance
Never push, drag or pull your furniture, to move to a new location carefully with two or more people carry the unit to its new location. Avoid extreme changes in temperature by arranging furniture away from radiators, heat and air vents and air conditioning units. P a g e www.Hodedah.com... -
Page 4: Hardware List
1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2. Check and measure the bolts before applying them to parts. 3. Do not completely tighten all hardware until the entire assembly is complete, unless indicated otherwise. P a g e www.Hodedah.com... -
Page 5: Parts List
Drawer Support Drawer Base 5Pcs 5Pcs Panel Panel 800x400x15mm 335x50x15mm 710x344x2.5mm 5Pcs Drawer Front Drawer – Left Drawer – Right 5Pcs 5Pcs Panel Side Panel Side Panel 778x217x15mm 350x116x15mm 350x116x15mm Drawer End 5Pcs Panel 701x116x15mm P a g e www.Hodedah.com... - Page 6 The Breakdown… P a g e www.Hodedah.com...
- Page 7 In hardware list, you will find five bundles of drawer slide (H), here you need to differentiate left and right as shown in picture below. Left Drawer Slide(H) Flat Shaped - Left "L" Shaped - Left Right Drawer Slide(H) "L" Shaped - Right Flat Shaped - Right P a g e www.Hodedah.com...
- Page 8 Insert PVC dowel (A) to Panel 1, 2, 3, 4, 5, 6, 11 and 12’s non-thru holes as shown, using hammer to gently tap them in. Non-thru holes (are small indents in the wood that show you where the screws should be.) P a g e www.Hodedah.com...
- Page 9 1. panel 1 as shown. Then tighten the drawer slide (H) with 3 screws (D). Insert Nail (I) protection onto the bottom edge of panel 1,slightly tapping them in with a hammer . P a g e www.Hodedah.com...
- Page 10 *Insert and fasten screws (C) (Using predrilled holes on panel 1) into the panel 3, 4, 5 and 6 by using screwdriver. *Cover all the screws (C)' head with sticker (F) provided by stick up onto hole of screw (C)' heads one by one. 10 | P a g e www.Hodedah.com...
- Page 11 *Fasten screws (C) from the outside of panel 2 by using the predrilled holes to attach panel 3, 4, 5 and 6. *Cover all the screws (C)' head with sticker (F) provided by stick up onto hole of screw (C)' heads one by one. 11 | P a g e www.Hodedah.com...
- Page 12 *Gently tap the panel 7 to connect panel 1 and panel 2 firmly. *Tighten minifix (B) clockwise to lock minifix up by going under panel 7 and tighten it upon both sides and middle pieces (Panel 1, 2, and 3). 12 | P a g e www.Hodedah.com...
- Page 13 *Insert panel 9 into the drawer and align properly. (As shown) *Insert the minifix (B)(nuts) with the cross arrow mark facing upward and aim to panel 8,11 and 12 's top thru holes.(As shown) 13 | P a g e www.Hodedah.com...
- Page 14 *Tighten screws (C) to panel 13 's upper thru holes to fix up to the panel 8. *Flip the drawer over. *Tighten 2 screws (E) from inner side of panel 10 into the handle (G) holes. 14 | P a g e www.Hodedah.com...
- Page 15 "L" shaped - left of the drawer slide stick to the end of drawer front panel 10. "L" shaped - right of the drawer slide stick to the end of drawer front panel 10. 15 | P a g e www.Hodedah.com...
- Page 16 *Take all drawers, and slide them (the white rollers at drawer slide at both side of drawers are to go into the track of the slide at each side panel.) All the way gently, one drawer by one drawer starting from bottom to the top accordingly. 16 | P a g e www.Hodedah.com...
- Page 17 17 | P a g e www.Hodedah.com...
- Page 18 Job Complete… Enjoy &Thank you for purchasing from Hodedah! 18 | P a g e www.Hodedah.com...
