Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI80DR

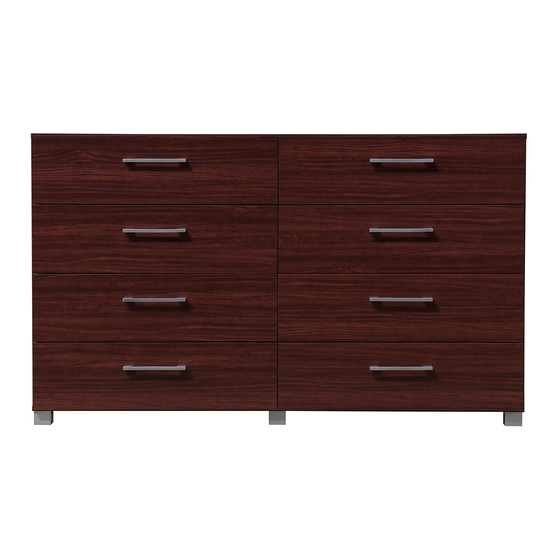

8 DRAWER DRESSER
FRONT VIEW
Product Dimensions:
www.Hodedah.com
Height 32.67" x Width 55.11" x Depth 15.74"
Weight Capacity per drawer: 20 lbs.
BACK VIEW
2 people
90mins
1 YR LTD
1 Box
1 |
P a g e

Advertisement

loading
Need help?

Need help?

Do you have a question about the HI80DR and is the answer not in the manual?

Questions and answers

Related Manuals for Hodedah HI80DR

Summary of Contents for Hodedah HI80DR

  • Page 1 Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90mins ITEM # HI80DR 1 YR LTD 8 DRAWER DRESSER 1 Box BACK VIEW FRONT VIEW Product Dimensions: Height 32.67" x Width 55.11" x Depth 15.74"...

  • Page 2: Warranty

    ______________________________________________ WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. This warranty does not apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been altered or repaired in any way.

  • Page 3: Product Care And Maintenance

    Never push, drag or pull your furniture, to move to a new location carefully with two or more people carry the unit to its new location.  Avoid extreme changes in temperature by arranging furniture away from radiators, heat and air vents and air conditioning units. P a g e www.Hodedah.com...

  • Page 4: Hardware List

    1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2. Check and measure the bolts before applying them to parts. 3. Do not completely tighten all hardware until the entire assembly is complete, unless indicated otherwise. P a g e www.Hodedah.com...

  • Page 5: Parts List

    Side Panel Side Panel Panel 350x116x15mm 350x116x15mm 619x116x15mm Drawer Base 8Pcs Drawer Base Back Panel 4Pcs 8Pcs Panel Supporting Panel 788x348.5x2.5mm 628x344x2.5mm 335x50x15mm Right - Back Left - Back Strengthening Panel Strengthening Panel 676x70x15mm 676x70x15mm P a g e www.Hodedah.com...
  • Page 6 The Breakdown… P a g e www.Hodedah.com...
  • Page 7 On hardware list, you will find eight bundles of drawer slide (H), left and right as shown in picture below. Left Drawer Slide(H) Flat Shaped - Left "L" Shaped - Left Right Drawer Slide(H) "L" Shaped - Right Flat Shaped - Right P a g e www.Hodedah.com...
  • Page 8 Insert PVC dowels (A) to Panel 2, 3, 4, 6, 7, 10, 11, 16 and 17's non-thru holes as shown, using hammer to gently tap them in. Non-thru holes (are small indents in the wood that show you where the screws should be.) 8x25mm Dowel 60Pcs P a g e www.Hodedah.com...
  • Page 9 (H) at the predrilled holes on the panel 2 as shown. Then tighten the drawer slide (H) with 3 screws (F). M3.5x16mm Screw 24Pcs Drawer Slide 300mm - Right 4Pcs Drawer Slide 300mm - Left 4Pcs P a g e www.Hodedah.com...
  • Page 10 4. Then tighten it with 3 screws (F). Right View M3.5x16mm Screw 24Pcs Drawer Slide 300mm - Right 4Pcs Drawer Slide 300mm - Left 4Pcs 10 | P a g e www.Hodedah.com...
  • Page 11 Step 4 *Place 33mm myfix (C) long piece onto the holes of panel 1, 8 and 9. (You will use 30 pieces) 33mm Myfix 30Pcs 11 | P a g e www.Hodedah.com...
  • Page 12 *Insert 63mm myfix (B) onto the holes of panel 6 and 16 as shown *Insert the minifix (D) nuts with the cross arrow mark facing upwards and tighten it clockwise. 63mm Myfix 4Pcs Minifix 4Pcs 12 | P a g e www.Hodedah.com...
  • Page 13 Step 6 *Attach panel 6 and 16 onto panel 4, align the position properly and slightly tap them in with hammer. 13 | P a g e www.Hodedah.com...
  • Page 14 *Fasten screws (E) onto the predrilled holes of panel 2 to fix panel 6 and 16. *Cover all the screws (E)' head with stickers (G) provided by stick up onto hole of screw (E)' heads one by one. M4x45mm Screw 4Pcs Sticker 4Pcs 14 | P a g e www.Hodedah.com...
  • Page 15 Step 8 *Place panel 7 and 17 onto the inserted 63mm minifix (B), then insert the minifix (D) nut with the cross arrow mark facing upwards and tighten it clockwise. Minifix 4Pcs 15 | P a g e www.Hodedah.com...
  • Page 16 *Fasten screws (E) onto the predrilled holes of panel 3 to fix panel 7 and 17. *Cover all the screws (E)' head with stickers (G) provided by stick up onto hole of screw (E)' heads one by one. M4x45mm Screw 4Pcs Sticker 4Pcs 16 | P a g e www.Hodedah.com...
  • Page 17 *Attach panel 5 onto panel 2, 3 and 4, align the position properly and slightly tap them in with hammer. *Fasten screws (E) onto the predrilled holes of panel 5 to fix panel 2, 3 and 4. M4x45mm Screw 6Pcs 17 | P a g e www.Hodedah.com...
  • Page 18 Step 11 *Place square leg (I) onto the predrilled holes of panel 5, using screws (J) to fix them. 40mm Square Leg 6Pcs M4x32mm Screw 12Pcs 18 | P a g e www.Hodedah.com...
  • Page 19 * Gently tap the panel 1 to connect panel 2, panel 3 and panel 4 firmly. *Insert minifix (D) nuts into both sides predrilled holes of panel 2, 3 and 4, then tighten them clockwise in order to lock minifix up by going underneath panel 1. Minifix 6Pcs 19 | P a g e www.Hodedah.com...
  • Page 20 Step 13 *Fix approximately 50 pieces of nails (M) into panel 13 using a hammer. 6/8 Power Pin 50Pcs 20 | P a g e www.Hodedah.com...
  • Page 21 10 and 11 properly. (As shown) *Insert the minifix (D) nuts with the cross arrow mark facing upwards and aim to panel 10,11 and 15's top thru holes.(As shown) Minifix 24Pcs 21 | P a g e www.Hodedah.com...
  • Page 22 *Next tighten screws (E) to panel 11's upper thru holes to fix up to the panel 12. *Tighten screws (E) to panel 12's upper thru holes to fix up to the panel 15. M4x45mm Screw 40Pcs 22 | P a g e www.Hodedah.com...
  • Page 23 Step 16 *Flip the drawer over. *Tighten 2 screws (L) from inner side of panel 8 and 9 into the handle (K) holes. Handle 525.160 8Pcs M4x28mm Screw 16Pcs 23 | P a g e www.Hodedah.com...
  • Page 24 8 and 9. Then tighten 3 screws (F) on each drawer slides (H). "L" shaped - left of the drawer slide stick to the end of drawer front panel 8 and 9. M3.5x16mm Screw 24Pcs Drawer Slide 300mm - Left 8Pcs 24 | P a g e www.Hodedah.com...
  • Page 25 8 and 9. Then tighten 3 screws (F) on each drawer slides (H). "L" shaped - right of the drawer slide stick to the end of drawer front panel 8 and 9. M3.5x16mm Screw 24Pcs Drawer Slide 300mm - Right 8Pcs 25 | P a g e www.Hodedah.com...
  • Page 26 *Take all drawers, and slide them (the white rollers at drawer slide at both side of drawers are to go into the track of the slide at each side panel.) All the way gently, one drawer by one drawer starting from bottom to the top accordingly. 26 | P a g e www.Hodedah.com...
  • Page 27 27 | P a g e www.Hodedah.com...
  • Page 28 Job Complete… Enjoy &Thank you for purchasing from Hodedah! 28 | P a g e www.Hodedah.com...
