- Page 1 HDbaseT HDMI 2.0 Extender with HDR User's Guide P/N: HDbaseT-HDR G4-0045A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Package Contents
• Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and IR Extension cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •... - Page 4 Introduction The HDbaseT HDMI 2.0 Extender with HDR extends HDMI signals up to 70 meters (230ft) with PoC using an economical CAT5e/6 cable. Features • Extends HDMI transmissions up to 70m (230ft) @ 1080p and 40m (130ft) @ 4K • Supports UHD 4K/60Hz/4:4:4.
-
Page 5: Product Layout

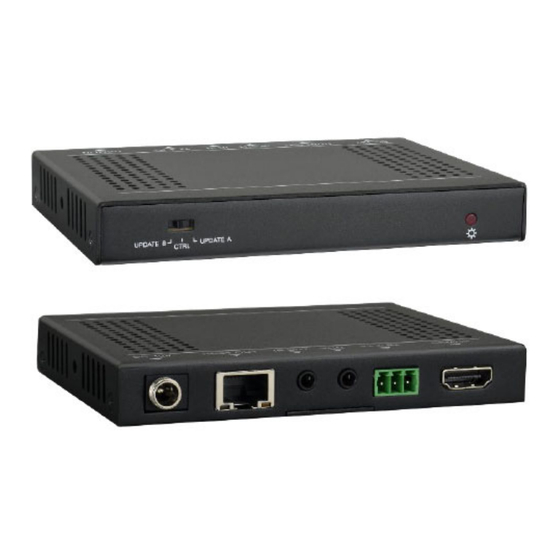

Product Layout Figure 1: Transmitter and Receiver Name Description - CTRL: RS-232 pass-through Mode Switcher - UPDATE A: Firmware update mode - UPDATE B: Update compression IC Power LED Red when power adapter is connected HDMI IN (Transmitter) Connects to your HDMI source HDMI OUT (Receiver) Connects to your HDMI display RS-232 pass-through. - Page 6 IR Extenders • IR Blaster cable: Plug into the Transmitter's or Receiver's IR OUT to emit IR signals • IR Receiver cable: Plug into the Receiver's or Transmitter's IR IN to receive IR signals Control your media player (such as DVD) at the TV side using the media player's remote controller •...
-
Page 7: Installation Requirements
Installation Requirements HDMI source device (computer, DVD player, XBOX, PS3, etc). HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.). UTP/STP CAT5e/6 cable following IEEE-568B wiring standard. Hardware Installation Power off all devices including your HDMI source and HDMI display. Transmitter Connect your HDMI source device to the Transmitter's HDMI IN connector with a HDMI cable (HDMI cable not included). - Page 8 Plug your CAT5e/6 cable between the Transmitter's HDBT Out and Receiver's HDBT IN. Optional: Connect the IR Extension cables according to the instructions on page 6. Plug the included power adapter into either the Transmitter's or Receiver's power jack, then plug the power adapter into a reliable power source.
- Page 9 Application Figure 2:...
- Page 10 FAQ & Solutions There is no video output or audio and video display is not normal: 1) Use a shorter network cable. The extender is not working properly: 1) Please check the cable lengths below: - HDMI cables: Up to 5m (Input and Output) - Network cables (CAT5e/6): - Up to 70m @ 1080p - Up to 40m @ 4K...
-
Page 11: Specifications
Specifications Item Description 1080p: up to 70m (230ft) Transmission Distance 4Kx2K: up to 40m (130ft) Resolution Up to 4Kx2K @ 60Hz, 4:4:4 Bandwidth 18Gbps Standards HDMI 2.0 & HDCP 2.2 Power Consumption 14W (max) Operating Temperature 0 to 40 C Storage Temperature -10 to 50 C Humidity... - Page 12 Thank you for choosing gofanco www.gofanco.com...
