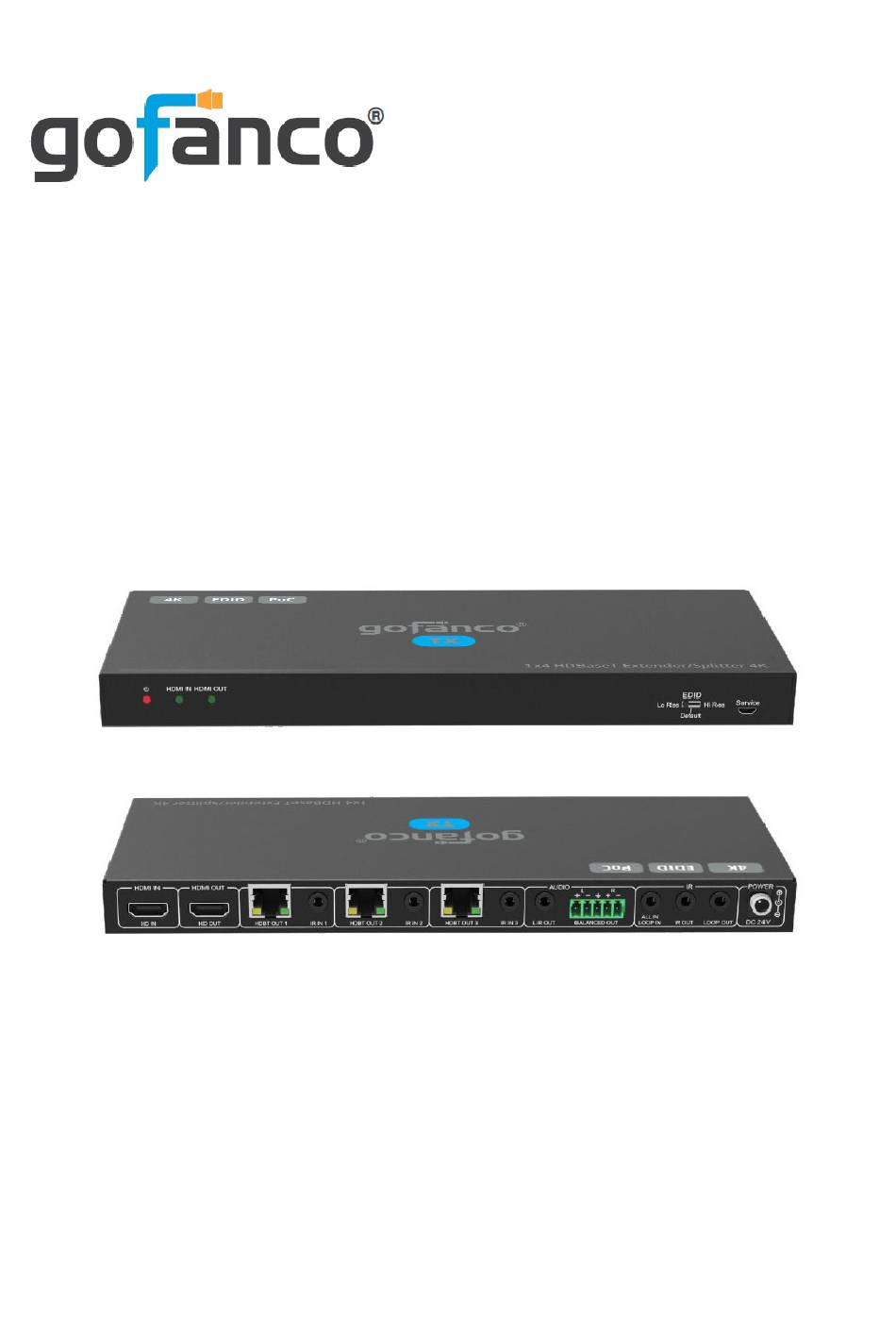

- Page 1 1x4 HDBaseT Extender/ Splitter 4K User's Guide P/N:HDBaseT4P-4K G4-0068A...
-
Page 2: Important Safety Notices
Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. - Page 3 Introduction The 1x4 HDBaseT Extender/Splitter 4K splits HDMI signals from a source device into 3 HDBaseT outputs plus one HDMI output. Features • Splits/extends HDMI signals to 4 displays simultaneously • 3 HDBaseT outputs over CAT cables with 3 Receivers included and 1 HDMI output •...
-
Page 4: Package Contents

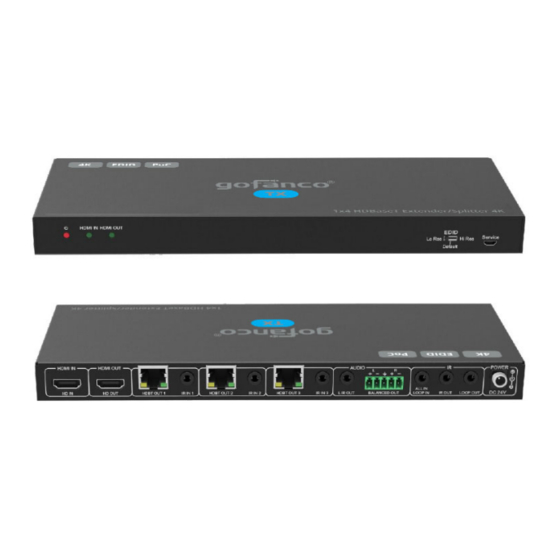

Package Contents HDMI HDBaseT Extender/Splitter 1x 1x4 HDBaseT Extender/Splitter 4K • 2x Mounting ears with 4 screws • 4x Plastic cushions • 1x IR receiver • 1x IR emitter • 1x 5-Pin Terminal block • 1x Power adapter • 1x User guide •... - Page 5 Product Layout Figure 1: HDBaseT Extender/Splitter Front Panel Layout Off: No power Power LED On: Extender/Splitter is powered on Off: No HDMI input signal detected On: HDMI input signal detected with HDCP HDMI In LED Flashing: HDMI input signal detected with no HDCP Off: No HDMI output signal detected On: HDMI output signal detected with HDCP...
- Page 6 Figure 3: HDBaseT Receiver Layout HDMI Out Connects to an HDMI display IR In Connects to the IR Receiver Extension cable IR Out Connects to the IR Blaster Extension cable 12VDC power jack. Typically not needed, the DC 12V receivers are powered over CAT cable by the Extender/Splitter using PoC Off: No power Power LED...
-
Page 7: Hardware Installation
Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the HDBaseT Extender/Splitter's HDMI Input connector with an HDMI cable (HDMI cable not included). Connect your CAT cables between the HDBaseT Extender/Splitter and HDBaseT Receivers. - Page 8 Application Diagram The application diagram shows the most typical input and output devices used with the Extender/Splitter. Figure 4: Application Diagram CAT Cable Wiring We suggest both RJ-45 connectors be wired identically using T568B wiring standard for the best performance and compatibility.
- Page 9 IR Control Provides IR control of the connected devices. The IR feature is bidirectional so either the source device or the display device(s) can be remotely controlled. Controlling the Display Device(s) Connect an IR Receiver Extension Cable to the IR In port of the HDBaseT Extender/Splitter.
- Page 10 Controlling the Source Device Connect an IR Blaster Extension Cable to the IR Out port of the HDBaseT Extender/Splitter. Point the IR Blaster Extension Cable's IR eye in line with the source device's IR window. Connect an IR Receiver Extension Cable to the IR In port on each HDBaseT Receiver.
-
Page 11: Edid Management
EDID Management EDID is used by the source device to match the video resolution to the connected display(s). The source device obtains its EDID from the 1st connected display as default setting. However, since displays with different capabilities are often connected to the splitter, the EDID DIP switch can be used to set the EDID to a fixed value to offer the best compatiblity accross all connected displays. - Page 12 FAQ & Troubleshooting Poor video quality or no video signal on display: A1: Check whether the HDMI cables are connected properly and are in good working condition. A2: Make sure the resolution of the display is compatible with the splitter's resolution No HDMI signal output from the HDBaseT connectors while the local HDMI out port is working normally:...
- Page 13 Specifications 1x4 HDBaseT Extender/Splitter...
- Page 14 HDBaseT Receiver...
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
