- Page 1 4-Port HDMI HDbitT Extender 1080p - 120m User's Guide P/N:HDbitT4Pv2 G4-0105A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.

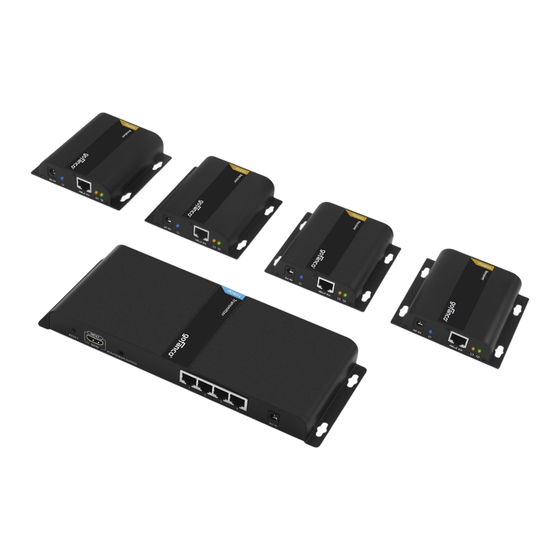

- Page 3 Introduction The 4-Port HDMI HDbitT Extender 1080p - 120m extends high definition 1080p signals up to 394ft (120m) over CAT6 to 4 monitors. Features and Benefits • 4-Port HDMI HDMI Extender/Splitter Kit with 1 Transmitter (TX) and 4 Receivers (RX) •...
- Page 4 Product Layout Figure 1: Transmitter (TX) - Back Panel Figure 2: Transmitter (TX) - Front Panel Reset: Press to reset the Transmitter HDMI In: Connects to the HDMI source device IR Out: Infrared 3.5mm socket. Plug the IR Blaster Cable here. See instructions on page 7. RJ45 Out (x4): Links to the Receiver's RJ45 In using a Cat cable Power Jack: Connect the included 5V/2A power...
- Page 5 Figure 3: Receiver (RX) Layout Reset: Press to reset the Receiver if the HDMI Extender doesn't work properly HDMI Out: Connects to your HDMI display with an HDMI cable (cable not included) IR In: Infrared 3.5mm socket. Plug the IR Receiver Cable here.
- Page 6 Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.) HDMI cables (not included) UTP/STP CAT6/6A/7 cable, following IEEE-T568B wiring standard Cat Cable Writing We suggest both RJ45 connectors be wired identically using T568B wiring standard for the best performance and compatibility.
- Page 7 Hardware Installation To achieve optimal performance, CAT6 cable is recommended. Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source to the Transmitter's HDMI In connector. Optional: Connect the IR Blaster Cable to the Transmitter's IR Out port. Face the eye towards your HDMI source device's IR window.
- Page 8 Connection Diagram Supports direct connection between the TX and RX or via Dedicated Gigabit Ethernet Switch. HDMI Source Power Adapter HDMI cable Transmitter Cat cable (x4) IR Blaster Receiver (x4) IR Receiver HDMI cable (x4) Display (x4) Direct Connection Notes: •...
- Page 9 FAQ & Solutions Q1: No image or audio output on the display? 1. Check if the display is in standby mode. 2. Make sure the display's HDMI port is properly connected to the HDMI cable. 3. Check the Link LED indicator on the Receiver is Q2: Not all displays are receiving a signal.
-
Page 10: Specifications
Specifications Item Specification HDMI signal HDMI 1.3 and HDCP 1.4 compatible TX: 1x, 19-pin HDMI, Female Input RX: 1x, RJ45; 1x, IR, 3.5mm socket TX: 4x, RJ45; 1x, IR, 3.5mm socket Output RX: 1x, 19-pin HDMI, Female 480i@60Hz, 480p@60Hz, 576i@50Hz, Resolution 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the acutal products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
