Summary of Contents for gofanco HD20Ext-LT

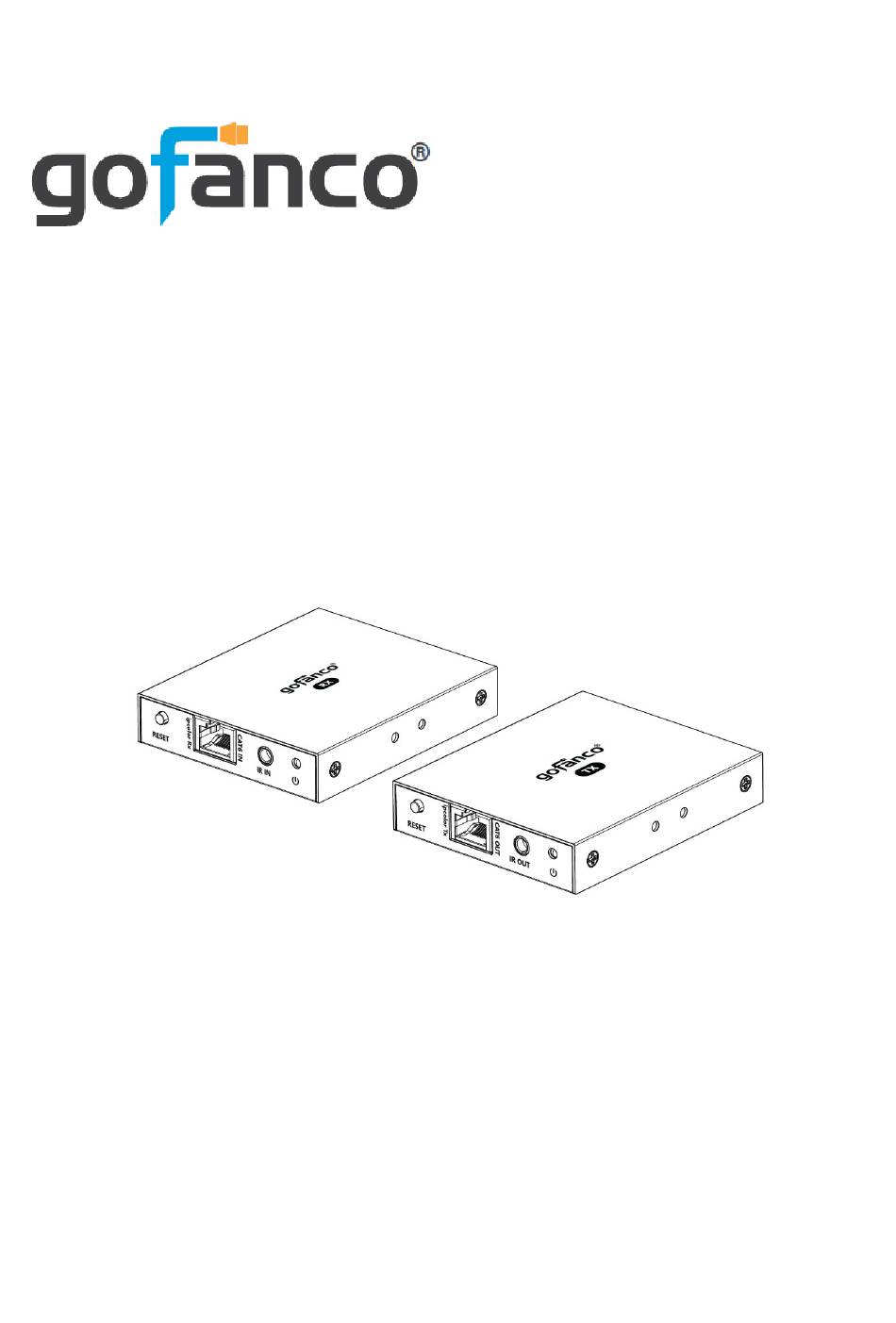

- Page 1 4K 60Hz HDMI CAT Extender LT - 70m User's Guide P/N: HD20Ext-LT G4-0135A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •...

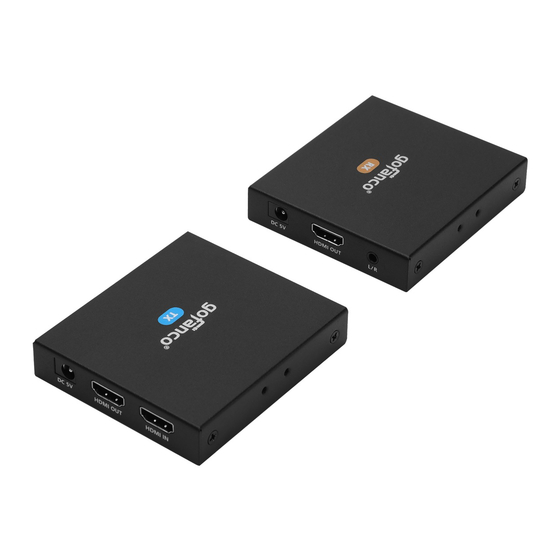

- Page 4 • Near zero latency • Lightning/Surge/ESD protection Package Contents • 4K 60Hz HDMI CAT Extender LT - 70m (1 Transmitter & 1 Receiver) • 1x IR Blaster cable and 1x IR Receiver cable • 2x Power adapters (5VDC/1A) • Surface mount accessories •...
- Page 5 Product Layout Transmitter TX Front and Rear Panel Reset Button: Press to reset the TX RJ45 Out: Connects to the Receiver's RJ45 In using a CAT cable IR Out: Connects to the included IR Blaster cable to control the HDMI source device from the remote display location Power/Signal LED: Blinks when powered on with no HDMI signal detected, and solid...
- Page 6 Receiver RX Front and Rear Panel Reset Button: Press to reset the RX RJ45 In: Connects to the Transmitter's RJ45 Out using a CAT cable IR In:Connects to the included IR Receiver cable to control the HDMI source device from the remote display location Power/Signal LED: Blinks when powered on with no HDMI signal detected, and solid on when HDMI signal is detected...
- Page 7 CAT Cable Wiring We suggest both RJ45 connectors be wired identically using T568B wiring standard for the best performance and compatibility.
- Page 8 Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). Optional: Connect your HDMI display to the Transmitter's HDMI Out connector with an HDMI cable (HDMI cable not included) for local monitoring of the HDMI signal.
- Page 9 Optional: Connect the IR Receiver cable to the Receiver's IR In port. This connection is needed only if you need to control your HDMI source device from the remote display location. Plug the included power adapters into the TX's and RX's power jack, then plug the power adapters into reliable power sources.
- Page 10 Specifications...
- Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
