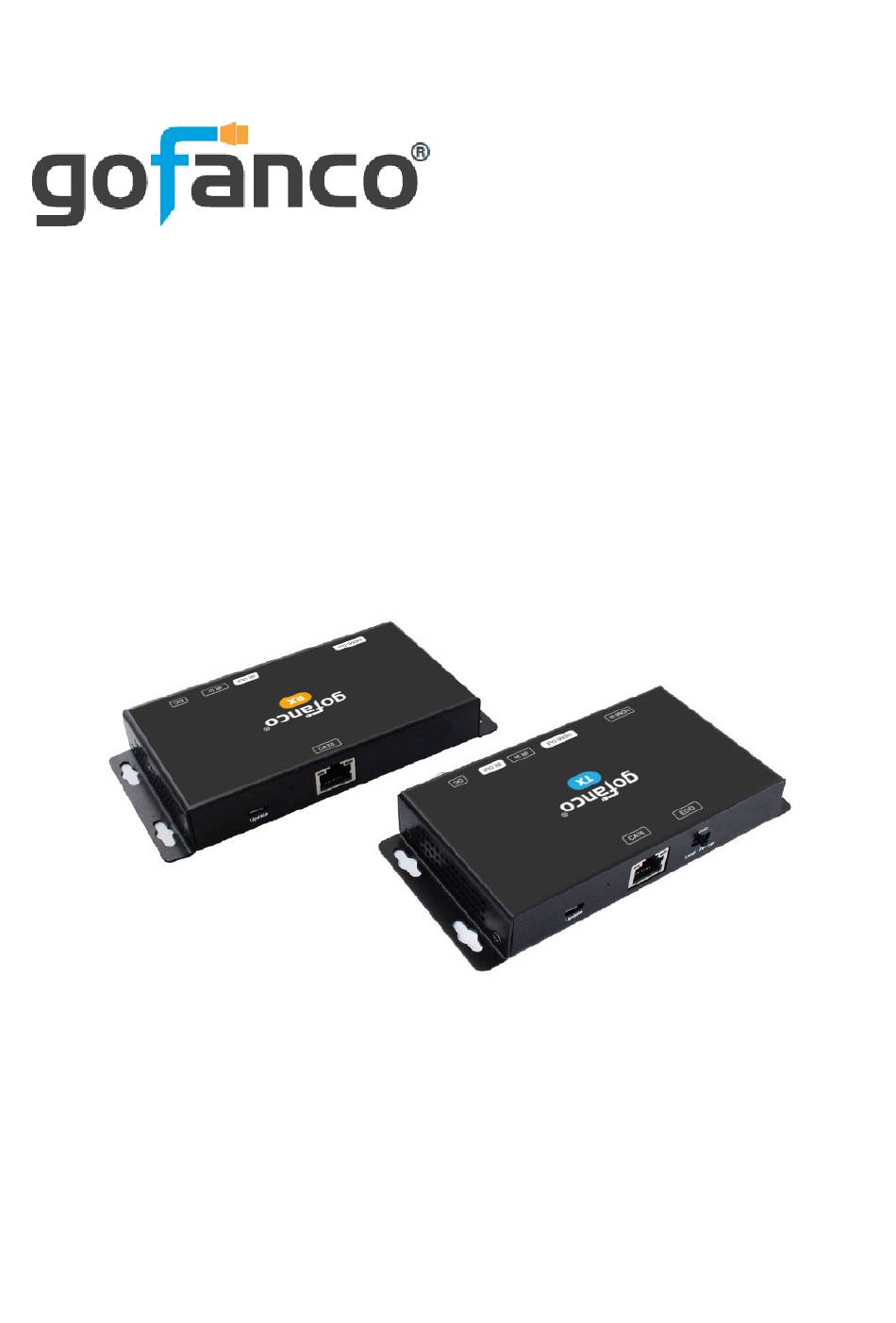

- Page 1 HDBaseT HDMI 2.0 Extender with Loopout User's Guide P/N: HDBaseT-HD20 G4-0066A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •...
- Page 4 • Supports Power over Cable (PoC) technology, powers both the transmitter unit and receiver unit using only one power adapter connected to either unit • The Transmitter's HDMI loopout allows for a local display and monitoring of the extended display Package Contents •...
-
Page 5: Product Layout

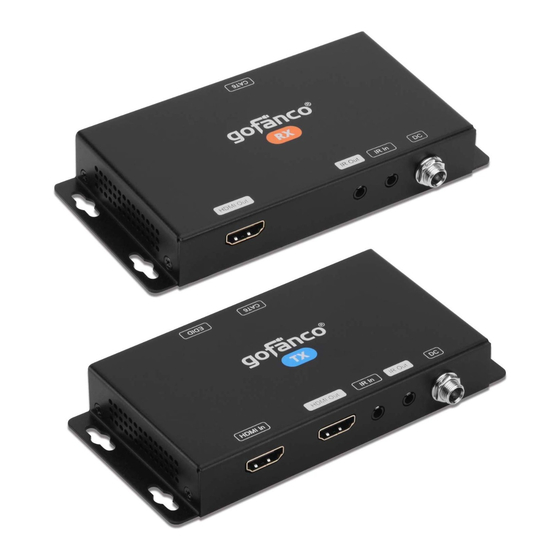

Product Layout Transmitter TX Front and Rear Panel Name Description Connects to your HDMI source HDMI In device Connects to an HDMI display for HDMI Out local monitoring of the remote display device Connects to the included IR Receiver Extension cable to IR In control the remote display device from the HDMI source location... - Page 6 Receiver RX Front and Rear Panel Name Description HDMI Out Connects to an HDMI display Connects to the included IR Blaster Extension cable to control IR Out the remote display device from the HDMI source location Connects to the included IR Receiver Extension cable to IR In control the HDMI source device...
- Page 7 Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). Optional: Connect an HDMI display to the Transmitter's HDMI Out connector with an HDMI cable (HDMI cable not included) for local monitoring of the HDMI signal.
- Page 8 Optional: Connect the IR Extension cable to the Receiver's IR port. This connection is needed only if you need to control your HDMI device from the remote location. See the application diagram on page 9 for proper cable connection. Plug the included power adapter into either the Transmitter's or Receiver's power jack, then plug power adapter into a reliable power source.
- Page 9 Application Transmitter (TX) Receiver (RX)
-
Page 10: Specifications
Specifications... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
