temperature
Select a Sonar Source
In addition to the MEGA 360 Imaging transducer, you may have another Humminbird transducer connected directly to the control
head and/or available in a Humminbird multiple-control head Ethernet network. The MEGA 360 Imaging transducer does not
provide depth or temperature data, so they must be provided by another transducer.
The sonar and temperature sources may be auto-populated in the Network Source Setup dialog box, but it is important to confirm
that the source selections match your transducer and frequency preferences. You can use the Network Source dialog box to
change the sonar source.
1. Network Source Setup Dialog Box: Select the Network tab > Network Source Setup. Press the RIGHT Cursor key.
2. Use the Cursor Control key to select a tab and choose a source. Press the CHECK/INFO key to select the source as follows:
2D Traditional Sonar
Down Imaging
Side Imaging
MEGA 360 Imaging
Temperature Data
GPS Receiver/Heading
Sensor

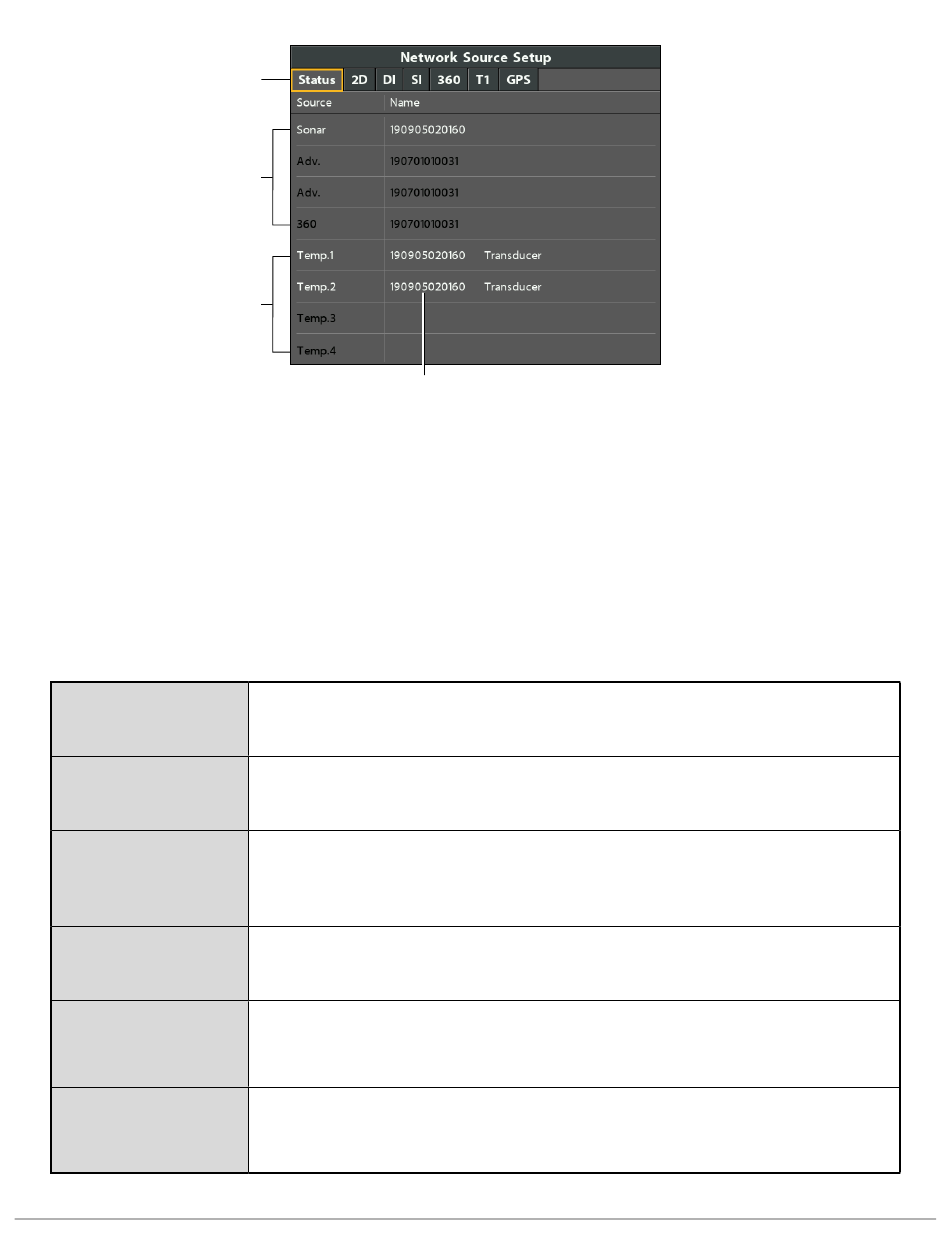

Network Source Setup Dialog Box (HELIX)
status tab
sonar
sources
sources
Select the 2D tab and select a 2D sonar source for the traditional sonar views.
Select the DI tab and select a Down Imaging sonar source.
Select the SI tab and select a Side Imaging sonar source.
If there is a Side Imaging transducer connected to the control head, it will only be able
to display 2D and Down Imaging data. Side Imaging data can be provided by the MEGA
360 beam.
Select the 360 tab and select the MEGA 360 Imaging source.
The MEGA 360 Imaging transducer does not provide temperature. Select a Temperature
tab (T1, T2, etc.) and select a temperature source or use the default temperature source.
Select the GPS tab and select the sensor that is attached to the control head. The type
will be listed as Ext (externally connected). A GPS Receiver/Heading Sensor is required
for the MEGA 360 Imaging navigation features.
source name
19 Set Up the Network
