JOYTECH PY1400ACL User Manual page 18

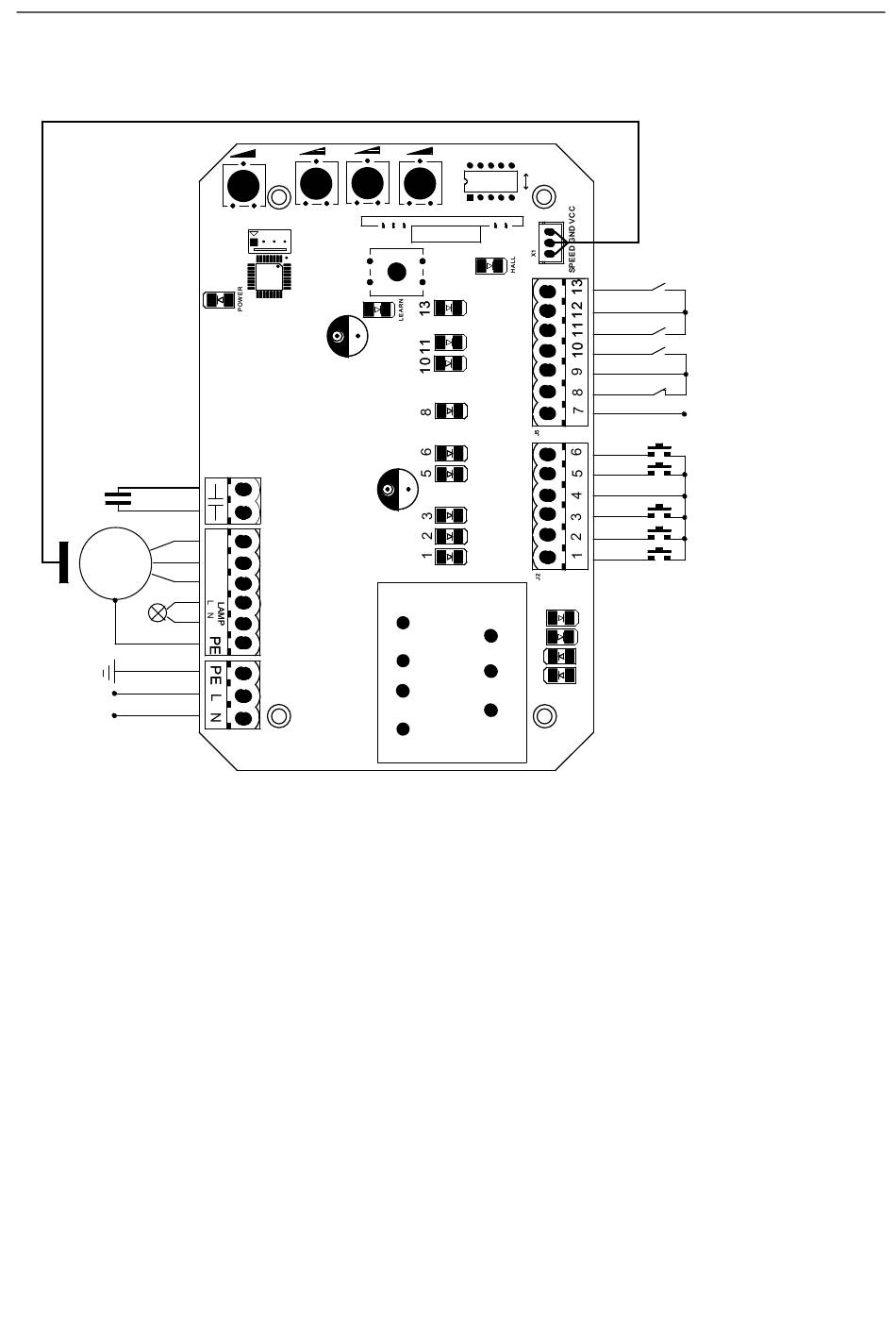

4.3.5.1 Intelligent control board
Capacitor Capacitor
M
Lamp Lamp
Earth Earth
Power Power
Wiring instruction:
1. Connect L and N to the power supply of AC220V/50HZ; AC110V/60HZ; L is live wire, N is
Neutral wire, and PE is grounding wire.
2. Connect LAMP to caution light; voltage: AC220V/50HZ; AC110V/60HZ.
3. Connect the motor wire MOT2 to the REV motor wire, connect MOT1 to the FWD motor wire,
and connect MOTCOM to the motor common wire.
4. Connect MOTCAP to the capacitor wire.
J2 (For the convenience of wiring, this terminal is accompanied with failure diagnosis light)
1. Gate close control button (N.O.)
2. Gate open control button (N.O.)
3. Stop control button (N.O.)
4. Control button common terminal
5. Open/Stop/Close/Stop loop control button (N.O.)
6. Pedestrian mode control button (N.O.)
Hall Hall line line
VR2 VR2
VR1 VR1
SW1 SW1
S1 S1
U2 U2
MOT MOT
CAP CAP J6 J6
MOT1 MOT1
MOT2 MOT2
MOT MOT
COM COM
J4 J4
J3 J3
VR3 VR3
VR4 VR4
ON ON
OFF OFF
U1 U1
J1 J1
Figure 21
Limit switch Limit switch
Loop Loop detetcor detetcor
GND GND
Infrared sensor Infrared sensor
12VDC 12VDC
Pedestrian switch Pedestrian switch
O/S/C O/S/C switch switch
External External button button
switch switch
