Typical System Components - Johnson Controls DHPM09NWM42Q1 Installation Manual

DISPLAY
D
INDICATORS
COOL
DRY
FAN
HEAT
RUN
TEMPERATURE SETTING
INDOOR AMBIENT TEMPERATURE
OR ERROR CODE
NOTE:
Temperature can be
displayed in either fahrenheit or celsius.
A. Remote control
B. Front anel
C. Filters
D. Guide louver with display
E. Line set (wrapped in foam insulation)
F. UV-rated tape (field-provided)
G. Wiring (field-provided)
H. Condensate drain line (field-provided) (wrapped in foam
insulation). Recommend installation of a vent when making long
18 KBTU OUTDOOR UNIT
(ONE TO TWO ZONES)

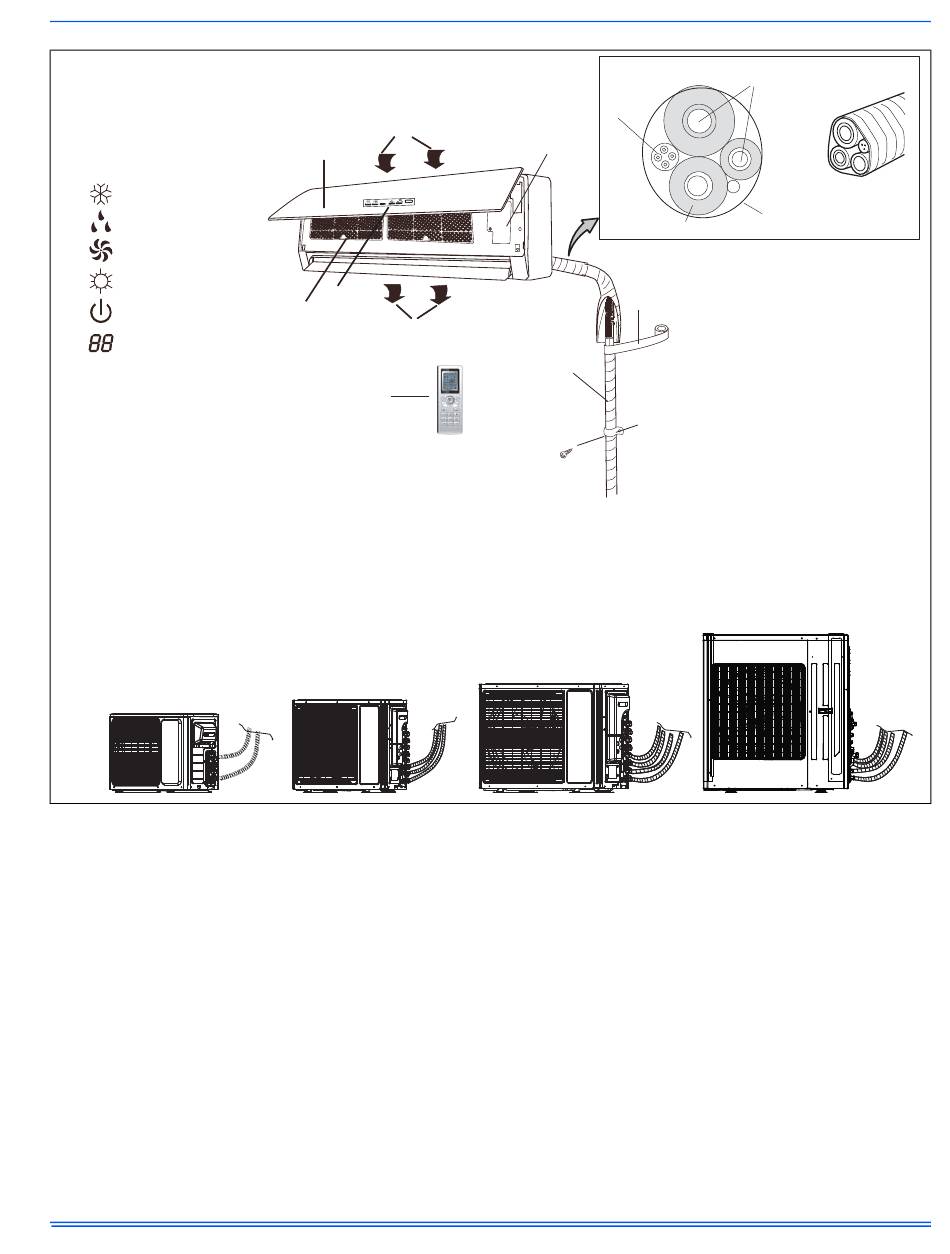

FIGURE 5: Typical System Components
Johnson Controls Unitary Products
RETURN AIR
B
INDOOR
UNIT
D
C
SUPPLY AIR
A
WIRELESS
CONTROL
24 KBTU OUTDOOR UNIT
(TWO TO THREE ZONES)
K
UTILITY
BUNDLE
REMOTE
30 KBTU OUTDOOR UNIT
(TWO TO FOUR ZONES)
E
G
TAPE
H
REFRIGERANT LINE SET, CONDENSATE LINE
AND INDOOR / OUTDOOR CABLE
F
IMPORTANT:
The refrigerant metering device for this
system is located in the outdoor unit.
This makes it necessary to insulate the
refrigerant lines individually to prevent
sweating.
42 KBTU OUTDOOR UNIT
(TWO TO FIVE ZONES)
898150-UIM-B-0113
7
