- Page 1 Quick Reference MRF101AN RF Essentials Kit Accelerate Your RF Amplifier Design with the Essential Components Kit...

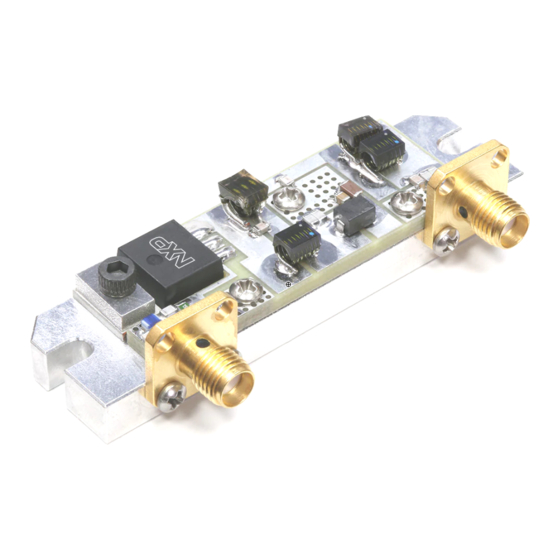

- Page 2 Quick Reference GET TO KNOW THE MRF101AN KIT Drain DC RF Output 47 kΩ Drain DC Gate Bias 2.5 kΩ Gate Bias D temp comp: 1N4148 (thermally coupled to Q1) RF Input Figure 1: MRF101AN Board Connections Figure 2: External Temperature...
- Page 3 www.nxp.com HOW TO GET STARTED If the fixture is a new build: 1. Check gate bias connection using an ohmmeter: it should read open circuit. 2. Check drain DC power terminal using an ohmmeter: short gate bias to ground and drain DC power terminal should read open circuit.
- Page 4 • Mount all SMT devices on PCB (device values are dependent on frequency of operation). • Make sure no solder blobs are on non-component side of board. • Trim leads of MRF101AN to shoulder. • Mount board onto baseplate. • Mount device using thermal grease, solder only after tightening device mounting screw.
