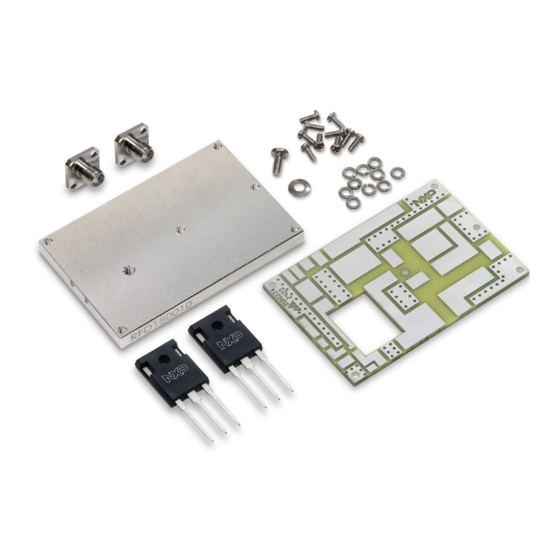

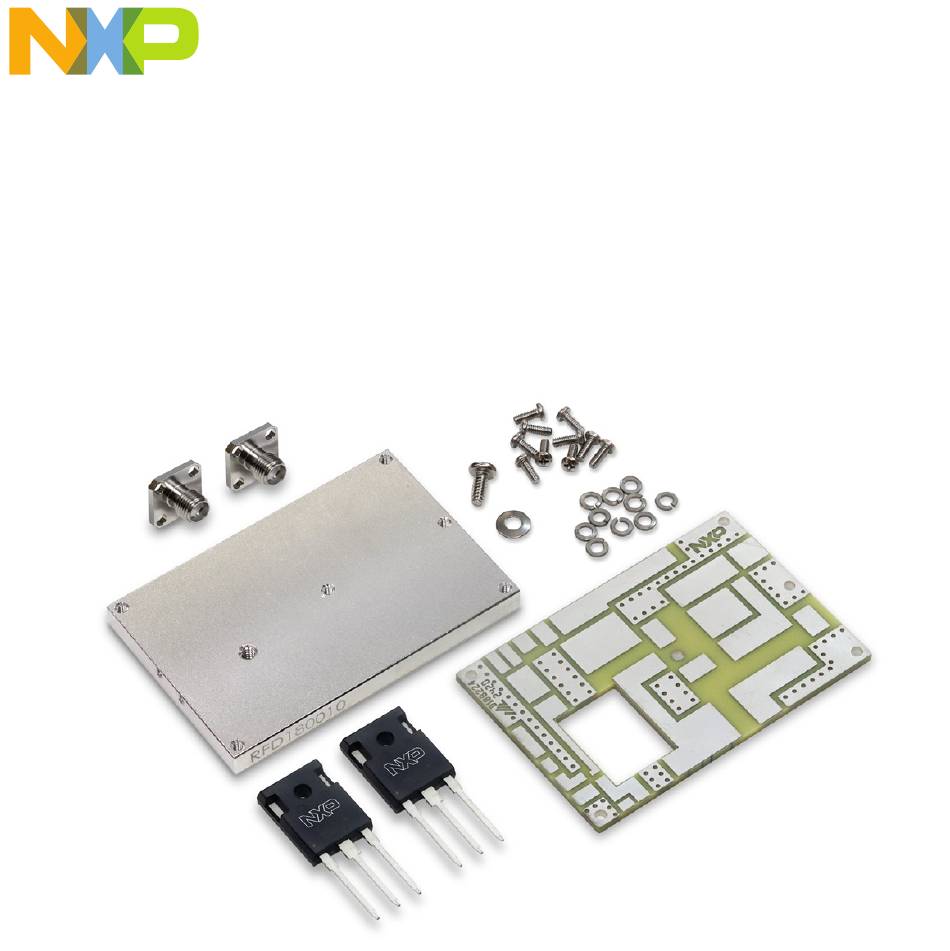

- Page 1 QUICK START GUIDE MRF300AN KIT MRF300AN ESSENTIALS KIT Accelerate your RF amplifier design with the MRF300AN RF Essentials Component Kit.
- Page 2 GET TO KNOW THE MRF300AN KIT Drain Voltage Ground R8 Potentiometer Alternatively, the jumper JP1 can be removed to supply an external gate voltage on the J1 connector Figure 1: MRF300AN Board Connections...
- Page 3 QUICK START GUIDE MRF300AN KIT HOW TO GET STARTED If the fixture is a new build: 1. Set gate bias to minimum by turning pot fully clockwise (12 turns). 2. Remove JP1 and check drain DC power terminal using an ohmmeter: DC power terminal should read a high impedance.
- Page 4 • Mount all SMT devices on PCB (device values are dependent on frequency of operation). • Make sure no solder blobs are on non-component side of board. • Trim leads of MRF300AN to shoulder. • Mount board onto baseplate. • Mount device using thermal grease, solder only after tightening device mounting screw.
