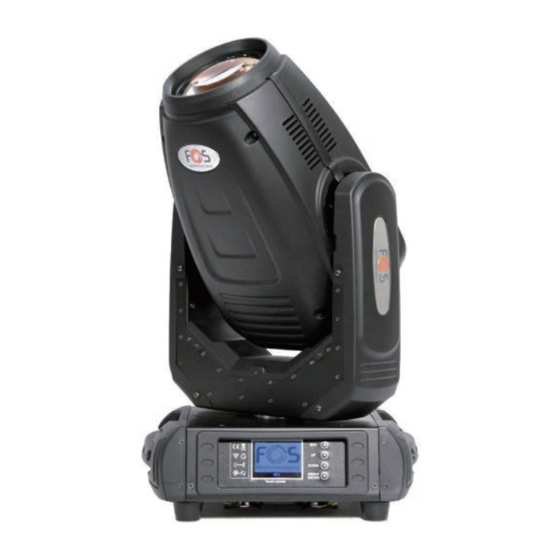

Summary of Contents for FOS Technologies 12R Hybrid PRO

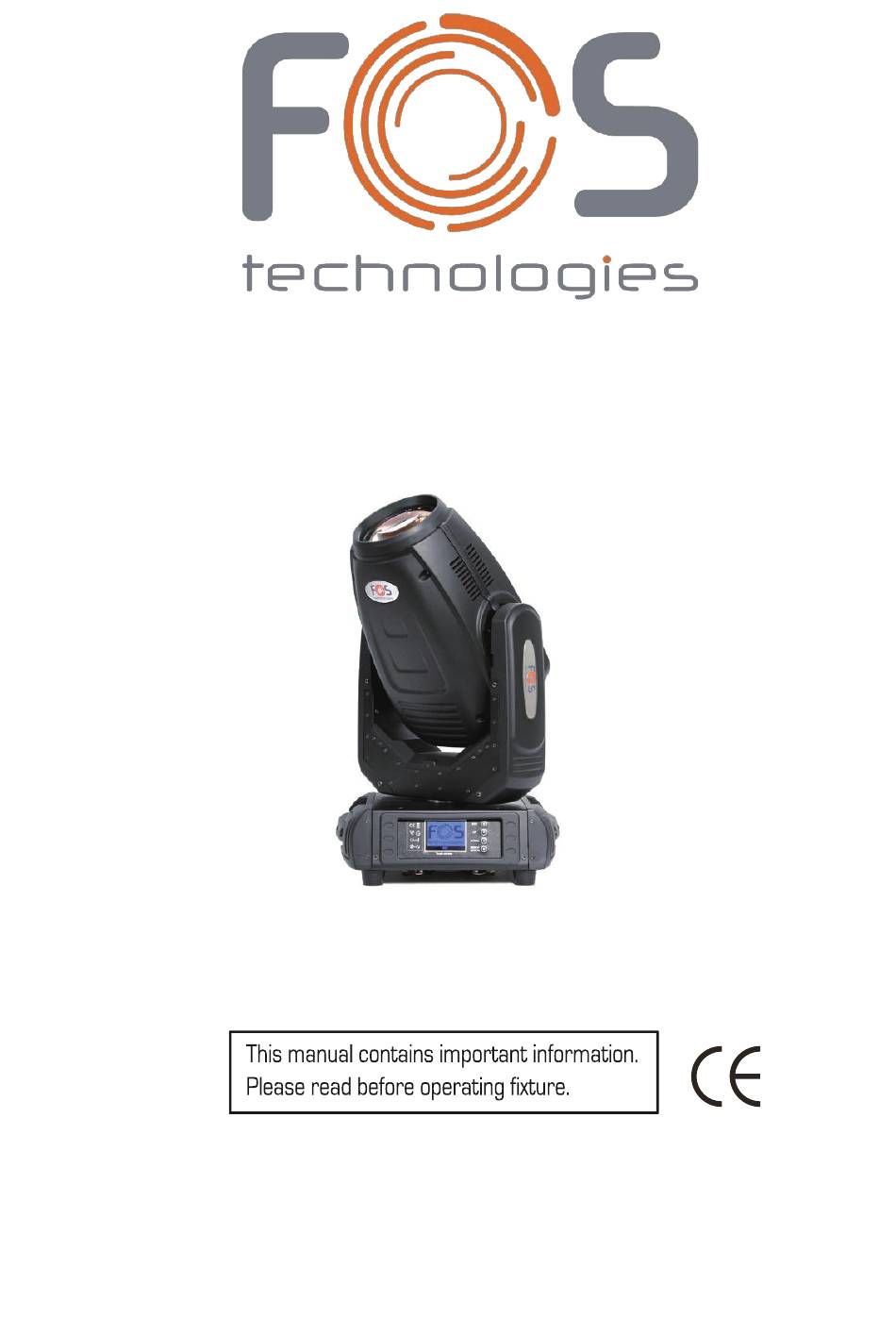

  • Page 1 FOS 12R Hybrid PRO User Manual...

  • Page 2: Table Of Contents

    CONTENTS Chapter 1 Installation and attention....................1 Maintenance........................1 Statement..........................1 Safety Instructions.......................1 Key features.........................1 Cable connection（DMX）....................2 Rigging (Optional)......................2 Chapter 2 Panel operation........................ 4 Brief.............................4 Operation..........................4 Operate light with touch or encoder button..............4 Parameter value setting....................4 Boolean parameter setting...................5 Sub Menu（Parameter）....................5 Operation and parameter instruction...................6...

  • Page 3: Chapter 1 Installation And Attention

    280W BEAM SPOT WASH 3-IN-1 MOVING HEAD Chapter 1 Installation and attention Maintenance To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.  Intermittently using will extend this item’s service life. ...

  • Page 4: Cable Connection（Dmx

    280W BEAM SPOT WASH 3-IN-1 MOVING HEAD Frost filter for wash  0-100% mechanical dimming, mechanical dimming and free dimming available.  strobe macro control available.  Beam angle: 3.8°-20°  Over heat protection  Power Input: 100-240V，50/60Hz  Power consumption：400W ...
  • Page 5 280W BEAM SPOT WASH 3-IN-1 MOVING HEAD Screws for clamping must be fixed firmly. Take one M12 screw (Grade 8.8 or higher) to  clamp bracket, and then screw the nuts. Level the two hanging points at the bottom of clamp. Insert fastener to the bottom, lock the ...

  • Page 6: Chapter 2 Panel Operation

    280W BEAM SPOT WASH 3-IN-1 MOVING HEAD Chapter 2 Panel operation Brief The light panel diagram show as Figure 3, Left area is TFT Display, support touch, and right area are menu buttons. Both of touch and coder buttons can be used for operation and setting. Display &...

  • Page 7: Boolean Parameter Setting

    280W BEAM SPOT WASH 3-IN-1 MOVING HEAD another way is roll encoder on the right hand side of panel. Apply value：When Value had been modified, Then press the bottom of ‘apply’ in the left  corner to apply to the light, but hav’t saved； Save Value：Any time, click on the lower right corner of the "OK"...

  • Page 8: Operation And Parameter Instruction

    280W BEAM SPOT WASH 3-IN-1 MOVING HEAD Operation and parameter instruction Via following operation, enter sub menu(parameter menu) shown in Figure 6 In main menu, click 1/6 function button into corresponding parameter menu.  In sub menu(page), click main item on the left side of displayer, can shift to corresponding ...

  • Page 9: Set Display

    280W BEAM SPOT WASH 3-IN-1 MOVING HEAD Figure 8 page of work mode Set display Light support 2 language, rotation display ， Enter page as shown in Figure9 to set parameter following: Language：Select display as simplified Chinese or English.  Screen Saver ：...

  • Page 10: Set Light Run Parameter

    280W BEAM SPOT WASH 3-IN-1 MOVING HEAD FOCUS: range for 0 to 255;  COLOR: range for 0 to 255;  GOBO: range for 0 to 255;  PRISM: range for 0 to 255;  FROST: range for 0 to 255;； ...

  • Page 11: Chapter 3 Channel Description

    280W BEAM SPOT WASH 3-IN-1 MOVING HEAD INFO Enter the page as shown in Figure 12: Show current run mode, address, version,fixture running time；  DMXClr: Click to clear all DMX data to ‘0’.  SysRst：Click to reset the light. ...

  • Page 12: Technical Specifications

    280W BEAM SPOT WASH 3-IN-1 MOVING HEAD 2 DMX modes: 24ch (Standard) and16ch (Simple), as shown in Table 1: Table 1 Channel brief Mode/Channel Name DMX Value Functions 0~255 Pan movement by 540 Pan Fine 0~255 Fine control of pan movement Tilt 0~255 Tilt movement by 270...
  • Page 13 280W BEAM SPOT WASH 3-IN-1 MOVING HEAD 139~143 Color 3 144~147 Color 4 148~152 Color 5 153~157 Color 6 158~161 Color 7 162~166 Color 8 167~171 Color9 172~176 Color 10 177~180 Color 11 181~185 Color 12 186~189 Color 13 190~215 Forwards rainbow effect from fast to slow 216~217 Stop, white...
  • Page 14 280W BEAM SPOT WASH 3-IN-1 MOVING HEAD 168~175 Gobo 11 Shake（Slow to fast) 176~183 Gobo 12 Shake（Slow to fast) 184~191 Gobo 13 Shake（Slow to fast) 192~199 Gobo 14 Shake（Slow to fast) 200~201 Beam/open 202~221 Forwards gobo rainbow from slow to fast 222~223 stop 224~243...
  • Page 15 280W BEAM SPOT WASH 3-IN-1 MOVING HEAD 138~145 Gobo 2 Shake (slow to fast) 146~153 Gobo 3 Shake (slow to fast) 154~161 Gobo 4 Shake (slow to fast) 162~169 Gobo 5 Shake (slow to fast) 170~177 Gobo 6 Shake (slow to fast) 178~185 Gobo 7 Shake (slow to fast) 186~193...
  • Page 16 280W BEAM SPOT WASH 3-IN-1 MOVING HEAD Prism Indexing 0~255 0~200° Prism rotating No rotation Rot.Prism 1~127 Forwards Prism rotation from fast to slow 128~129 No rotation 130~255 Backwards Prism rotation from slow to fast 0~64 No function Frost 65~255 Frost 0~255 Zoom from 100% to 0...
