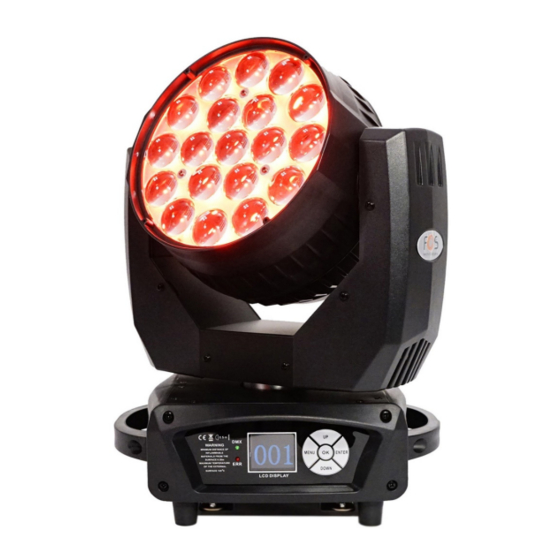

FOS Wash LED Quad III
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wash LED Quad III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FOS Technologies Wash LED Quad III

Summary of Contents for FOS Technologies Wash LED Quad III

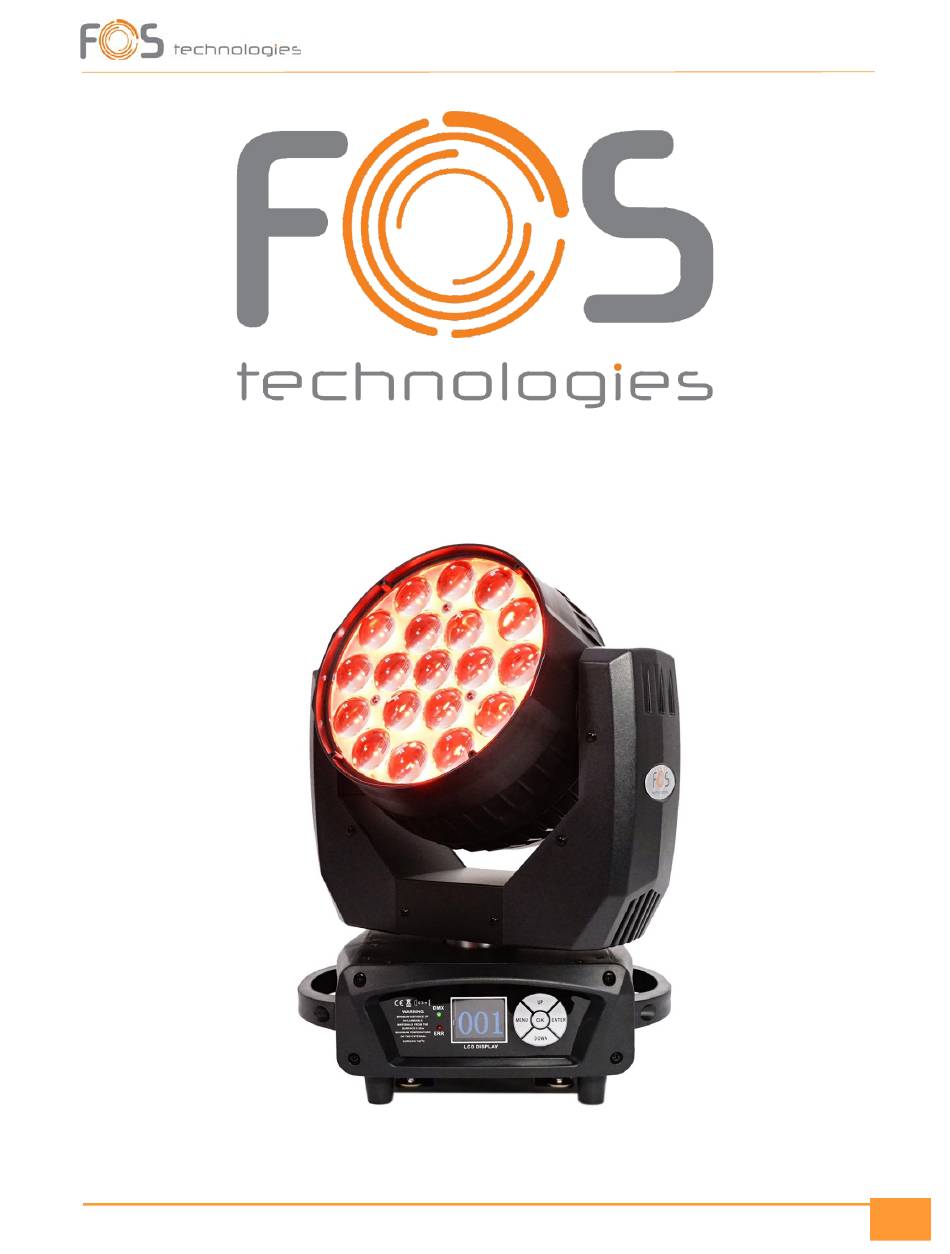

  • Page 1 FOS Wash LED Quad III...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATION Voltage: 100/240 Volt AC, 50/60 Hz. Light Source: 19x 15 Watt RGBW, divided in to 3 sections for independent control. Beam angle: 8° - 50°. Control: DMX512, Sound, Auto, Master/Slave. DMX Channels: 16 or 24. Protection Class: IP20 (for indoor use only). Width: 200 mm Depth: 220 mm Height: 380 mm...

  • Page 3: Temporary Use

    whether encapsulation and harmful effect! There can be housing that is not capsuled completely but still avoids harmful effect of solids or water. PROTECTION EXAMPLES: IP20: Protection against intruding objects >12,5mm „Finger protected “; No waterproofing. TYPICAL PROTECTION FOR INDOOR USE FIXTURES IP33: Protection against intruding objects >2,5mm;...

  • Page 4: Installation

    With the Up / Down buttons, you are moving through menu’s choices, pressing Enter, you are entering the sub menu of the option you have chosen, with the Up / Down buttons you’re moving FOS Wash LED Quad III through the sub menu’s options, with Enter, you are confirming your choice. The...

  • Page 5: Channel Modes

    Reset Channel Modes 16 Channels 1. Pan 2. Pan Fine 3. Tilt 4. Tilt Fine 5. Pan / Tilt Speed 6. Dimmer 7. Shutter: 0 – 3 Shutter Open • • 4 – 95 Strobe 96 - 176 Random Strobe •...
  • Page 6 • 200 – 255 Sound Activated 16. Reset: 0 – 250 No Function • 251 – 255 Reset after 3 seconds • 24 Channels 1. Pan 2. Pan Fine 3. Tilt 4. Tilt Fine 5. Pan / Tilt Speed 6. Zoom 7.

  • Page 7: Photometric Data

    22. Effect Speed 23. Macros: 0 – 49 DMX Mode • 50 – 99 Built In effects (Channel 13) • • 100 – 149 Auto Run 1 • 150 – 199 Auto Run 2 200 – 255 Sound Activated • 24.

  • Page 8: General Troubleshooting

    Always disconnect the fixture from main power before replacing a fuse. Use only the appropriate fuse, with the same type and rating. A fuse with different rating, can damage the fixture in case of failure. Risk of electric shock and / or fire: The fixture must be earthed, supplied always with its nominal voltage and cleaned periodically from dust.
