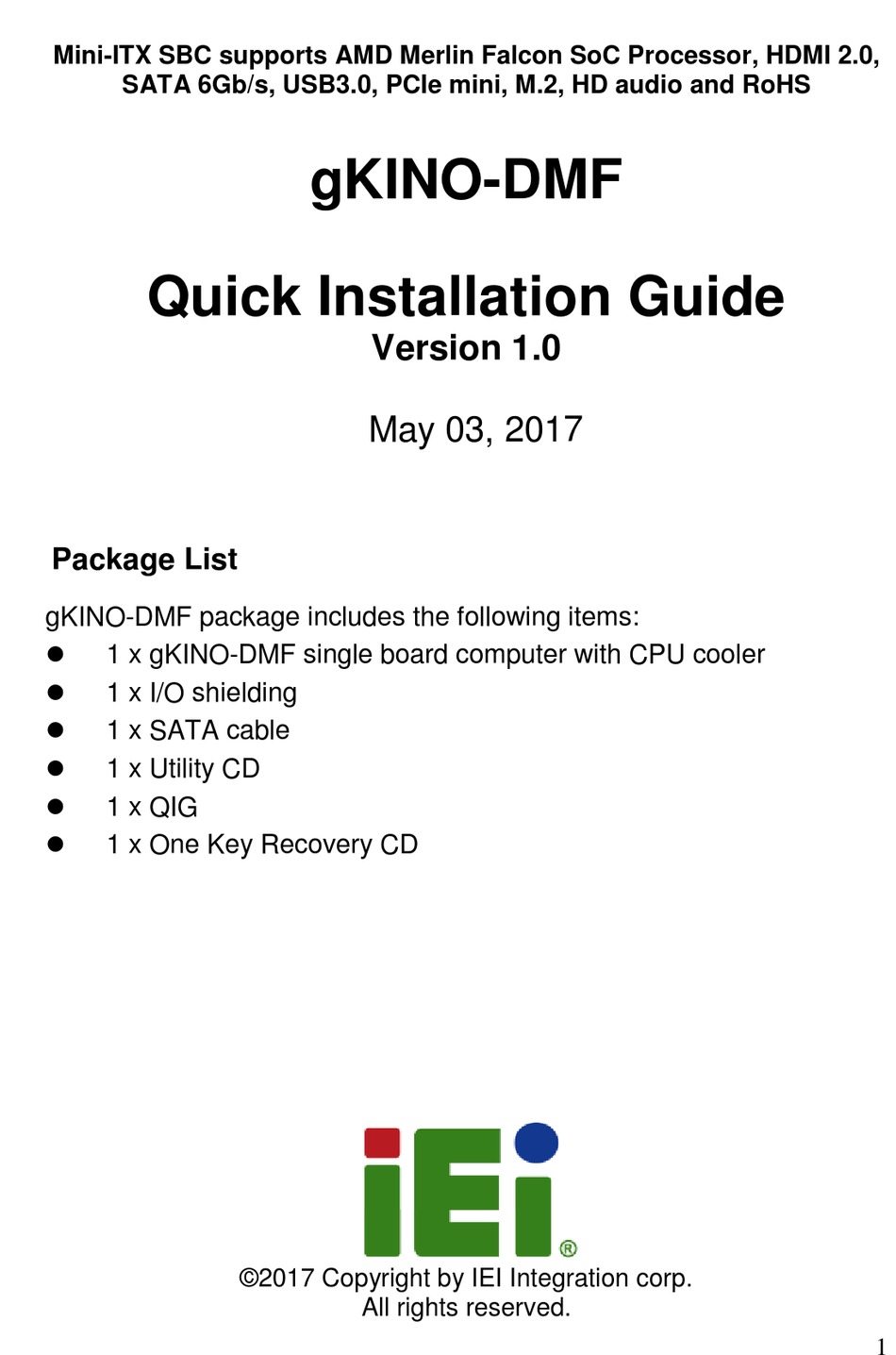

Mini-ITX SBC supports AMD Merlin Falcon SoC Processor, HDMI 2.0,
SATA 6Gb/s, USB3.0, PCIe mini, M.2, HD audio and RoHS
Quick Installation Guide
Package List
gKINO-DMF package includes the following items:
1 x gKINO-DMF single board computer with CPU cooler
1 x I/O shielding
1 x SATA cable
1 x Utility CD
1 x QIG
1 x One Key Recovery CD
gKINO-DMF
Version 1.0
May 03, 2017
©2017 Copyright by IEI Integration corp.
All rights reserved.
1
Advertisement
Related Manuals for IEI Technology gKINO-DMF Series
Summary of Contents for IEI Technology gKINO-DMF Series
- Page 1 Mini-ITX SBC supports AMD Merlin Falcon SoC Processor, HDMI 2.0, SATA 6Gb/s, USB3.0, PCIe mini, M.2, HD audio and RoHS gKINO-DMF Quick Installation Guide Version 1.0 May 03, 2017 Package List gKINO-DMF package includes the following items: 1 x gKINO-DMF single board computer with CPU cooler ...
- Page 2 Specifications SoC: FP4 BGA supports AMD Merlin Falcon SoC RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W) RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W) BIOS: AMI BIOS Memory: Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB ...
- Page 3 Realtek ALC662 HD audio codec 2 x Audio jacks (line-out, mic-in) on rear IO 1 x Front audio (2x5-pin) Front Panel: 1 x Front panel (2x7 pin, power LED, HDD LED, speaker, power button, reset button) LAN LED: 2 x LAN LED (1x2 pin) ...
-
Page 4: Ordering Information
Ordering Information gKINO-DMF-421-R10: Mini-ITX SBC supports AMD RX-421BD on board SoC (quad- core 2.1GHz, 35W), DDR4 ,triple independent displays,HDMI/ DP, dual GbE, SATA 6Gb/s, USB3.0, PCIe mini, M.2,HD audio and RoHS gKINO-DMF-216-R10: Mini-ITX SBC supports AMD RX-216GD on board SoC (dual- core 1.6GHz, 15W), DDR4 ,triple independent displays, HDMI/ DP, dual GbE, SATA 6Gb/s, USB3.0, PCIe mini, M.2, HD audio and RoHS... -
Page 5: Jumpers Setting And Connectors
Jumpers setting and connectors LABEL FUNCTION J_ATX_AT1 AT/ATX Power Mode Setting J_CMOS1 Clear CMOS Setup MSATA_SW1 SATA/M.2 B Key Function Selection CPU_FAN1 CPU Fan Connector CPU12V1 12V Power Connector POWER_IN1 12V Power Connector AUDIO_CV1 Audio Line-In/Out MIC Connector FRONT-PANEL1 Audio Source Connector CHASSIS1 Chassis Status Connector DIMMA_1, DIMMB_1... - Page 6 J_ATX_AT1: AT/ATX Power Mode Setting PIN NO. DESCRIPTION Short 1-2 (Right) ATX Power Mode (default) Short 2-3 (Left) AT Power Mode J_CMOS1: Clear CMOS Setup PIN NO. DESCRIPTION Keep CMOS Setup (Normal Operation) Press button Clear CMOS Setup MSATA_SW1: SATA/M.2 B Key Function Selection PIN NO.
- Page 7 HDMI_CN1, HDMI_CN2: HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2 HDMI_DATA2# HDMI_SCL HDMI_DATA1 HDMI_SDA HDMI_DATA1# HDMI_DATA0 HDMI_HPD HDMI_GND HDMI_DATA0# HDMI_GND HDMI_CLK HDMI_GND HDMI_GND HDMI_CLK# DP1: Internal Display Port Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION AUXP LANE1N AUXN LANE1P LANE2P LANE3N LANE2N...
- Page 8 LAN1_USB1, LAN2_USB2: Ethernet and USB 3.0 connectors USB1, USB2: External USB 3.0 connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ USB3_RX- USB3_RX- USB3_RX+ USB3_ RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ LAN1, LAN2: RJ45 LAN connectors PIN NO. DESCRIPTION PIN NO.
- Page 9 COM1, COM2: Internal RS-232 Serial Port Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION COM5,COM6: Internal RS-232/RS-422/RS-485 Serial Port Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION RS422 Pin define(device) RS485 Pin define(device) RS232 Pin define(device) TX-(TXD422#) TX-(TXD485#) DCD(1) TX+(TXD422+) TX+(TXD485+) DSR(6) SIN(2) RTS(7) RX+(RXD422+)
- Page 10 FRONT-PANEL1: Audio Source Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LMIC2-L AUD_GND LMIC2-R PRESENCE# LLINE2-R MIC2-JD FRONT-IO LLINE2-L LINE2-JD S_ATA1, S_ATA2: Serial ATA 3.0 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_RX- SATA_TX+ SATA RX+ SATA_TX-...
- Page 11 MPCIE1: Mini PCI-E Card connector DESCRIPTION DESCRIPTION PCIE_WAKE# +3.3V 1.5V MSATA_CLK# MSATA _CLK PLTRST_N +3.3V PLTRST_N MINI_RXN +3.3V MINI_RXP 1.5V SMB_CLK MINI_TXN SMB_DATA MINI_TXP USB_DATA- USB_DATA+ +3.3V +3.3V +3.3V CLINK_CLK CLINK_DATA 1.5V CLINK_RST# MSATA_DET +3.3V CPU_FAN1, SYS_FAN1: Fan Connectors PIN NO. DESCRIPTION PIN NO.
- Page 12 DIO1: Digital Input / Output Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 CPU12V1: 12V Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION POWER_IN1: 12V Power Connector PIN NO.
- Page 13 JSPI_BIOS_1: Flash SPI ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +1.8V SPI_CS# SPI_SO SPI_CLK SPI_SI JSPI2: Flash EC ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +1.8V SPI_CS# SPI_SO SPI_CLK SPI_SI SMB1: SMBUS Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_DATA SMB_CLK...
- Page 14 Board Layout: Jumper and Connector Locations (Unit: mm)
