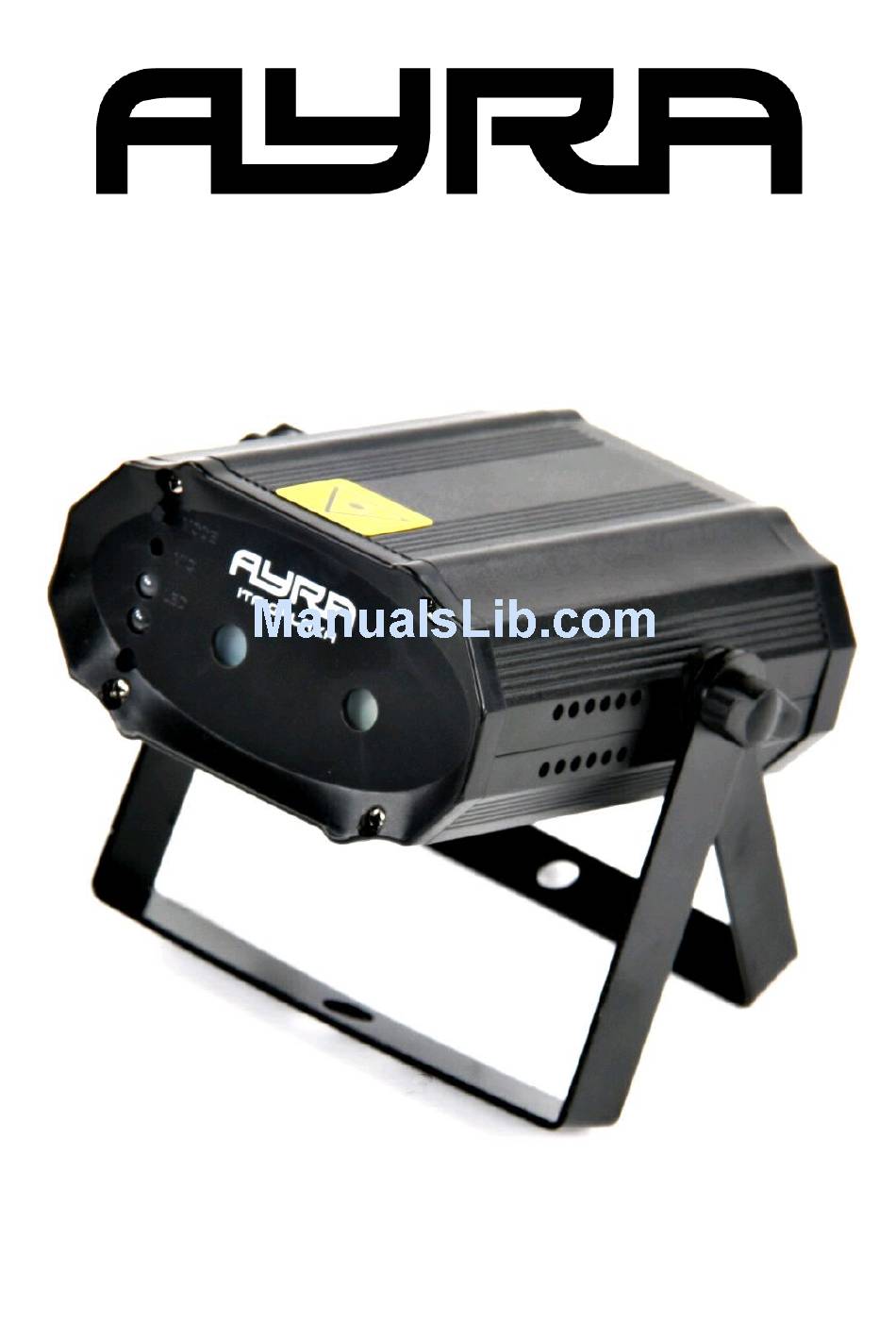

- Page 1 ITA compact series Decorative laser with wireless remote User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 17-12-2013 RV Revision date + author initials: 18-02-2014 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
- Page 4 Guidelines for laser devices Laser diode guidelines: WARNING! This device emits powerful laser beams! Do not look directly in the laser beam to avoid possible permanent injury to eyes and skin! This is a class 3B laser product. - This device is a professional show and entertainment laser product. The device emits laser beams with a wavelength spectrum between 400 and 700 nm.
-
Page 5: Box Contents
Box contents Box contents 1x Ayra ITA compact series laser (ITA Galaxa, ITA Shine Star, ITA Gobo Star) 1x power adapter 1x wireless remote control 1x battery Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 6: Device Overview
Device overview A. Mode switch (to change the operating mode without remote control) B. Internal microphone for the music-controlled mode C. Red/green LED, status indicator D. Blue LED, remote code indicator light E. Key switch for remote key removal (Do not use unless you wish to remove the wireless code from the system! For more information, consult the chapter about the remote control function in this manual) F. -
Page 7: Setting Up The Device
Setting up the device To activate the unit, connect the included power supply with the unit and a suitable 230V, 50 Hz power outlet. The unit will activate directly after it is plugged in to a wall outlet or other power source, unless the Slow/Fast knob is turned to the OFF-position. - Page 8 Try to operate the laser after these steps. When successful, the laser will follow the selected commands on your remote control. - Laser diodes are very temperature sensitive. It is therefore possible that a lack of output or any flickering is noticeable when using the laser in cold environments.
-
Page 9: Troubleshooting
Troubleshooting If you have any problems with this laser device, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions. -
Page 10: Technical Specifications
Technical specifications - compact laser device with grating technology - two laser diodes, two outputs - green 30mW laserdiode - red 100mW laserdiode - diffraction (grating) lens, dividing the laser beams into hundreds of small individual beams - rotating lens and cross-star autorotation effects - music controlled and automatic working mode - music controlled mode with internal microphone - automatic working mode with continuous rotation and flashing diodes...
