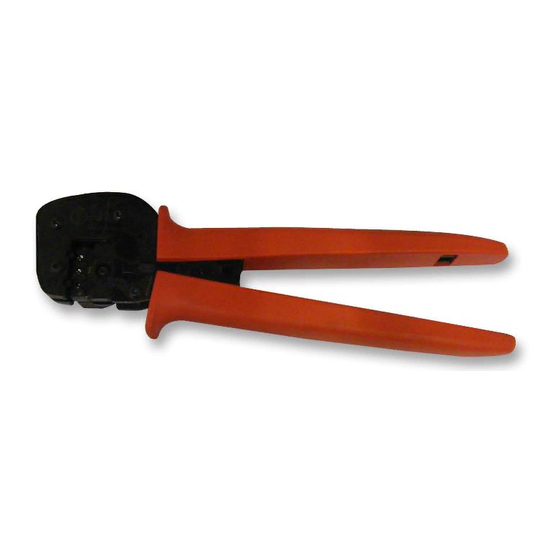

Hand Crimp Tool for Contact Pin Crimp Terminals
FEATURES
Œ
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Ergonomic soft grip handles for comfortable crimping
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is IPC/WHMA-A-620 Class 2 (except as noted) and RoHS compliant
SCOPE
Products: Contact Pin Crimp Terminals, 14-18 AWG.
Terminal Series No.
84590
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB

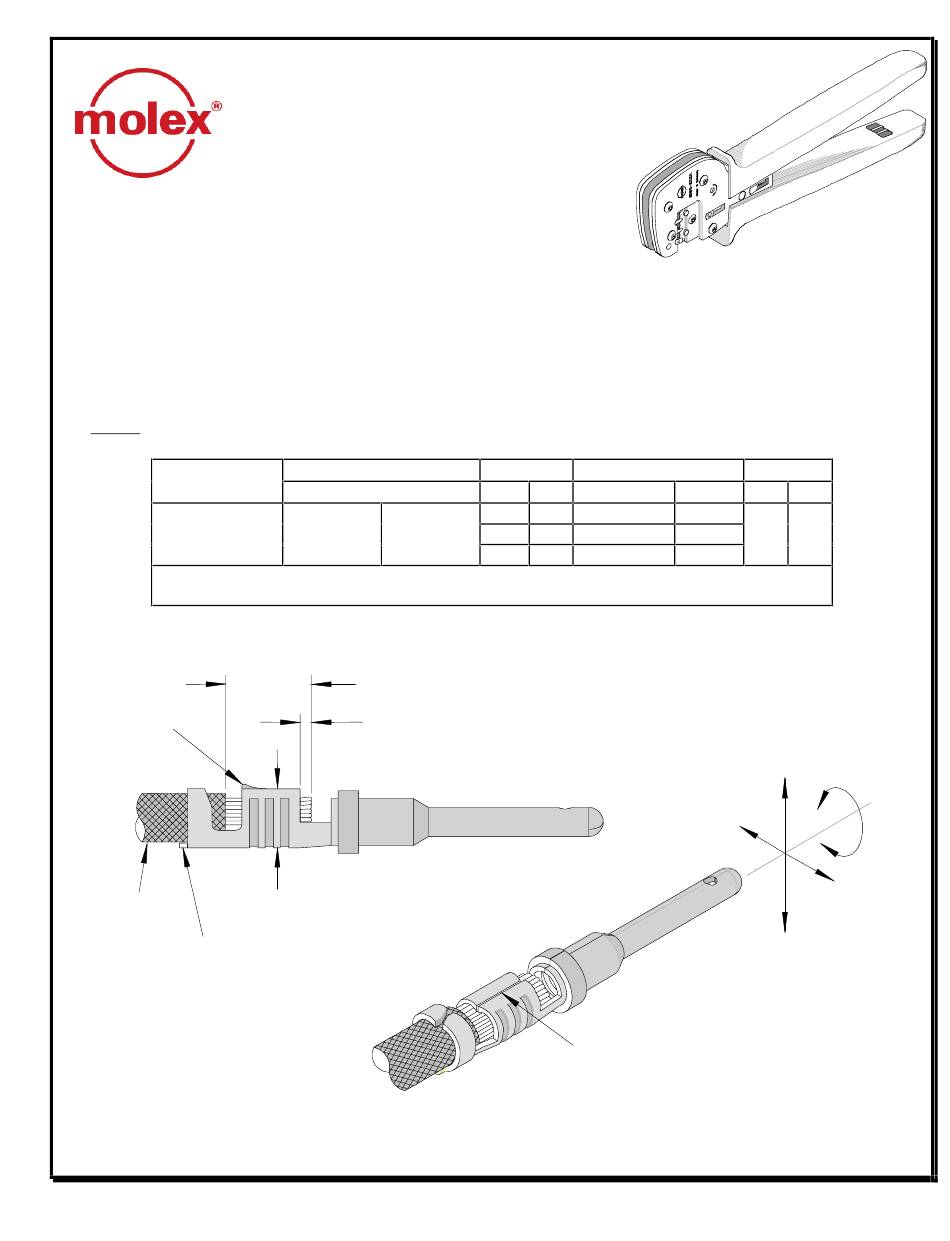

Doc No. ATS-638115600
Revision: D
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-5600
Terminal Order No.
Æ
Available in Reel form only
Æ
Æ
84590-0022
84590-0029
Æ
Æ
84590-0023
84590-0037
Æ
Æ
84590-0028
84590-0038
Æ
Follow the Cut-Off Tab specifications on Applicator specification sheets.
ÆÆ
IPC/WHMA-A-620 Class 2 only 3.05-3.40mm (.120-.134")
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Release Date: 01-18-07
Revision Date: 01-18-07
Wire Size
Insulation Diameter
AWG
mm²
mm
ÆÆ
14
2.09
3.05-3.81
16
1.33
2.41-3.05
18
0.82
1.91-2.41
SEAM
UNCONTROLLED COPY
TYPE 4C
Strip Length
in
mm
in
.120-.150
4.45
.175
.095-.120
.075-.095
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
