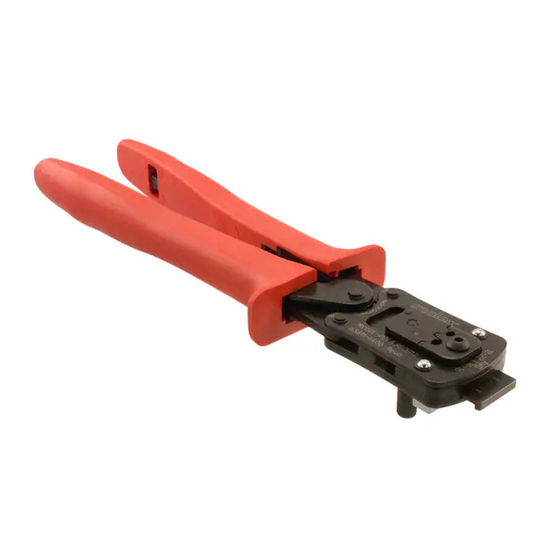

Hand Crimp Tool for MX150L™ Crimp Terminals
Modular Crimp Head
Order No. 63811-4470
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: MX150L™ Crimp Terminals, 14-22 AWG.
Terminal
Series No.
Loose
19417-0047 19417-0053 19417-0011 19417-0029
19417-0049
19417-0051
19417
19417-0048 19417-0054 19417-0024 19417-0030
19417-0050
19417-0052
19420-0009
19420-0011
19420
19420-0010
19420-0012
Doc No: ATS-6381144HM
Revision: E
Application Tooling
Specification Sheet
Terminal Order No.
Reel
19417-0025 19417-0031
19417-0027 19417-0033
19417-0026 19417-0032
19417-0028 19417-0034
19420-0001 19420-0007
19420-0003
19420-0002 19420-0008
19420-0004
Release Date: 04-05-04
Revision Date: 07-20-10
Insulation Diameter
Wire Size
Maximum
AWG
mm²
mm
14-16 2.00-1.27 2.87-3.53 .113-.139 4.20-5.00 .165-.197
18-22 0.83-0.36 2.36-2.74 .093-.108 4.20-5.00 .165-.197
14-16 2.00-1.27 2.87-3.53 .113-.139 4.20-5.00 .165-.197
18-22 0.83-0.36 2.36-2.74 .093-.108 4.20-5.00 .165-.197
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63811-4400
Strip Length
In.
mm
In.
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63811-4400
Summary of Contents for molex 63811-4400

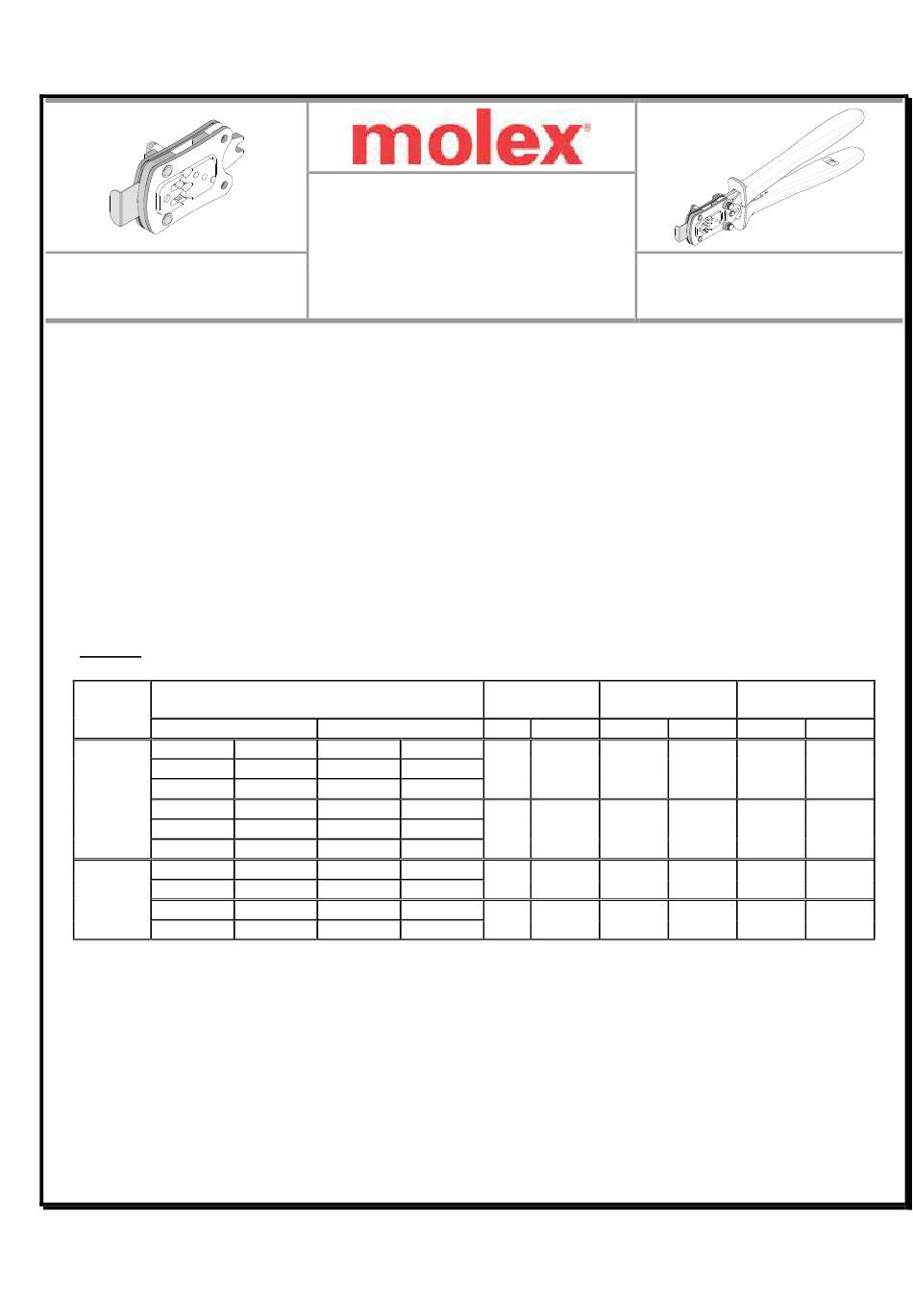

- Page 1 Application Tooling Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63811-4470 Order No. 63811-4400 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,...
- Page 2 Hand Crimp Tool for MX150L™ Crimp Terminals BEND UP DEFINITION OF TERMS ROLLING CONDUCTOR BRUSH BELL MOUTH CRIMP INSULATION CRIMP TWISTING STRIP BEND LENGTH DOWN CRIMP HEIGHT The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
- Page 3 Hand Crimp Tool for MX150L™ Crimp Terminals Crimping Terminals 1. Select the proper locator on the locator assembly for the proper terminal. The female locator is gray and is marked with an “F”. The WIRE STOP BLADE male locator is black and is marked with an “M”. 2.
- Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 5 Hand Crimp Tool for MX150L™ Crimp Terminals Applications for the Modular Crimp Head WARNING: NEVER operate, service, install, or adjust this Modular Crimp Head without proper instruction and without first reading and understanding the instructions in the proper Manual or Specification Sheet. See Chart below for the correct Manual or Specification Sheet.
- Page 6 Hand Crimp Tool for MX150L™ Crimp Terminals PARTS LIST Hand Crimp Tool 63811-4400 Item Order Number Description Quantity 63811-4470 Modular Crimp Head 1 (Ref) 63816-0050 Hand Crimp Frame (Long) 1 (Ref) 63811-4475 Locator 63816-0001 Locking Pin 63600-0525 Handle Spring 63600-0520...
