Connecting the peripheral

APCI-3003

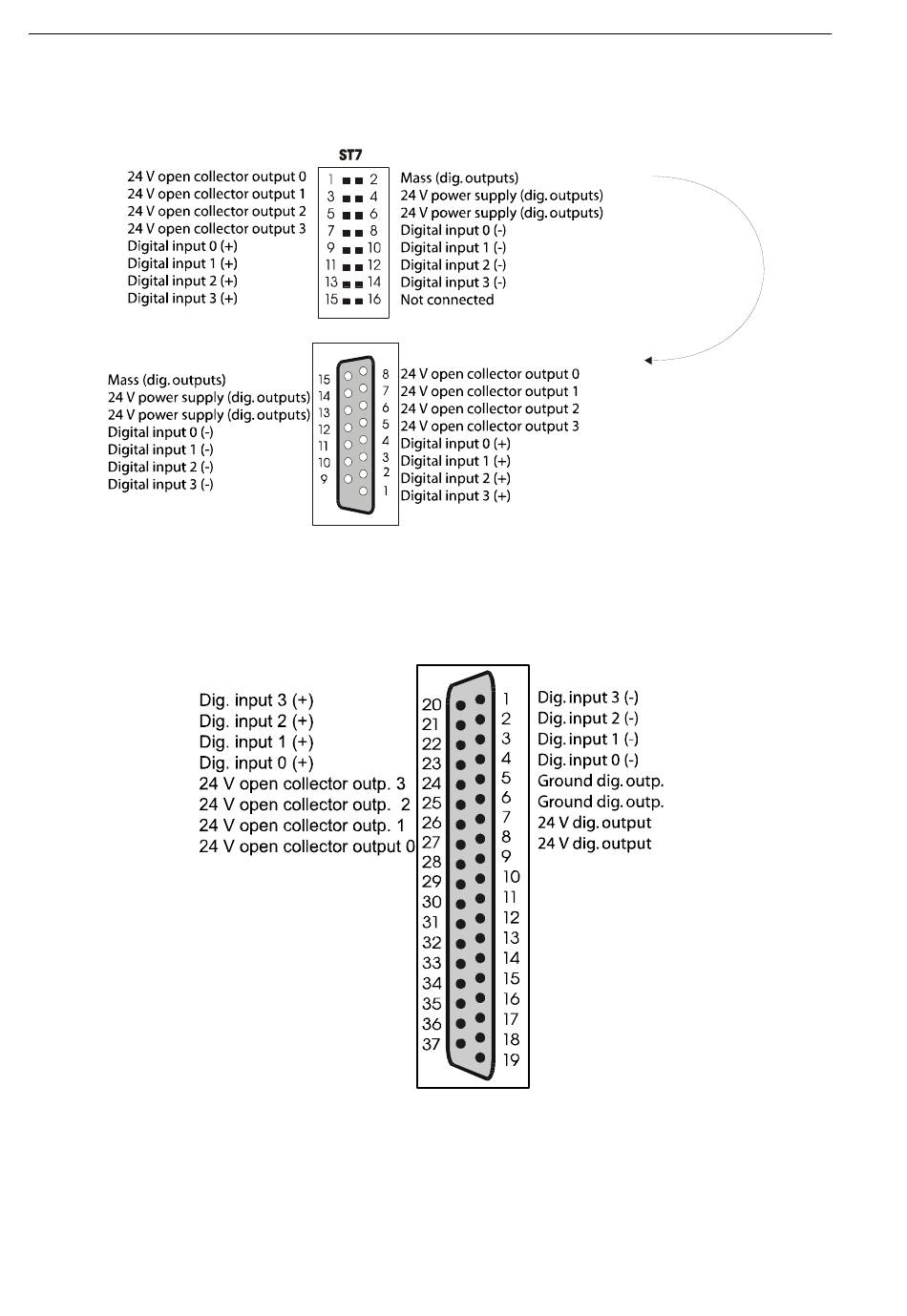

Fig. 7-3: 16-pin connector on a 15-pin SUB-D female connector

Fig. 7-4: Digital inputs and outputs at the PX 901-ZG
