Advantech PCI-1723 Startup Manual

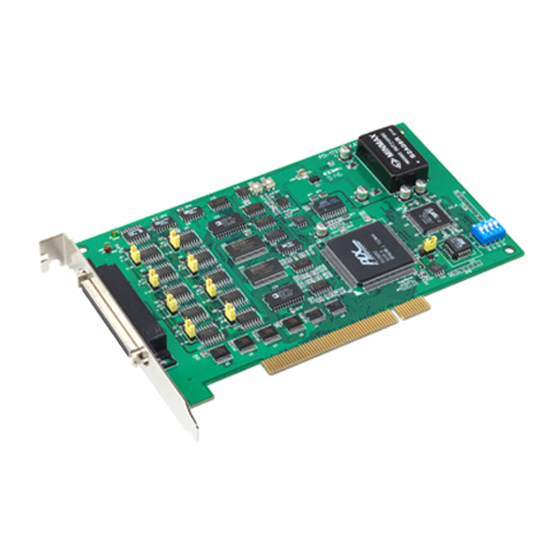

PCI-1723 16-bit, 8-ch Analog Output PCI Card with
16-ch Digital I/O
Startup Manual
Packing List
Before card installation, please ensure that the following
items are included in your shipment:
1. 1 x PCI-1723 card
2. 1 x Startup manual
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
User Manual
For more detailed information regarding this product, please
download the PCI-1723 user manual from the Advantech
website.
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in
a residential area is likely to cause interference. In such
cases, users are required to correct the interference at their
own expense.
CE
This product has passed the CE test for environmental
specifications when shielded cables are used for external
wiring. We recommend using shielded cables. Such cables
are available from Advantech. Please contact your local
supplier for ordering information.
For more information about this or other Advantech
products, please visit our website at
http://www.advantech.com
For technical support services, please visit our support
website at
http://support.advantech.com
This manual is for PCI-1723.
Part No. 2003172321 Edition 2
December 2019
Specifications
Analog Output
Channels 8
Resolution 16 bits
Voltage output
-10 ~ +10 V
range
Current output
0~20mA , 4~20mA
range
Gain Error
Voltage Output
Accuracy
Offset Error < ±6 LSB
Gain Error
Current Output
Accuracy
Offset Error
Driving
5 mA max.
Capacity
Settling time 100 µs (to ±6 LSB of FSR)
Digital Input /Output
Input Channels 16 (bi-directional)
Number of ports 2
Low: 0.8 V max.
Input Voltage
High: 2.0 V min.
Low: 0.5 V max. @ +24 mA (sink)
Output Voltage High: 2.0 V min. @ -15 mA
(source)
General
I/O Connector
68-pin SCSI-II female
Type
Dimensions 168 × 99 mm
Typical
Power
Consumption
Max
Operating
Temperature
Storage
Operating
Relative
Humidity
Storage
Form Factor PCI
< ±6 LSB
<±0.1% of FSR (after manual
calibration),
<±3% of FSR (without manual
calibration)
<±0.1% of FSR (after manual
calibration),
<±3% of FSR (without manual
calibration)
(6.6 × 3.9 in. )
2 2
+5 V @ 400mA
+5 V @ 820mA
0 ~ 60 °C (32 ~ 158 °F)
-40 ~ 70 °C (-40 ~ 185 °F)
10 to 90% RH,
non-condensing
5 ~ 95% RH
non-condensing
PCI-1723 Startup Manual 1
