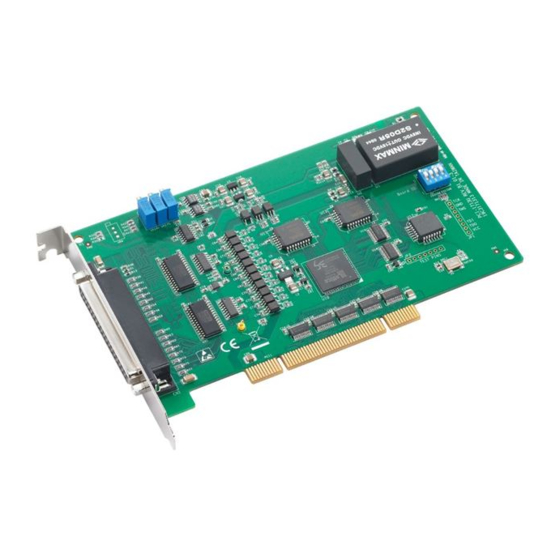

PCI-1713
32-ch Isolated Analog Input Card
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI-1713 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech PCI-1713

Summary of Contents for Advantech PCI-1713

  • Page 1 PCI-1713 32-ch Isolated Analog Input Card User Manual...
  • Page 2 No part of this man- ual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reli- able.
  • Page 3 Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or...

  • Page 4: Declaration Of Conformity

    This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
  • Page 5 Safety Instructions Read these safety instructions carefully. Keep this User's Manual for later reference. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for clean- ing. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 6 The sound pressure level at the operator's position according to IEC 704- 1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. PCI-1713 User Manual...

  • Page 7: Table Of Contents

    Contents Chapter 1 Overview ............2 Introduction ............... 2 Features ................3 Specifications ..............3 Block Diagram ..............5 Chapter 2 Installation ............8 Initial Inspection..............8 Unpacking ................. 8 Installation Instructions ............. 9 Chapter 3 Signal Connections ........12 Overview .................
  • Page 8 PCI-1713 User Manual viii...
  • Page 9 Overview Sections include: • Introduction • Features • Specifications • Block Diagram...

  • Page 10: Chapter 1 Overview

    Chapter 1 Overview 1.1 Introduction The PCI-1713 is a 12-bit 32-channel analog input card for the PCI bus. It provides 32 analog input channels with a sampling rate up to 100k sam- ples/s, 12-bit resolution and isolation protection of 2500 VDC.

  • Page 11: Features

    Satisfies the Need for Isolation Protection The PCI-1713 provides optical isolation protection of 2500 VDC between the inputs and the PC bus to protect the PC and peripherals from damage due to high voltages on the input lines. It is ideal for the situa- tions where budget-conscious users require flexibility, stability and a high level of isolation protection for their data acquisition system.
  • Page 12 • Operating temperature: 0 ~ +60 °C (32 ~ 140 °F) • Storage temperature: -20 ~ +70 °C (-4 ~ 158 °F) • Operating humidity: 5 ~ 95%RH non-condensing • MTBF: over 85,310 hrs @ 25 °C, grounded, fixed environment PCI-1713 User Manual...

  • Page 13: Block Diagram

    1.4 Block Diagram Chapter 1...
  • Page 14 PCI-1713 User Manual...
  • Page 15 Installation Sections include: • Initial Inspection • Unpacking • Installation Instructions...

  • Page 16: Chapter 2 Installation

    It should be free of marks and in perfect order upon receipt. As you unpack the PCI-1713, check it for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or fails to meet specifications, notify our service department or your local sales represen- tative immediately.

  • Page 17: Installation Instructions

    Save the screw to secure the interface card retaining bracket. 5. Carefully grasp the upper edge of the PCI-1713. Align the hole in the retaining bracket with the hole on the expansion slot and align the gold striped edge connector with the expansion slot socket.
  • Page 18 PCI-1713 User Manual...
  • Page 19 Signal Connections Sections include: • Overview • I/O Connector • Analog Input Connections • Field Wiring Considerations...

  • Page 20: Chapter 3 Signal Connections

    PCI-1713 card via the I/O connector. 3.2 I/O Connector The I/O connector for the PCI-1713 card is a 37-pin D-type connector which you can connect to 37-pin D-type accessories with Advantech's PCL-10137 cable.

  • Page 21: Figure 3.1:I/O Connector Pin Assignments

    Figure 3.1: I/O Connector Pin Assignments Chapter 3...

  • Page 22: Analog Input Connections

    A signal source without a local ground is also called a “floating source”. It is fairly simple to connect a single-ended channel to a floating signal source. In this mode, the PCI-1713 card provides a reference ground for external floating signal sources.

  • Page 23: Figure 3.3:Differential Input Ch. - Grounded

    If one side of the signal source is connected to a local ground, the signal source is ground-referenced. The ground of the signal source and the ground of the PCI-1713 will not be at exactly the same voltage, as they are connected through the ground return of the equipment and building wiring.

  • Page 24: Figure 3.4:Differential Input Ch. - Floating

    You must therefore reference the signal source to the AIGND. Figure 3-4 shows a differential channel connection between a floating signal source and an input channel on the PCI-1713 card. In this figure, each side of the floating signal source is connected through a resistor to the AIGND.

  • Page 25: Field Wiring Considerations

    • Keep a reasonable distance between high-voltage (or high-current) lines and signal cables connected to the PCI-1713 card if the cables run parallel, or route signal cables at right angles to high voltage/ current cables. Chapter 3...
  • Page 26 PCI-1713 User Manual...
  • Page 27 Calibration Sections include: • Introduction • VR Assignments • A/D Calibration...

  • Page 28: Chapter 4 Calibration

    To assist users in the A/D calibra- tion process, we provide one calibration program, ADCAL.EXE, on the PCI-1713 software CD-ROM. The ADCAL.EXE program makes A/D calibrations easy. It leads you through the calibration and setup procedure with a variety of prompts and graphic displays, showing you all of the correct settings and adjustments.

  • Page 29: A/D Calibration

    The following list shows the function of each VR: Function VR1 A/D full scale (gain) VR2 A/D bipolar offset VR3 A/D unipolar offset VR4 PGIA initial offset TP1 PGIA output 4.3 A/D Calibration Regular and accurate calibration procedures ensure the maximum possi- ble accuracy.
  • Page 30 A/D code Mapping Voltage Unipolar 0 to Hex. Dec. Bipolar ±5V 000h -4.9971V 7FFh 2047 -0.0024V 4.9947V 800h 2048 4.9971V FFFh 4095 +4.9947V 9.9918V PCI-1713 User Manual...
