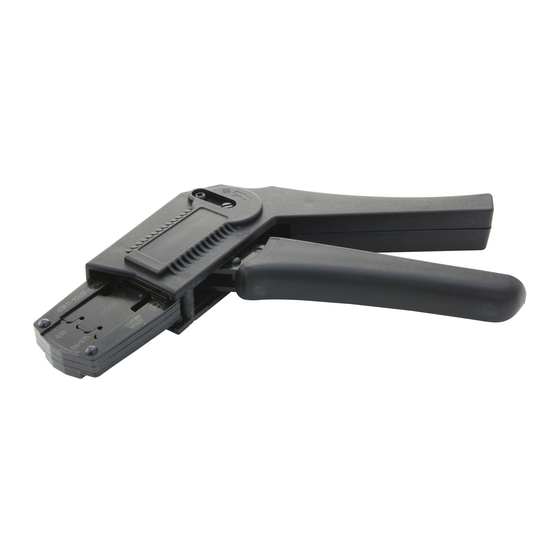

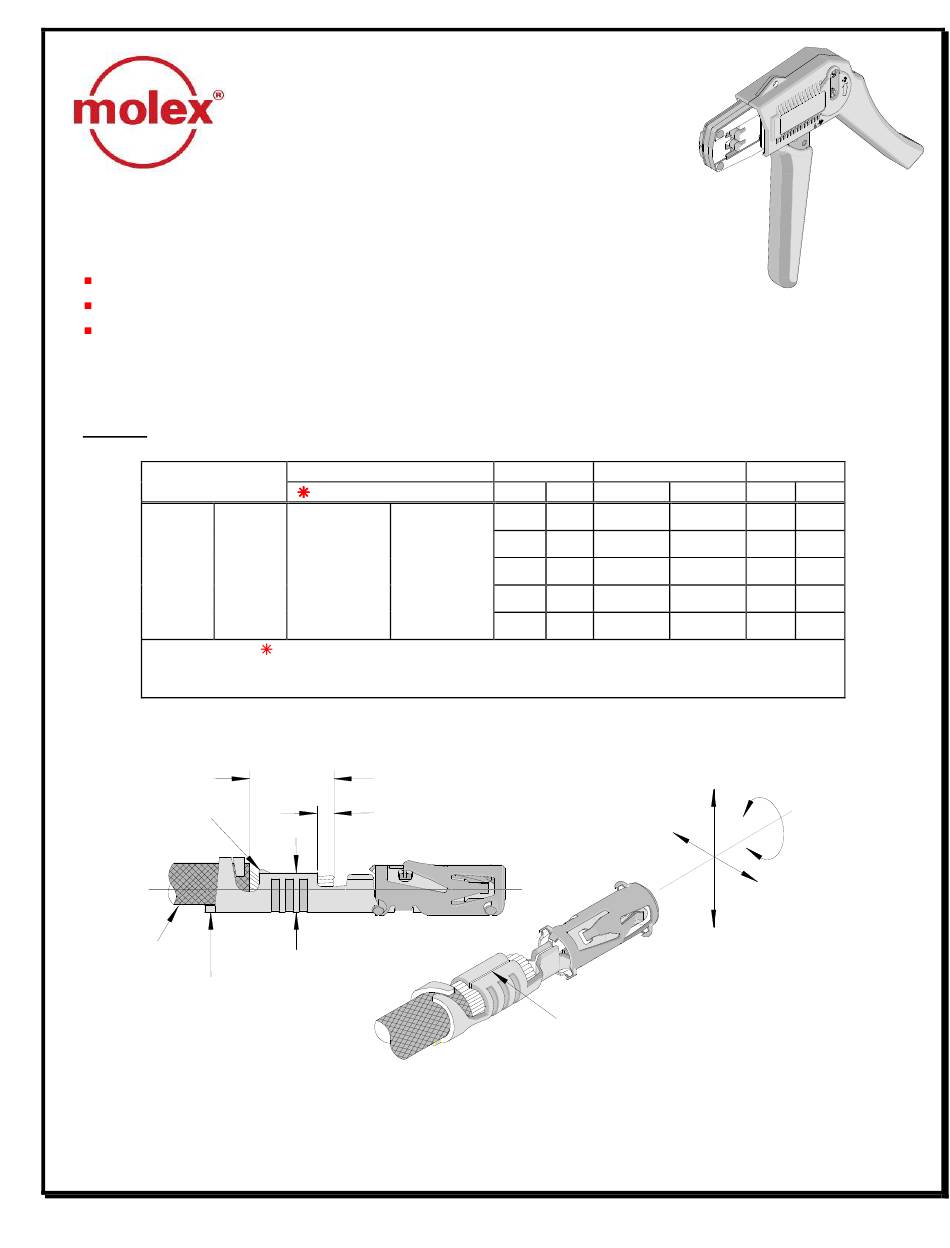

Hand Crimp Tool for 0.60mm (.027") CP 0.6 Series Crimp Terminals
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is WHMA-IPCA620 Class 3 only with specified wire types and RoHS compliant
SCOPE
Products: 0.60mm (.027") CP0.6 Female Crimp Terminals for CMC connector 18-20 AWG and 0.50-0.75mm
Terminal Series No.
98913
64322
Note: Terminal will accommodate the thin wall small insulation with the TXL type American wires
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-638119200
Revision: E
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-9200
Terminal Order No.
Available in Reel form only
98913-1029
64322-1029
98913-1219
64322-1219
98913-1319
64322-1319
98913-1339
64322-1339
98913-1039
64322-1039
98913-1239
64322-1239
98913-1359
64322-1359
Follow the Cut-Off Tab specifications on the Applicator specification sheets.
and the IR or ID type Metric wires.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP HEIGHT
Release Date: 02-12-07
Revision Date: 01-28-10
Wire Size
Insulation Diameter
AWG
mm²
mm
18
1.91-2.06
0.75
1.60-1.80
0.60
1.75-1.90
20
1.70-1.85
0.50
1.40-1.50
SEAM
UNCONTROLLED COPY
TYPE 7
Strip Length
In.
mm
In.
.075-.081
3.50
.138
.063-.071
3.50
.138
.069-.075
3.50
.138
.067-.073
3.50
.138
.055-.059
3.50
.138
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
