SETTING UP THE EVALUATION BOARD

INSTALLING THE SigmaStudio
Download and install the latest version of
completing the following steps:
1. Install the latest version of Microsoft® .NET Framework if
it is not already installed on the PC. The latest version of
the .NET Framework can be downloaded from the
Microsoft website.
2. Go to www.analog.com/SigmaStudio
latest version of SigmaStudio
Related Products section.
3. Log in to your myAnalog account. (If you do not have an
account, go to www.analog.com/MyAnalog, click Log In,
and then click Register to create a new account.)
4. Fill in the download form and choose SigmaDSP as the
target hardware.
5. Download the installer and execute the executable. Follow
the prompts, including accepting the license agreement, to
install the software.
INSTALLING THE USBi (EVAL-ADUSB2EBZ)
DRIVERS
SigmaStudio must be installed to use the USB interface (USBi).
After the SigmaStudio installation is complete,
1. Connect the USBi to an available USB 2.0 port using the
USB cable included in the evaluation board kit. (The USBi
does not function properly with a USB 3.0 port.)
2. Install the driver software (see the Using Windows XP
section or the Using Windows 7 or Windows Vista section
for more information).
Using Windows XP
After connecting the USBi to the USB 2.0 port, Windows® XP
recognizes the device (see Figure 5) and prompts the user to
install the drivers.

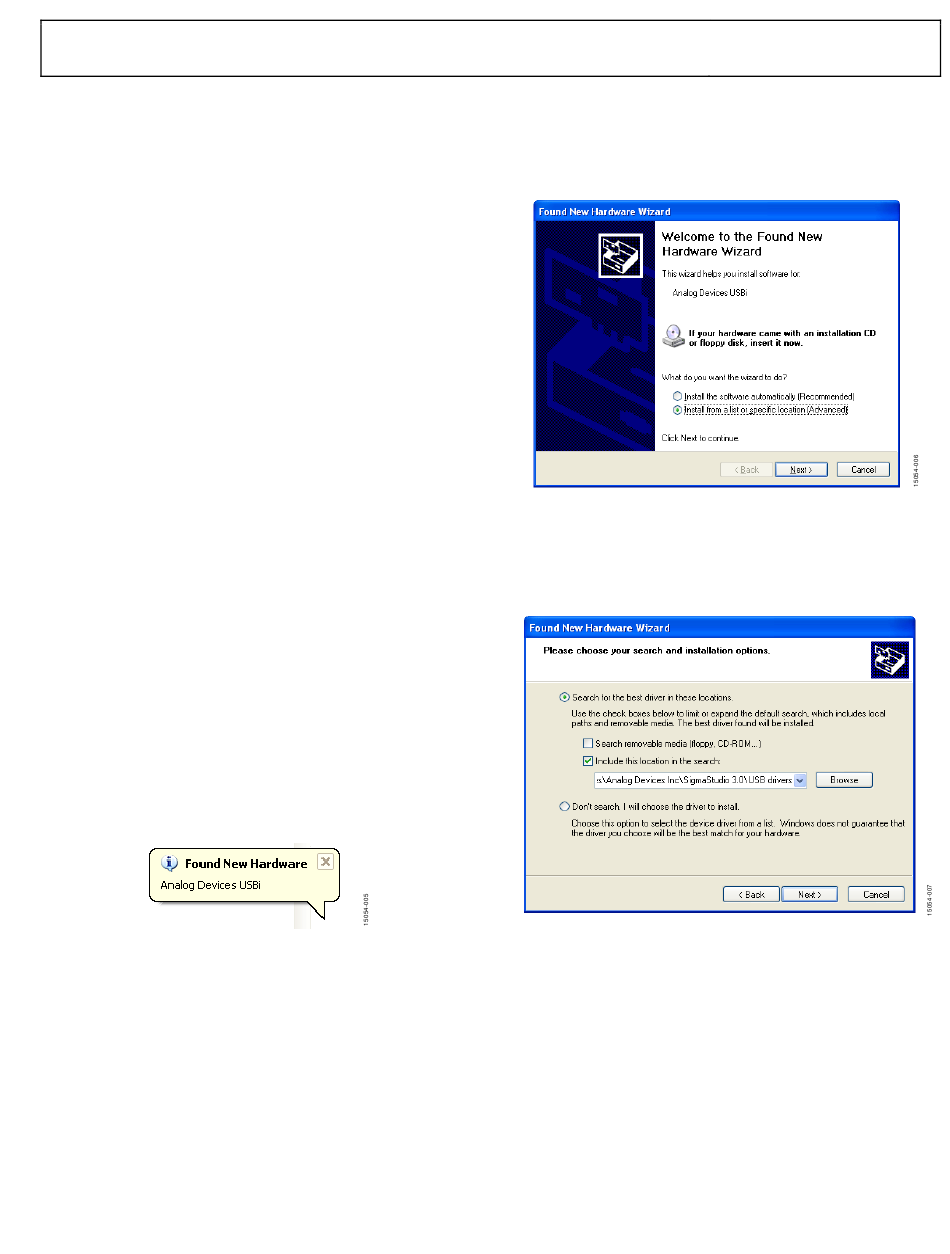

Figure 5. Found New Hardware Notification
SOFTWARE
SigmaStudio by
and download the
from the Downloads and
Rev. 0 | Page 5 of 25
1. From the Found New Hardware Wizard window, select
the Install from a list or specific location (Advanced)
option and click Next (see Figure 6).
Figure 6. Found New Hardware Wizard—Installation
2. Select Search for the best driver in these locations, select
Include this location in the search, and click Browse to
find the USB drivers subdirectory within the
directory (see Figure 7).
Figure 7. Found New Hardware Wizard—Search and Installation Options
UG-1055
SigmaStudio
