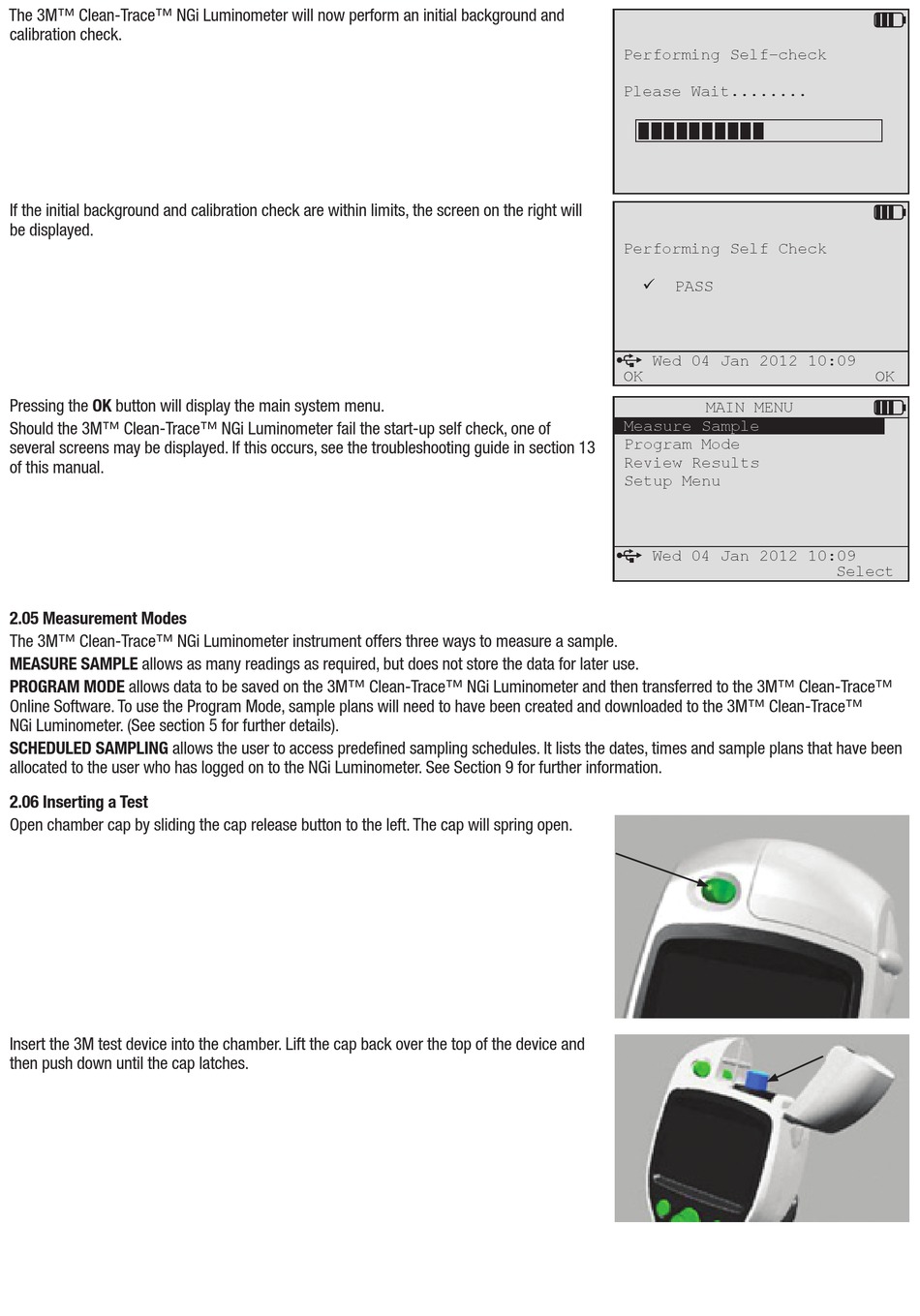

The 3M™ Clean-Trace™ NGi Luminometer will now perform an initial background and
calibration check.
If the initial background and calibration check are within limits, the screen on the right will
be displayed.
Pressing the OK button will display the main system menu.
Should the 3M™ Clean-Trace™ NGi Luminometer fail the start-up self check, one of
several screens may be displayed. If this occurs, see the troubleshooting guide in section 13
of this manual.
2.05 Measurement Modes
The 3M™ Clean-Trace™ NGi Luminometer instrument offers three ways to measure a sample.
MEASURE SAMPLE allows as many readings as required, but does not store the data for later use.
PROGRAM MODE allows data to be saved on the 3M™ Clean-Trace™ NGi Luminometer and then transferred to the 3M™ Clean-Trace™
Online Software. To use the Program Mode, sample plans will need to have been created and downloaded to the 3M™ Clean-Trace™
NGi Luminometer. (See section 5 for further details).
SCHEDULED SAMPLING allows the user to access predefined sampling schedules. It lists the dates, times and sample plans that have been
allocated to the user who has logged on to the NGi Luminometer. See Section 9 for further information.
2.06 Inserting a Test
Open chamber cap by sliding the cap release button to the left. The cap will spring open.
Insert the 3M test device into the chamber. Lift the cap back over the top of the device and
then push down until the cap latches.
Performing Self–check
Please Wait........
Performing Self Check
PASS
Wed 04 Jan 2012 10:09
OK
MAIN MENU
Measure Sample
Program Mode
Review Results
Setup Menu
Wed 04 Jan 2012 10:09
OK
Select
