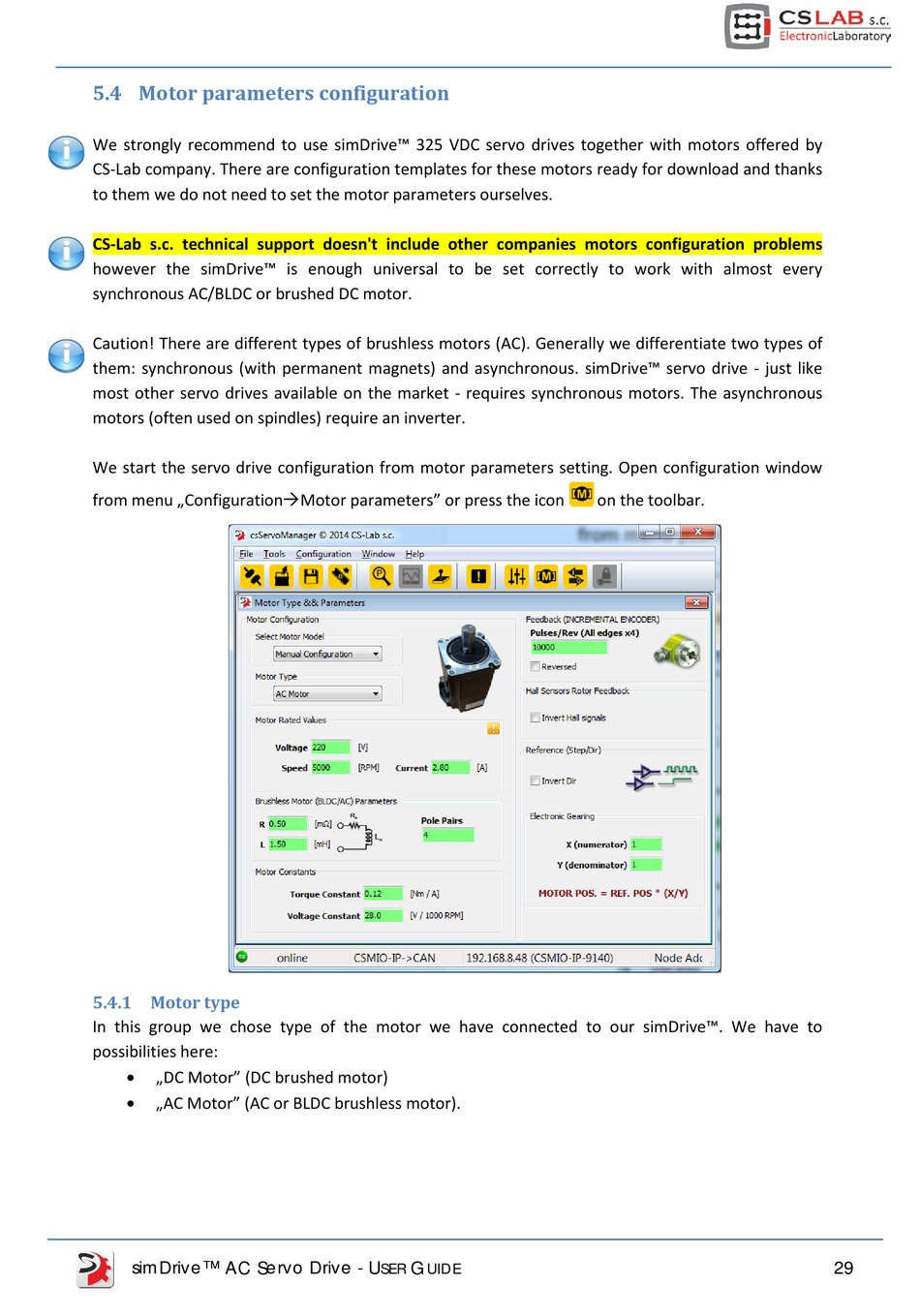

5.4 Motor parameters configuration

We strongly recommend to use simDrive™ 325 VDC servo drives together with motors offered by
CS-Lab company. There are configuration templates for these motors ready for download and thanks
to them we do not need to set the motor parameters ourselves.
CS-Lab s.c. technical support doesn't include other companies motors configuration problems
however the simDrive™ is enough universal to be set correctly to work with almost every
synchronous AC/BLDC or brushed DC motor.
Caution! There are different types of brushless motors (AC). Generally we differentiate two types of
them: synchronous (with permanent magnets) and asynchronous. simDrive™ servo drive - just like
most other servo drives available on the market - requires synchronous motors. The asynchronous
motors (often used on spindles) require an inverter.
We start the servo drive configuration from motor parameters setting. Open configuration window
from menu „ConfigurationMotor parameters" or press the icon

5.4.1 Motor type

In this group we chose type of the motor we have connected to our simDrive™. We have to
possibilities here:
•
„DC Motor" (DC brushed motor)
•
„AC Motor" (AC or BLDC brushless motor).
simDrive™ AC Servo Drive - U
G
SER UIDE
on the toolbar.
