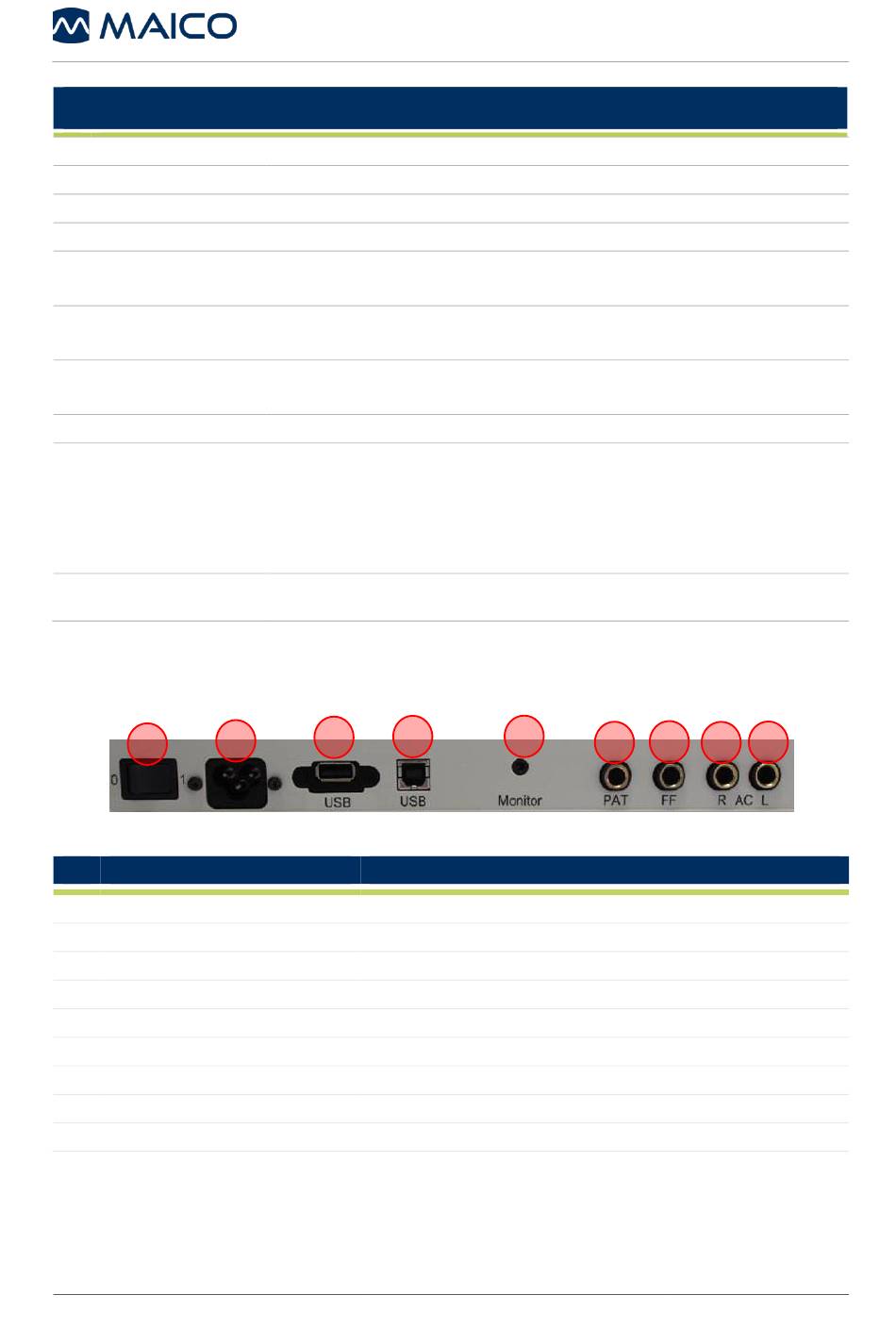

6.2 Connections

1
Figure 32
# CONNECTION SOCKET
1 0/1 (On/Off)
2 Mains
3 USB in
4 USB out
5 Monitor
6 Patient Response Switch
7 Speaker
8 Phone R (red)
9 Phone L (blue)
Rev.
8504660 3
HM-E300
OLED display
USB Cable, Paper (2 rolls), Quick Guide
USB
2300 mAh/7.4 V rechargeable Li-ion battery
5 days stand-by
Output: DC 5 V/1A
Battery: 2300 mAh/7.4 V rechargeable Li-ion battery
38.8 mm x 106.3 mm x 61.2 mm
(1.52 in x 4.19 in x 2.41 in)
475.8 g / 17.8 oz (without paper roll)
Continuous paper
Paper Width: 80 mm
Paper Thickness: 0.053 mm to 0.100 mm
Paper Roller Diameter: ≤ 50 mm
To be printed on paper roll:
<5 seconds per test result
3
2
SPECIFICATION
Power
100...240 V~, 50/60 Hz middle = protection earth
USB 1.1
USB 1.1
ZA= 10 Ω, UA= 35 mV
RI= 500 Ω
ZA= 8 Ω, UA= 3,5 V
ZA= 8 Ω, UA= 3,5 V
ZA= 8 Ω, UA= 3,5 V
