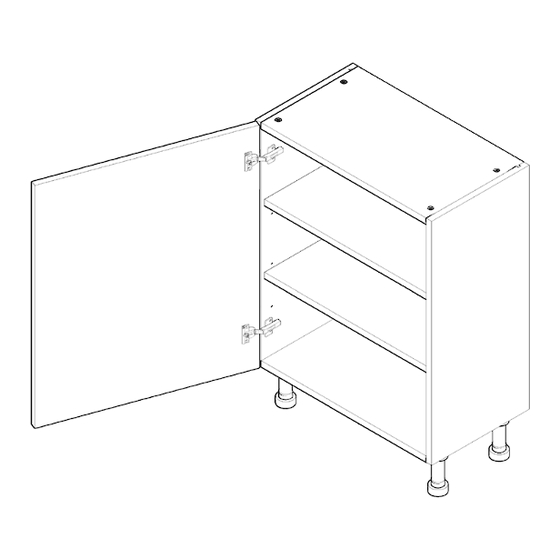

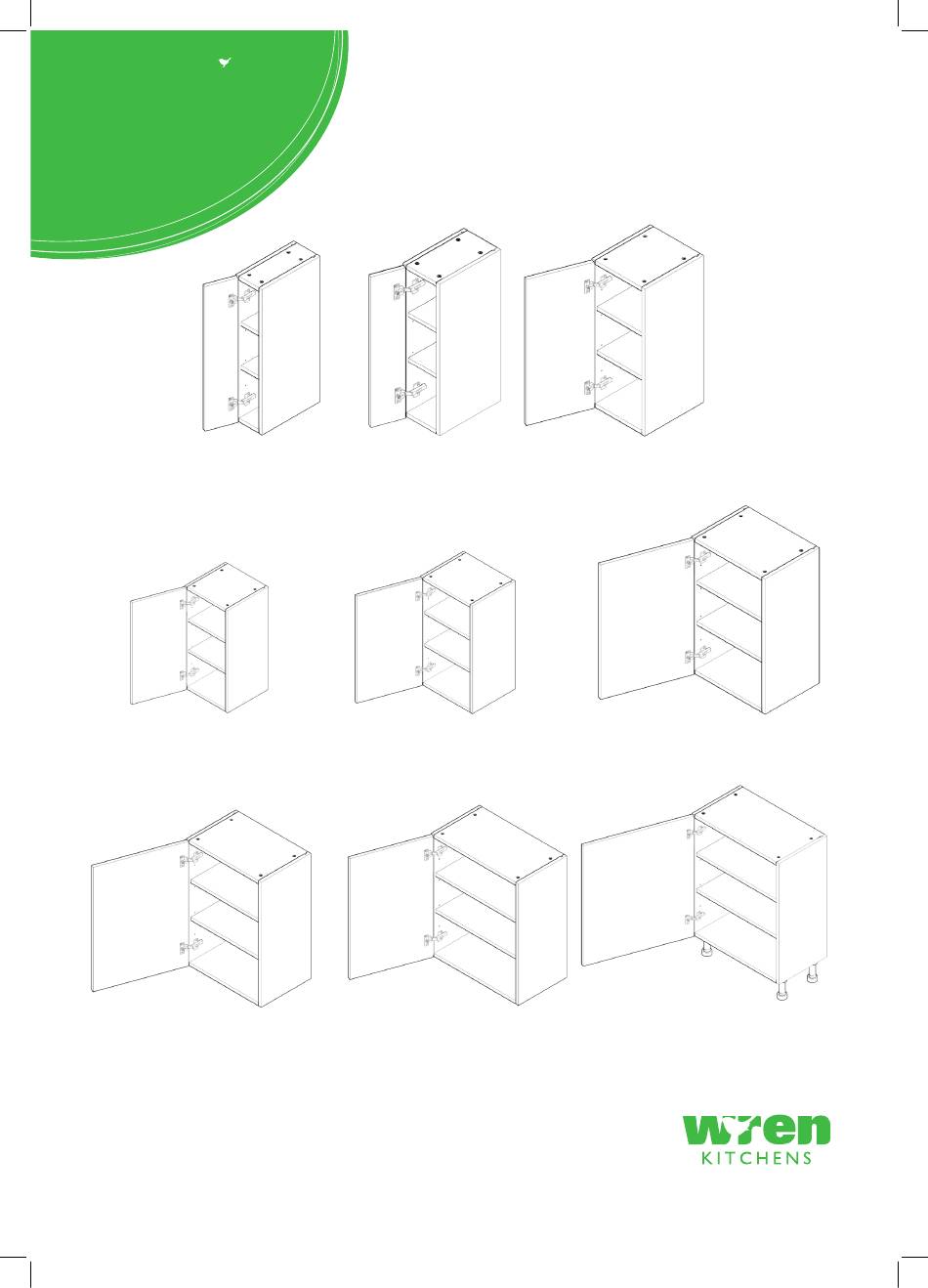

- Page 1 WALL/SHALLOW BASE UNIT 150 - 600 WALL/SHALLOW BASE Assembly Guide 150 WALL 200 WALL 300 WALL 450 WALL 350 WALL 400 WALL 500 WALL 600 WALL 600 BASE SHALLOW For Internal Use: FI.WR.INS.034_WKIN00124_MULTI_150-600_WALL_ShallowBASE_Rev6.indd...
-
Page 2: Assembly Guide
WALL/SHALLOW BASE UNIT BEFORE YOU START 150 - 600 INSTALLATION WALL/SHALLOW BASE SHOULD BE PERFORMED BY A Assembly Guide COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Panel A Panel B Panel C Shelf Frontal x1 Back Panel x2 End Panel x2 Base Panel (packed separately) - Page 3 WALL/SHALLOW BASE UNIT 150 - 600 WALL/SHALLOW BASE Assembly Guide Step 1. Seat dowel (F) into holes in Seat (G) cam dowel end panel (B) as shown. into hole as shown. Step 2. Seat cam dowel (G) into holes in end panel (B) as shown.
- Page 4 WALL/SHALLOW BASE UNIT Seat (G) cam dowel 150 - 600 into hole as WALL/SHALLOW BASE shown. Assembly Guide Step 6. Seat dowel (F) into holes in both panels (B) as shown. Step 7. Seat cam dowel (G) into holes in both end panels (B) as shown.
- Page 5 WALL/SHALLOW BASE UNIT 150 - 600 WALL/SHALLOW BASE Assembly Guide Step 10. Ensure Carcase is square. Step 11. Slide the back panel clips (T) into the groove of both panels (B) & (C)s. The back panel clips (T) should be evenly spaced as shown and positioned to allow the hanging bracket and corner gussets to be fitted.
- Page 6 WALL/SHALLOW WALL CABINETS ONLY BASE UNIT for Shallow Base see pages 7 & 8 150 - 600 WALL/SHALLOW BASE Care to be taken. Hanging procedure is neccesary for a safe installation. Assembly Guide Step 13. Hanging Brackets steps a,b & c to be carried out on both sides as shown Detail A Detail A...
- Page 7 WALL/SHALLOW BASE UNIT WALL CABINETS ONLY 150 - 600 Step 16. WALL/SHALLOW BASE Measure appropriately and attach the 2 x hanging bracket plates onto the wall screwing through the provided holes into your wall. Assembly Guide Screws for fixing to walls are not provided as these vary depending on your wall material and construction.
- Page 8 WALL/SHALLOW BASE UNIT SHALLOW BASE CABINETS ONLY for WALL see pages 5 & 6 150 - 600 WALL/SHALLOW BASE Assembly Guide Corner Gusset Detail Step 20. Secure Corner Gussets to the top left and right hand side of the wall unit using 4 x 15mm screws (L) per plate.
- Page 9 WALL/SHALLOW BASE UNIT SHALLOW BASE CABINETS ONLY 150 - 600 Step 23. WALL/SHALLOW BASE Secure each of the legs into place with 4 x 15mm Screws (L) per leg base. Assembly Guide FRONT Ensure legs are rotated as shown so that part of it is supporting the end panels (B).
- Page 10 WALL/SHALLOW BASE UNIT 150 - 600 Step 25. WALL/SHALLOW BASE Insert hinge in top & bottom Assembly Guide holes as shown. Step 26. Secure hinges by tightening 2 x screws with hinge dowels attached. These are already positioned within the hinges. Hinge Plates Step 27.
- Page 11 WALL/SHALLOW BASE UNIT 150 - 600 WALL/SHALLOW BASE Assembly Guide For Internal Use: FI.WR.INS.034_WKIN00124_MULTI_150-600_WALL_ShallowBASE_Rev6.indd...
