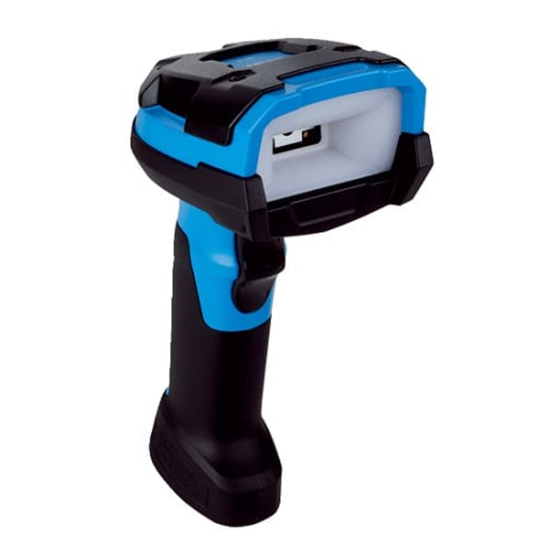

SICK ZS3608 Quick Start

ZS3608
www.sick.com/ZS36x8_DPM
Distributed by
Mobile Hand-held Scanners

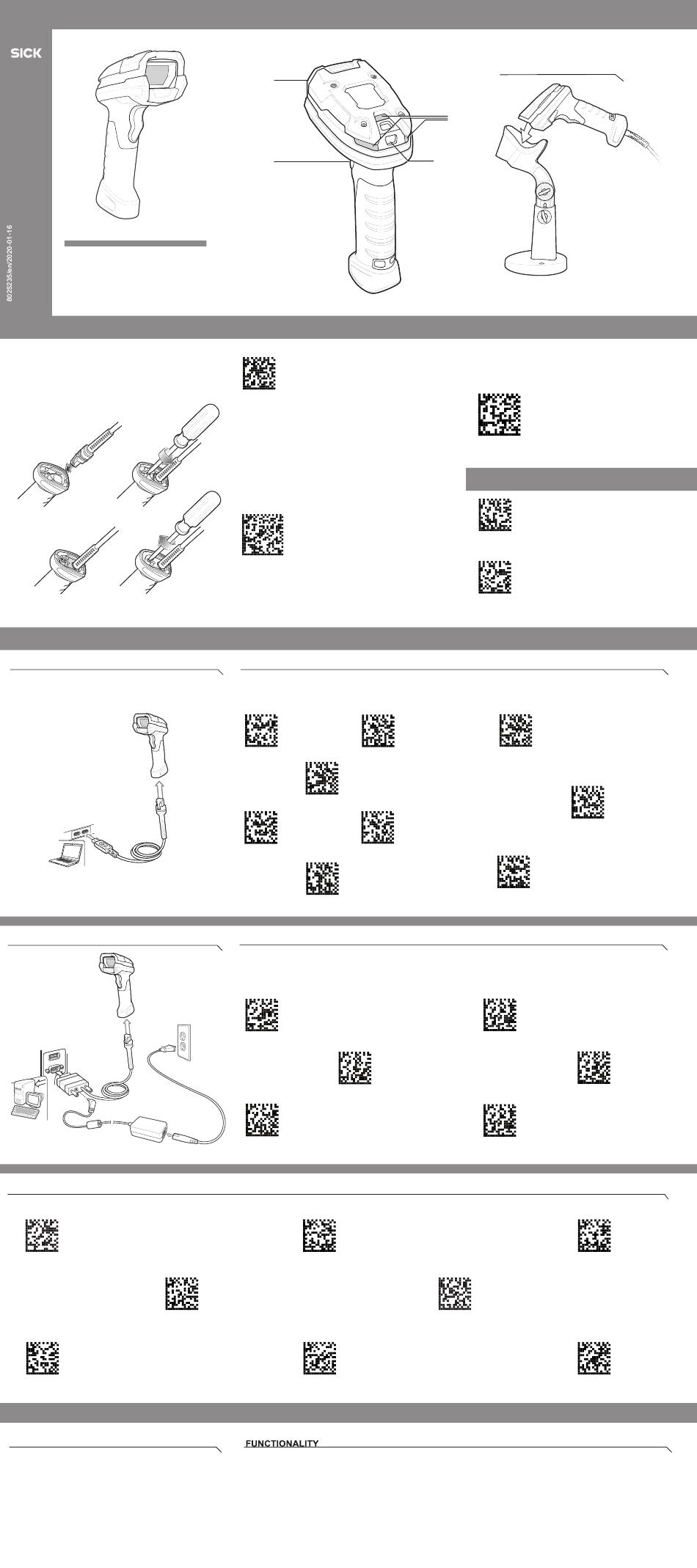

QUICKSTART

CABLE ATTACHMENT

1. Insert cable fully so that the connector is flush with the scanner surface.
2. Loosen metal lock plate screws using a PH1 driver.
3. Slide lock plate to fully locked position.
4. Tighten screw using a PH1 driver (torque: 5 in-lb).
1
3

STEP 1 - CONNECT HOST INTERFACE

USB
NOTE: Cables may vary depending on configuration
RS-232

Country Keyboard Types

Scan one of the bar codes below corresponding to the keyboard type. For a USB host, the setting applies only to the USB keyboard (HID) device.
*US ENGLISH
(NORTH AMERICA)
FRENCH
(FRANCE)
The Z-UP Tool is an easy to use, PC-based software tool that
enables rapid and easy setup of a scanner via a bar code or USB
cable. For more information, visit: www.sick.com/ZS36x8_DPM.
Note: Zebra's 123Scan software can also be used for configuration.
1
1 Scan Window
2 Scan Trigger
3 LED
4 Beeper
See Product Reference Guide
for detailed information

SET DEFAULTS / ENTER KEY BAR CODES

RETURN TO FACTORY DEFAULTS

2

ADD AN ENTER KEY

(Carriage Return/Line Feed)
To add an Enter key after scanned data, scan
the bar code below.
4
ADD AN ENTER KEY (CARRIAGE RETURN/LINE FEED)

STEP 2 - SET UP INTERFACE

USB
Scan
ONE
The interface cable automatically detects the host interface type and uses the
default setting. If the default (*) does not meet your requirements, scan another
host bar code below.
*USB KEYBOARD (HID)
SNAPI WITHOUT IMAGING
RS-232
Scan ONE
The interface cable automatically detects the host interface type and uses the
default setting. If the default (*) does not meet your requirements, scan another
host bar code below.
*STANDARD RS-232
NIXDORF RS-232 MODE A
GERMAN
- Device Configuration
- Electronic Programming (USB Cable)
- Programming Bar Codes
- Data View - Scan Log (Display Scanned Bar Code Data)

SCANNER FEATURES

2
(

Scan Host Bar Codes

of the bar codes below
USB CDC Host
IBM TABLE TOP USB
SNAPI WITH IMAGING
IBM HAND-HELD USB
of the bar codes below
ICL RS-232
ITALIAN
UK ENGLISH
Z-Up Tool

ACCESSORIES

Intellistand
3
4

TAB KEY BAR CODE

ADD A TAB KEY

To add a Tab key after scanned data, scan
the bar code below.
ADD A TAB KEY
USB CAPS LOCK OVERRIDE BAR CODE
USB - OVERRIDE CAPS LOCK KEY (ENABLE)
*USB - DO NOT OVERRIDE CAPS LOCK KEY (DISABLE)
)
USB OPOS HAND- HELD
SSI OVER USB CDC
NIXDORF RS-232 MODE B
OPOS/JPOS
CHINESE
(SIMPLIFIED)
- Access Asset Tracking Information
- Upgrade Firmware and View Release Notes
8025235/2020-01-16 • Subject to change without notice • SICK AG • Waldkirch • Germany • www.sick.com
SIMPLE COM PORT EMULATION
FUJITSU RS-232
SPANISH
JAPANESE
(ASCII)
