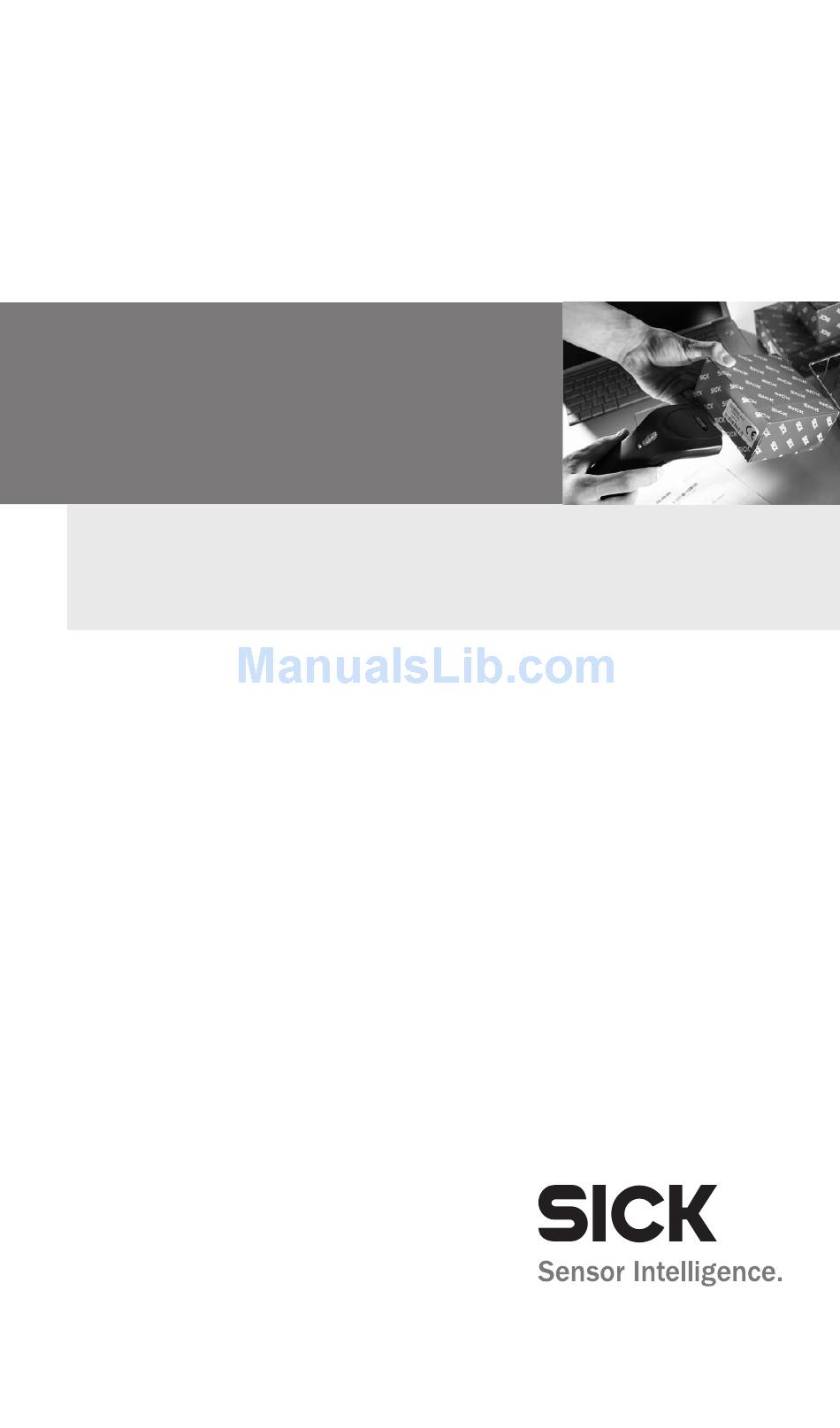

  • Page 1 QUICK START IDM1xx Hand-held Scanner Hand-held Line...

  • Page 2: Warranty

    R). Then finish by scanning the “FIN” code. To set back preamble to none scan “PROGRAMM”, “Preamble”, “FIN” and then “END” code. SICK makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranty of merchantability and fitness for any particular purpose.

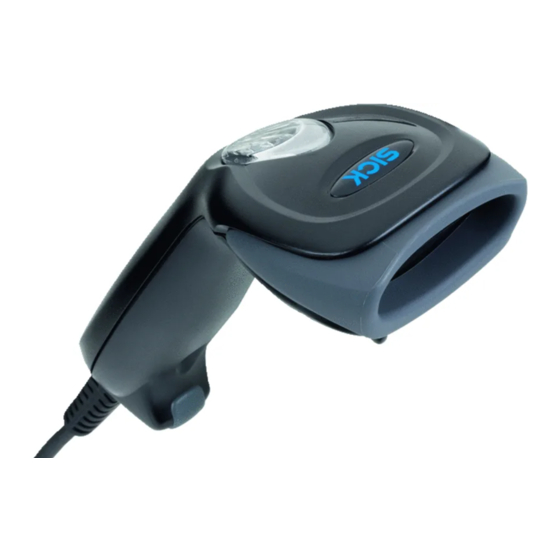

  • Page 3 Getting familiar with your IDM Scanner Thank you for choosing SICK IDM Hand Held Scanners. All IDM Hand Held Scanners deliver reliable performance for a broad range of market applications to unleash your productivity. IDM120 Series 1. Power Indicator 2. Status Indicator 3.
  • Page 4 Serial, USB interfaces capability. To disconnect the cable, please straighten one end of a paper clip, then insert it into the cable release hole and press in. After that, you can release the cable and pull the cable out easily. IDM120 Series IDM140 Series...
  • Page 5 PS/2(DOS/V) Keyboard Wedge RS232 Serial IDM120 and IDM140 cables: 2m, straight PS/2 cable SICK order number 6036726 1,8m, straight RS232TTL cable SICK order number 6036727 1,8m, straight USB cable SICK order number 6036728 3,8m (fully extracted), spiral PS/2 cable...

  • Page 6: Keyboard Function Code Table

    Keyboard function code table ANSI ASCII Key Function ANSI ASCII Key Function RESERVED CTRL (Left) ALT (Left) SHIFT CAPS LOCK NUM LOCK INS (Insert) (Edit) DEL (Delete) (Edit) BACK SPACE HOME (Edit) END (Edit) PAGE UP (Edit) PAGE DOWN (Edit) UP (Edit) ENTER (CR) DOWN (Edit)

  • Page 7: Host Interface Quick Set

    Host Interface Quick Set RS232 Serial Keyboard Replacement PS/2 (DOS/V) KBW Standard Mode PS/2 (DOS/V) KBW Turbo Mode USB HID Standard Mode ◆ USB HID Turbo Mode USB Com Port Emulation (only IDM1x0-2) Operation Mode Quick Set Low Power (Low power trigger) ◆Trigger Mode (External trigger) Presentation (Auto sensing) Alternative (Periodic power off)

  • Page 8: Keyboard Interface Control

    Keyboard interface control Command Parameter Selection Option Code Keyboard Layout USA ◆ Latin America France Italy Germany Netherlands United Kingdom-UK Denmark Canadian French Belgium Spain Switzerland-Germany Sweden/Finland Iceland Portugal Japan Norway Universal Record Suffix None ENTER RETURN ◆ User define character SPACE Preamble None ◆...

  • Page 9: Serial Interface Control

    Serial interface control Command Parameter Selection Option Code STX/ETX Control Disable STX/ETX transmission ◆ Enable STX/ETX transmission Record Suffix None CR ◆ SPACE User define character CRLF Preamble None ◆ 1-15 characters [00-7F], [FIN] Postamble None ◆ 1-15 characters [00-7F], [FIN] Handshaking Protocol None ◆...
  • Page 10 Disable all symbology ID ◆ Enable prefix SICK symbology ID Enable suffix SICK symbology ID Enable both prefix and suffix SICK symbology ID Enable prefix AIM symbology ID Enable suffix AIM symbology ID Enable both prefix and suffix AIM symbology ID Dollar Sign Output Dollar sign output as “...
  • Page 11 Operation and output control (continued) Command Parameter Selection Option Code Good Read Beep Duration Short Medium ◆ Long Extremely long Hands Free Time-out Short ◆ Medium Long Extremely long Buzzer Tone Adjust Buzzer tone – mute Buzzer tone – low Buzzer tone –...

  • Page 12: Option Codes

    Option codes FIN (Finish) END (Exit)

  • Page 13: System Commands

    Save User Default User Default The devices also can be configured via the “IDM Set Up Tool”. You can download this software for free on sick.com. The code below is important for the communication between scanner and software. IDM Set Up Link...
  • Page 14 Australia Österreich Polska Belgium/Luxembourg Republic of Korea Brasil Republika Slovenija Ceská Republika România China Russia Danmark Schweiz Deutschland Singapore España Suomi France Sverige Great Britain Taiwan India Türkiye Israel United Arab Emirates Italia USA/Canada/México Japan Nederlands Norge www.sick.com...
