UG-1635
SOFTWARE OVERVIEW
INSTALLING THE ETHERNET PHY SOFTWARE
The Ethernet PHY software GUI requires the installation of the
Ethernet PHY software and the installation of the USB
communications drivers. Both installations must be complete
before connecting the EVAL-ADIN1300FMCZ to the USB port
of the PC to ensure that the evaluation system is properly
recognized when connected to the PC.
First, install the Ethernet PHY software and the associated
documentation (the
ADIN1300
steps are listed in the following section. The default location for
the Ethernet PHY software GUI installation is the C:\Analog
Devices folder.
When the Ethernet PHY software installation is complete,
install the USB communications drivers. The MDIO interface
dongle uses the FT232RQ for UART to USB communication.
The MDIO interface dongle requires the installation of drivers
for the FTDI chip. Locate and install this driver separately.
These drivers are available at:
www.ftdichip.com/Drivers/CDM/CDM21228_Setup.zip.
Ethernet PHY Software GUI Installation
To install the Ethernet PHY software GUI, take the following steps:
1.
Launch the installer file to begin the Ethernet PHY
software installation.
2.
If a window appears asking for permission to allow the
program to make changes to the PC, click Yes.
3.

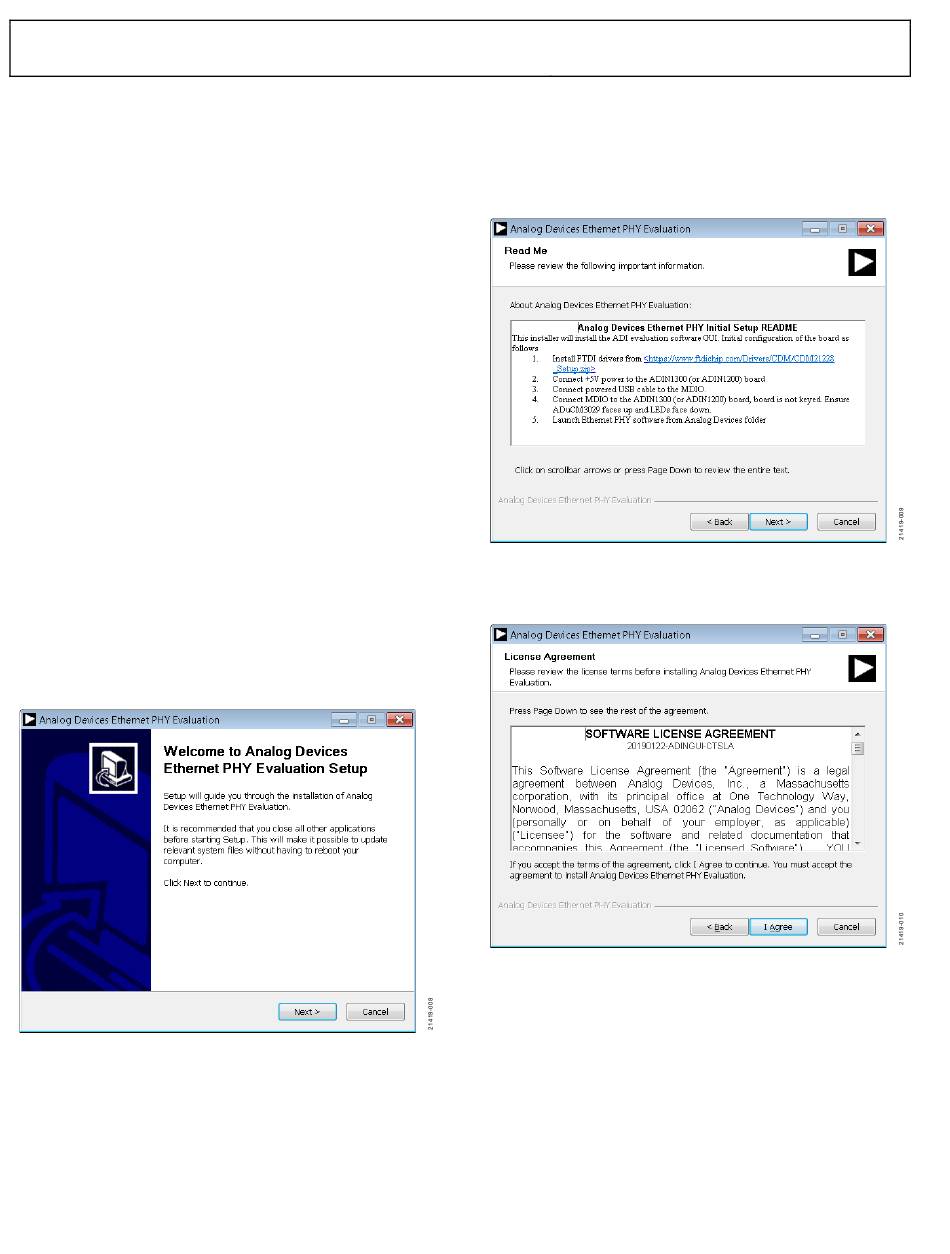

The welcome window appears (see Figure 7). Click Next.
Figure 7. Welcome Window
data sheet). The installation
EVAL-ADIN1300FMCZ
4.
The Ethernet PHY software launches. An overview of what
is being installed and recommendations in terms of
hardware power-up appears. Read the overview and click
Next (see Figure 8).
5.
A license agreement appears. Read the agreement and click I
Agree to allow the installation to proceed (see Figure 9).
Figure 9. Accepting the License Agreement
Rev. 0 | Page 8 of 30
Figure 8. Installation Process Overview
