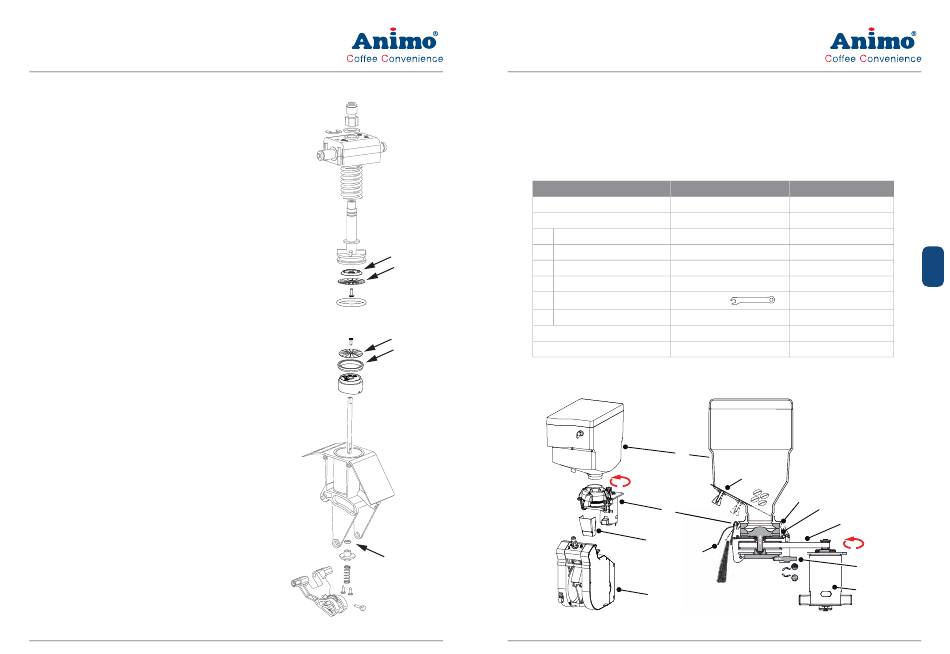

OptiBean
Periodic
Espresso group
Requirements; spares set 25K [art. no. 1001395]
-
After 25,000 cycles the fi lters and seals must be
replaced.
-
After 50,000 cycles a complete inspection of the
espresso group is recommended and any worn parts
must be replaced.
Drive unit
-
Service life 2 years or 50,000 cycles
-
After 25,000 cycles, check the operation of the drive
unit and clean it.
-
After 50,000 cycles, check the whole drive unit and
replace as necessary.
18
2011/06 Rev. 0.4
OptiBean
1.4 Grinder
The grinder is driven by a powerful DC motor [2.6].
The upper grinding disk [2.2] is fi xed. The lower grinding disk [2.3] is driven by a drive belt [2.4]. The
grind fi neness can be set with an adjustment screw [2.5]. When the screw is turned clockwise, the
distance from the upper grinding disk reduces; anti-clockwise it increases.
The ground coffee leaves the grinder via the coffee outlet [2.1]. A rubber fl ap prevents the entry of
moisture.
Major components
Technical data
1. Bean canister
Content 1.5 kg

2. Coffee grinder

Sound level < 70 dB(A)
2.1 Coffee outlet
2.2 Upper grinding disk
Ø 65 mm
2.3 Lower grinding disk
Ø 65 mm
2.4 Drive belt
2.5 Fine adjustment
Hex. screw +
2.6 DC motor
230Vdc
3. Coffee guide
4. Espresso group
See Section 1.3
1
2
3
2.1
4
2011/06 Rev. 0.4
Material
PC
ABS
Ceramic
Ceramic
Rubber
stainless steel
1.1
2.2
2.3
2.4
2.5
2.6
19
GB
