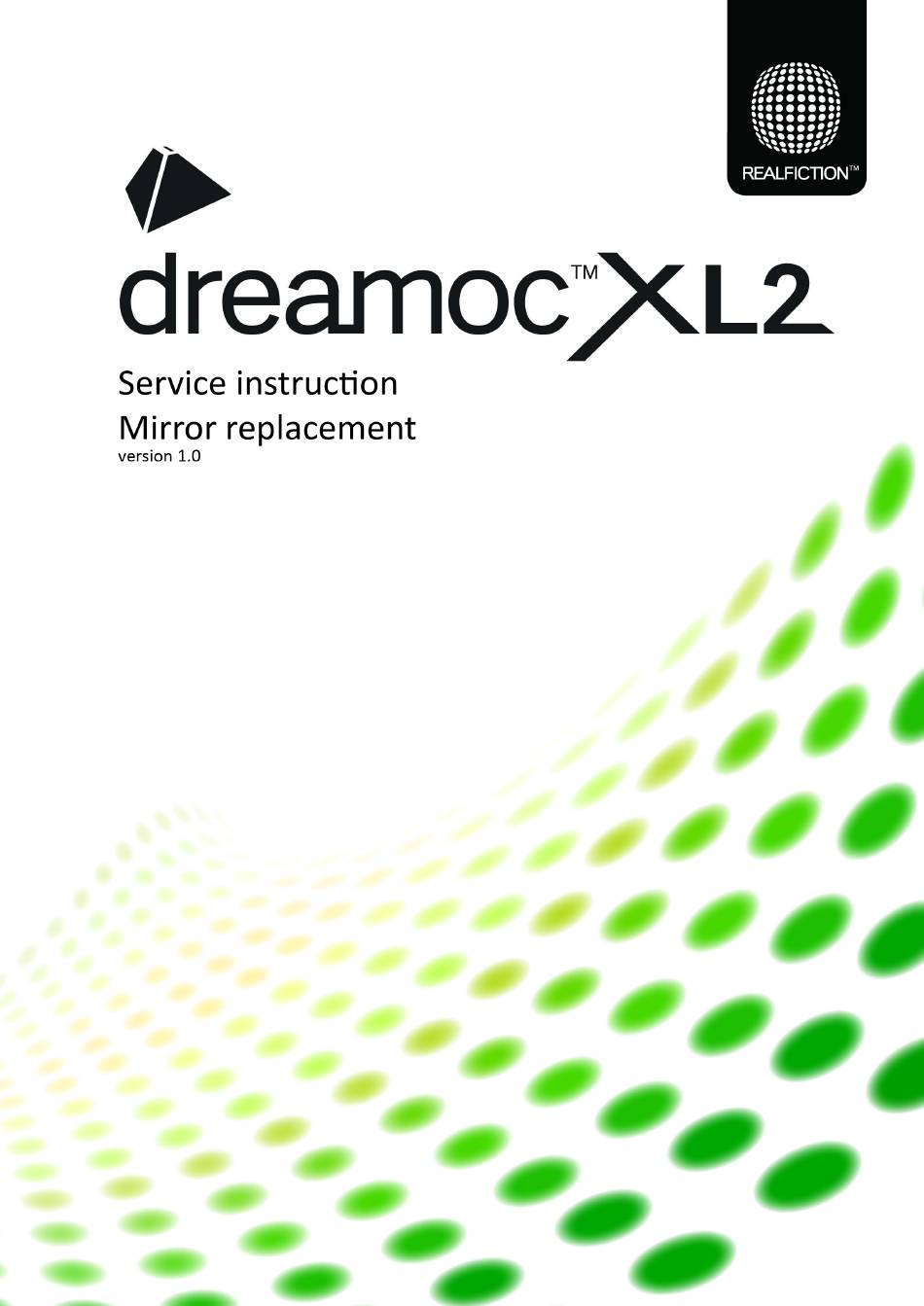

Realfiction DREAMOC XL2 Service Instruction
  1. Manuals
  2. Brands
  3. Realfiction Manuals
  4. Monitor
  5. Dreamoc XL2
  6. Service instruction

Realfiction DREAMOC XL2 Service Instruction

Mirror replacement
Hide thumbs Also See for DREAMOC XL2:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DREAMOC XL2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Realfiction DREAMOC XL2

Summary of Contents for Realfiction DREAMOC XL2

  • Page 2 Security precautions Service handling of the Dreamoc must be done by professional personal and according to the general descriptions in the user manual for this product. Step 1 Remove the top cover. Remove the screws in the top cover and then remove the top cover. Step 2 Remove the LCD screen clamp plate.
  • Page 3 Step 3 Remove the cables from the LCD screen. Clip cable tie at the power and HDMI cable and then remove the power and HDMI cable from the LCD screen. Step 4 Remove the LCD screen After removing the four clamp plates and the two cables, the LCD screen can be removed.
  • Page 4 Step 5 Remove the two doors. Use the key to remove the back door, then slide the four clamps on the inner door away from the inner door, and then remove the inner door. Step 8 Remove Top LED lamp housing Before remove the top LED lamp-house, remove the four screws inside the LED lamp house.
  • Page 5 Step 9 Remove LED lamp wire. To be able to move the LED lamp-house away from the Dreamoc, remove the wire from the LED lamp. Step 10 Remove front mirror-aluminum-rails. Have soft clear gloves on when handling the mirrors. Slide up the two front mirror-aluminum- rails.
  • Page 6 Step 11 Remove the two side mirrors. When removing the side mirrors, slide the mirrors up starting from the back. Step 12 Remove front mirror. Loosen the two screws in the LED lamp house at the back of the Dreamoc. Lift up the LED lamp house in the front and move the top of the front mirror down under the LED lamp house.
  • Page 7 Step 13 Assemble the mirrors. When assembling the mirrors just go through the same steps as when removing the mirrors but from the back from step 12 to 1. When sliding back down the front mirror-aluminum-rails make sure that they are all the way down. Troubleshooting.
  • Page 8 For further information and pricing please contact RealFiction phone number: +45 70206490 email: contact@realfiction.com...
