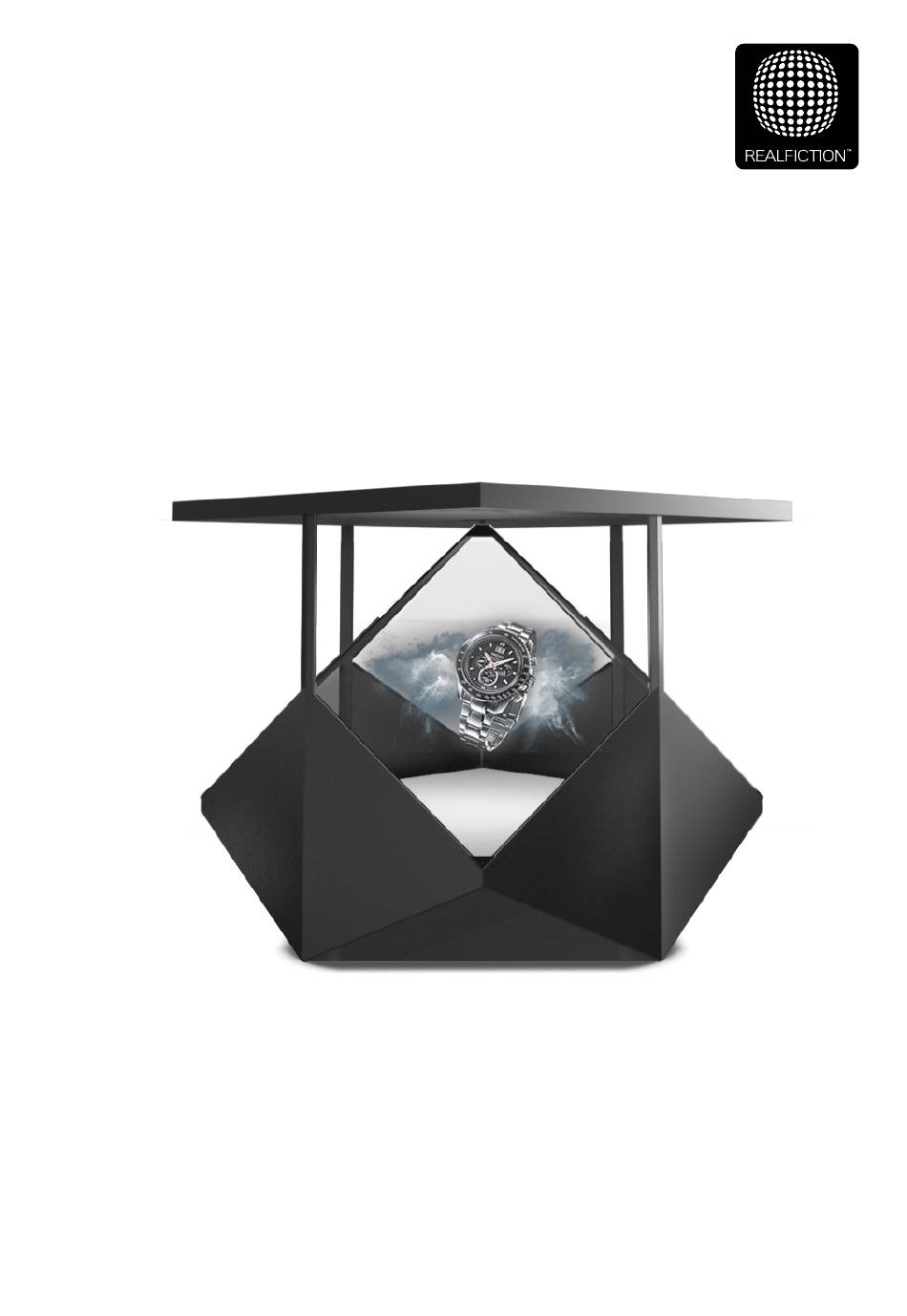

DREAMOC DIAMOND - USER GUIDE
VERSION 1.1- ORIGINAL USER GUIDE
It is important to read this manual before using the Dreamoc, and to follow advices and instructions on safety,
operation and general use to get the best possible experience with your Dreamoc.

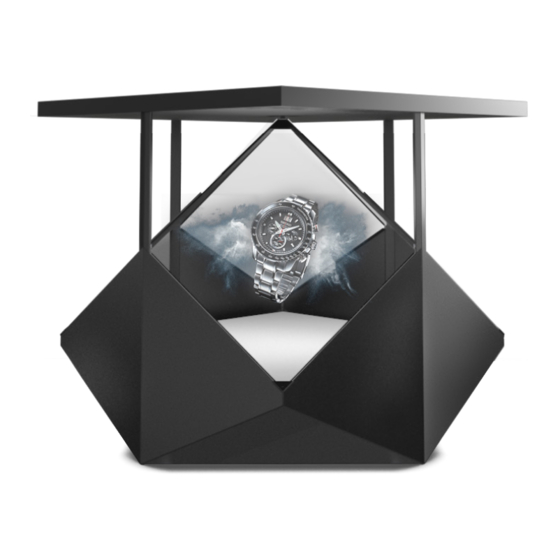

The Dreamoc is designed to showcase products and other objects in combination with free floating 3D video ani-
mations. The Dreamoc is design protected in shape and form. Realfiction and Dreamoc are registered trademarks
owned by Realfiction ApS.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Realfiction Dreamoc Diamond
Summary of Contents for Realfiction Dreamoc Diamond
- Page 1 Dreamoc. The Dreamoc is designed to showcase products and other objects in combination with free floating 3D video ani- mations. The Dreamoc is design protected in shape and form. Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS.
-
Page 2: Table Of Contents
Content: Security precautions Product guarantee When receiving the Dreamoc Diamond Package content How to operate the display Powering on the display Placing an object inside the display Changing video content Supported file formats and use of file names How to solve playback issues using Mac... -
Page 3: Security Precautions
Security precautions • Installation of the Dreamoc must be done according to this manual, and must be performed by an adult (Over 21 years). • The Dreamoc must be placed on a horizontal, stable and plane surface. • Do not install the Dreamoc in narrow passageways or other places where a lot of people and equipment has to pass close by, thereby risking collisions that might cause the Dreamoc to tip over causing human injuries and damage to property. -
Page 4: Product Guarantee
Product guarantee The manufacturers guarantee includes production, materials and function of the supplied equipment. The guarantee is valid only if the supplied material is used as described in this manual, and to the purpose to which it has been designed. The guarantee includes repair or replacement of malfunctioning components. -
Page 5: When Receiving The Dreamoc Diamond
WHEN RECEIVING THE DREAMOC DIAMOND The Dreamoc Diamond comes in a sturdy transport case (plywood) that holds all the different parts. Package content 1 x bottom frame 2 x plywood cross sections 1 x Installation & Service Toolbox 4 x high-level center stage platform pieces... -
Page 6: How To Operate The Display
How to operate the display Opening and locking the top door 1. Remove the lid on top of the display to access the compartment. 2. When receiving the display, the top lid might be locked and you then need to remove the screws locking it in place first. -
Page 7: Powering On The Display
Powering on the display 1. Turn on or switch off the display by flipping the power switch, located inside the compartment on the top. Placing an object inside the display Removing one of the optics 1. Remove the plastic corner from the optics. 2. -
Page 8: Changing Video Content
Changing video content Please note that your video content will keep playing, even after the SD card has been removed. Always remember to turn off the power first, then change the SD card with your new video content and turn the power on again. NOTE: We recommend keeping a backup copy of your content either on a computer or a backup SD card. -
Page 9: Supported File Formats And Use Of File Names
There is no such issue when copying movies from PC. Watch the How to solve playback issues using Mac tutorial video (https:/ /vimeo.com/108581691) This tutorial shows you how to delete the hidden files and make your movie work on Dreamoc Diamond when copied from Mac. -
Page 10: Adjusting The Audio Volume
Adjusting the volume with a 4k screen If you have ordered a Dreamoc Diamond with 4K screens, please note that it doesn’t have IR but RF (Radio Frequency). You can only control volume at one screen at a time and by poiting directly at the RF. -
Page 11: Connecting The Display To An External Audio System
3. Unplug the audio cable that connects the LCD screens 4. Plug in the audio cable for your external audio system Cleaning the Dreamoc Diamond • The transparent optics is made of glass and should normally only be cleaned with a dry soft fine fiber cloth supplied with the product. -
Page 12: Trouble Shooting
• Replace driver. • Film is lacking or not Boot the Dreamoc Diamond by turning the power switch off and playing at all. on again. • If the movies have been copied to the SD-card with a Mac computer, you need to read: “How to solve the playback issue when using Mac.”... - Page 13 Problem Action • Error message: “No Boot the Dreamoc Diamond by turning the power switch off and signal” on again. • The remote control does Check if the remote has batteries inserted. not work properly • Ensure the batteries in the remote control are not exhausted.
- Page 14 Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS. Other marks may be mentioned here in that belong to other companies. © 2018 Realfcition Aps. All rights reserved. Realfiction Aps | Øster Alle 42, 7th floor | DK-2100 Copenhagen Ø Denmark | Phone: +45 70 20 64 90...
