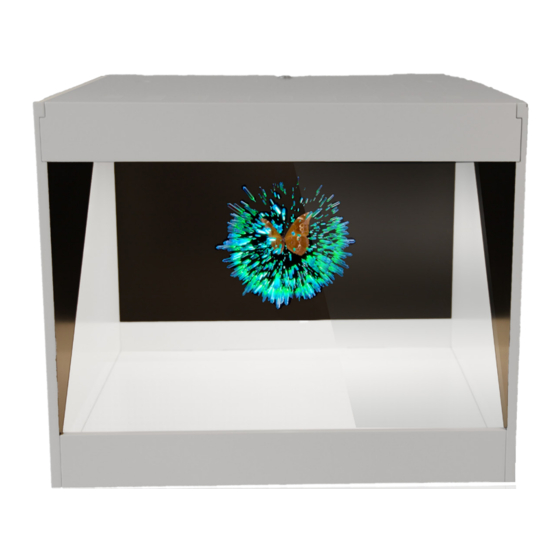

DREAMOC POP3B - USER MANUAL
VERSION 1.4 - ORIGINAL USER MANUAL
It is important to read this manual before using the Dreamoc POP3B, and to follow advices and instructions on safety, operation
and general use to get the best possible experience with your Dreamoc. The Dreamoc POP3B is a 1 sided holographic display -
designed to showcase products and other objects in combination with free floating 3D video animations. If the Dreamoc POP3B
is used for purposes other than described, the Compliance markings and guarantee will only be valid after a written approval
from Realfiction.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DREAMOC POP3B and is the answer not in the manual?

Questions and answers

Related Manuals for Realfiction DREAMOC POP3B

Summary of Contents for Realfiction DREAMOC POP3B

  • Page 1 It is important to read this manual before using the Dreamoc POP3B, and to follow advices and instructions on safety, operation and general use to get the best possible experience with your Dreamoc. The Dreamoc POP3B is a 1 sided holographic display - designed to showcase products and other objects in combination with free floating 3D video animations.

  • Page 2: Table Of Contents

    1. Remove the top 2. How to connect the power supply 3. How to lead/position the power cable 4. How to place an object in the Dreamoc POP3B 5. Switch on power 6. Put back the top door 7. CMS and Fusion features 8.
  • Page 3 CHAPTER 6: Trouble shooting 1. No power 2. No LED spot light 3. No picture 4. No picturek from SD card 5. No picture from HDMI input 6. No sound...

  • Page 4: Chapter 1: Eu-Declaration Of Conformity

    Content and scope of the colour show is designed in an interchange- able memory card, and worked with the client’s wishes. Dreamoc POP3B consists of a display unit that is mounted on a floor stand. Display unit can also be mounted on the wall without using a stand, or placed on other stable surfaces.

  • Page 5: Chapter 2: Important Safety Instructions

    • Do not install the Dreamoc POP3B in narrow passageways or other places where a lot of people and equipment has to pass close by, thereby risking collisions that might cause the Dreamoc POP3B to tip over causing human injuries and damage to property.

  • Page 6: Cleaning

    • The surface of the system will be slightly warm when using, but this does not indicate a fault. • Do not expose the Dreamoc POP3B to soot or steam. Thick soot or steam could damage the electri- cal components and cause malfunctions.

  • Page 7: Chapter 3: Product Guarantee

    CHAPTER 3: Product guarantee The manufacturers guarantee includes production, materials and function of the supplied equipment. The guarantee is valid only if the supplied material is used as described in this manual, and to the purpose to which it has been designed. The guarantee includes repair or replacement of malfunctioning components.

  • Page 8: Chapter 4: Dreamoc Pop3B Factsheet

    • Power adapter ( LITEON / Adapter 65W/19V / PA-1650-64 / Power DC Jack19V ) • Euro power cable 1,5 m • Set with two keys for the Dreamoc POP3B (same code for all Dreamoc POP3B locks) • Cleaning cloth...

  • Page 9: Dimensions

    Dreamoc POP3B Optional Accessories Stand If you wish to build your own stand use the “Dreamoc POP3B - bottom view” drawing dimensions (above). Dreamoc Play App With the Dreamoc Play App your Dreamoc easily becomes an interactive selling or presentation tool.

  • Page 10: Chapter 5: How To Start Using The Dreamoc Pop3B

    NOTE: Once opened the top door should be taken completely off to avoid damage! 2. How to connect the power supply? Dreamoc POP3B uses a separate power supply making it easy to change it to different country varia- tions. Assemble the power supply and power cable as shown below the picture.

  • Page 11: How To Lead/Position The Power Cable

    The LCD screen power input is located next to the I/O switch. Insert the power cable and connect it to a main outlet. AC 100-240V, 50 - 60 Hz, 240W. Lead the cable out through the back as shown. 3. How to lead/position the power cable? There are 2 alternative ways to postition the power cable.
  • Page 12 Then remove the black back plate. Bend it gently to alow it to pass by the metal bracket, and then slide it up. Take out the optic by gently sliding it out. Make sure to place it somewhere safe. When handling the optic, we recommend using rubber gloves, to avoid leaving fingerprints.
  • Page 13 Lay the Dreamoc POP3B display gently on its side, and remove the bottomplate. You can now either lead the cable through the hole in the back, or the larger hole in the center. In this case we will mount the display on a stand, and will therefore use the center hole. We use the 4 small holes to securely bolt the display to the stand.

  • Page 14: How To Place An Object In The Dreamoc Pop3B

    Mount the white bottomplate, the black back plate and the optic, before finally connecting the LED spotlight and power cable again. 4. How to place an object in the Dreamoc POP3B? To place a physical object inside the display you need to do the following: Make sure the LED spot- light and the power cable are both unplugged.

  • Page 15: Switch On Power

    5. Switch on power Check that the I/O switch is set to I (on/off: I = ON, O = OFF). The Dreamoc POP3B is delivered with a pre installed demo movie which will start automatically. The Dreamoc POP3B can operate 24/7, but if you would like to turn off the power, you can either use the on/off switch or simply cut power to the Dreamoc POP3B.

  • Page 16: Cms And Fusion Features

    FREE: We offer a free hosted online version, which is very easy to use. Simply sign up, get your login, and start pushing con- tent to your Dreamoc’s. Learn more on Realfiction website: http://www.realfiction.com/features/dreamoc-cms/ PRO: For those who want full flexibility, including unlimited...

  • Page 17: Hdmi Input

    8. HDMI input - (optional) Connect the HDMI cable to the Dreamoc POP3B. (The HDMI input is placed on the top of the Dreamoc POP3B - to get access you need to remove the top lid of the Dreamoc POP3B.) With an HDMI cable you can connect any external device which has an HDMI output: the external device can be an iPad, Tablet –...

  • Page 18: How To Operate The Dreamoc Pop3B - Buttons

    How to use the service menu 9. Lightcontrol One of the features in the Dreamoc POP3B, is the ability to control and synchronize the light inside the chamber with a 1kHz sound. We call this feature Lightcontrol. To activate the Lightcontrol press both up and down light buttons in the same time.

  • Page 19: Content

    B. How to insert/change the content on the Dreamoc POP3B The SD card input is placed on the top of the Dreamoc POP3B (next to the I/O button) - to get access you need to remove the top lid of the Dreamoc POP3B.

  • Page 20: File Names - Playing Order

    F. File names - Playing order The Dreamoc POP3B will play all supported movies on the card in numerical and alphabetical order - Num- ber order first and after that alphabetical order ( See Below the order table) Once the last movie has finished playing, it will start playing from the top again.
  • Page 21 A filename cannot contain any of the following characters: < (less than) > (greater than) : (colon) “ (double quote) / (forward slash) \ (backslash) | (vertical bar or pipe) ? (question mark) * (asterisk) Naming files include any combination of letters (A-Z) and numbers (0-9), plus the following special charac- ters ^ Accent circumflex (caret) ! Exclamation point...
  • Page 22 Check that the power switch on the correctly. Dreamoc POP3B are ON, check if the green c. Power supply de- LED is on, if green LED light change the fect.
  • Page 23 Problem Possible cause Action No picture from HDMI a. SD card are not a. Remove SD card and boot the Dreamoc input removed. POP3B. b. Defect HDMI source b. Try to correct the HDMI source to anoth- or HDMI cable. er LCD monitor.
  • Page 24 Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS. Other marks may be mentioned here in that belong to other companies. © 2016 Realfcition Aps. All rights reserved. Realfiction Aps | Øster Alle 42, 7th floor | DK-2100 Copenhagen Ø Denmark | Phone: +45 70 20 64 90...
