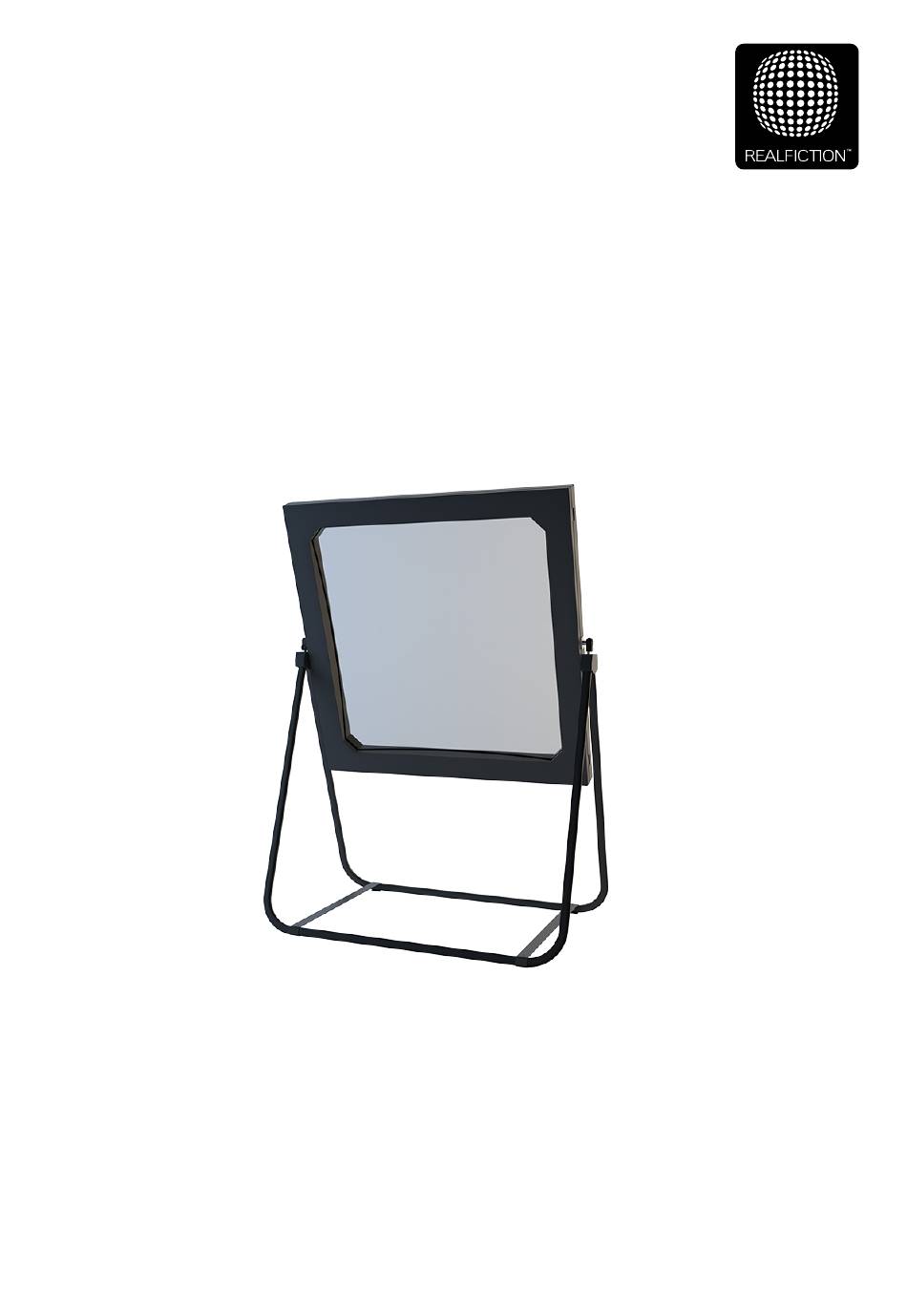

DEEPFRAME BASIC KIT- USER MANUAL
VERSION 1.3 - ORIGINAL USER MANUAL
It is important to read this manual before using the DeepFrame, and to follow advices and instructions on safety,
operation and general use to get the best possible experience with your DeepFrame. DeepFrame is a revolutionary
new type of mixed reality display that enables digital content to appear as a hologram on top of reality seen
through the lens. The window-like display consists of a high-precision optical lens that can be mounted on the
floor stand (optional accessory) or hang suspended in wires.
The DeepFrame is patent-pending. Realfiction and DeepFrame are registered trademarks owned by Realfiction ApS.
1

Advertisement

Table of Contents
loading

Related Manuals for Realfiction DEEPFRAME BASIC

Summary of Contents for Realfiction DEEPFRAME BASIC

  • Page 1 The window-like display consists of a high-precision optical lens that can be mounted on the floor stand (optional accessory) or hang suspended in wires. The DeepFrame is patent-pending. Realfiction and DeepFrame are registered trademarks owned by Realfiction ApS.

  • Page 2: Table Of Contents

    Content Security precautions Product guarantee When recieving the DeepFrame How to operate the display Unpacking and preparing your OLED screen for first time use Adjusting the hologram Adjusting the volume Hanging the display in wires, suspended from the ceiling Cleaning the display Using the display in smaller areas...

  • Page 3: Security Precautions

    Security precautions • Installation of the DeepFrame must be done according to this manual, and must be performed by an adult (Over 21 years). • If installed on the floor, the DeepFrame must be placed on a horizontal, stable and plane surface.

  • Page 4: Product Guarantee

    Product guarantee The manufacturers guarantee includes production, materials and function of the supplied equip- ment. The guarantee is valid only if the supplied material is used as described in this manual, and to the purpose to which it has been designed. The guarantee includes repair or replacement of malfunctioning components.

  • Page 5: When Recieving The Deepframe

    WHEN RECEIVING THE DEEPFRAME The DeepFrame comes in a sturdy flight case that holds the optical lens, floor stand (optional) and OLED mount kit (optional). Please note that DeepFrame needs to be combined with an HD or 4K screen (not included) for projecting the digital content through the optical lens.
  • Page 6 In order to create a free-floating hologram that appears to be in the real world (or a virtual overlay on top of a real object), we recommend having a free space of minimum width 2m x length 5m (~6 x16 ft) for the DeepFrame installation.

  • Page 7: How To Operate The Display

    HOW TO OPERATE THE DISPLAY UNPACKING AND PREPARING YOUR OLED SCREEN FOR FIRST TIME USE 1. Take out your OLED Screen from the box and gently place it on a sheet of protective foam on the floor with the backside up. 2.
  • Page 8 Basic Kit. This is needed to setup your OLED Screen’s picture, sound and power settings settings. If you have a DeepFrame One, your toolbox already has a USB stick with the correct configurator file on it. If you have a DeepFrame Basic Kit, you can download the correct configurator file from the support page on our website.
  • Page 9 6. Insert the Connection Cable to the Sound Bar and then connect it to a power outlet. 7. Take the remote control and turn on the OLED Screen by pointing it towards the sound bar. 8. Select ‘English’ as your language and your country. Then click ‘Next’.
  • Page 10 9. Click ‘USB configuration’ , then ‘Import clone file’ and select the file on the USB stick. Finish by clicking ‘Update’ . IMPORTANT: Beware not to cut the power or remove the USB stick while the OLED Screen is updating the settings. 11.
  • Page 11 HOW TO OPERATE THE DISPLAY 1. DeepFrame can be connected to many different input channels using HMDI. 2. In this example, we have connected the BrightSign media player with a wireless router to the HDMI input found on the OLED Screen’s sound bar. This will allow us to use the free BrightSign App to easily switch between different content using a smartphone.

  • Page 12: Adjusting The Hologram

    ADJUSTING THE HOLOGRAM 1. Important: Make sure you have attached the long Connection Cable Extender, as the built-in cable on the OLED Screen may not be long enough to allow you to position it at the maximum height or tilt. 2.
  • Page 13 4. Then gently open the locks on the Optical Lens frame and rotate it to adjust the height your hologram appears in. When the right position is found, tighten the locks again to secure it in place. 4. Finally, tilt the OLED Screen to obtain the same angle as the Optical Lens. This step is to eliminate distortions in the hologram.

  • Page 14: Adjusting The Volume

    4. Then gently open the locks on the Optical Lens frame and rotate it to adjust the height your hologram appears in. When the right position is found, tighten the locks again to secure it in place. ADJUSTING THE VOLUME AND TURNING THE DISPLAY ON/OFF 1.
  • Page 15 Hanging the display in wires Besides being mounted on the optional floor stand, DeepFrame can also hang suspended in wires from the ceiling or a truss rig by by using the built-in eyelets in the display frame. Note: We do not recommend installing DeepFrame as a ceiling installation if the hologram is intended to appear less than 6 meters behind the lens.
  • Page 16 2. Slightly adjust the distance between your screen and DeepFrame, to create the desired size of your hologram (magnification) and distance it should appear in. Note that you only need to adjust the distance slightly in order to magnify the digital content exponentially.

  • Page 17: Cleaning The Display

    Cleaning the display The DeepFrame consists of a high-precision glass optic and must only be gently cleaned using a fine fabric cloth and a little water if necessary. Note that it is the inside of the optical lens that is delicate. Using the display in smaller areas It is possible to use DeepFrame in smaller areas, thus disregarding the recommended minimum free space of width 2m x length 5m (~6 x16 ft).
  • Page 18 Realfiction and DeepFrame are registered trademarks owned by Realfiction ApS. Other marks may be mentioned here in that belong to other companies. © 2018 Realfcition Aps. All rights reserved. Realfiction Aps | Øster Alle 42, 7th floor | DK-2100 Copenhagen Ø Denmark | Phone: +45 70 20 64 90...
