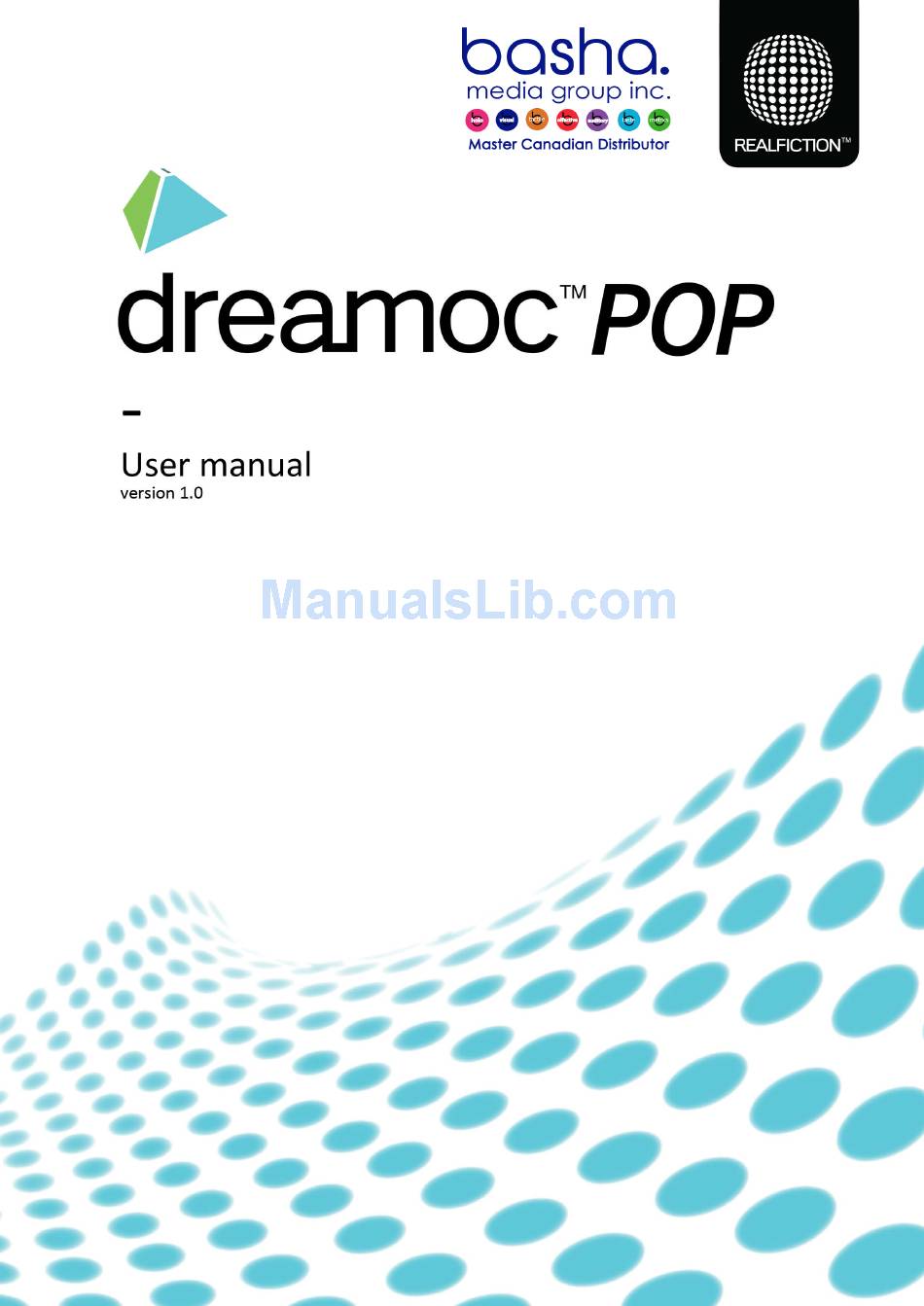

Realfiction Dreamoc POP User Manual

3d holographic display
Hide thumbs Also See for Dreamoc POP:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dreamoc POP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Realfiction Dreamoc POP

Summary of Contents for Realfiction Dreamoc POP

  • Page 2: Table Of Contents

    When receiving the Dreamoc POP p. 5 Package contents p. 5 Begin using the Dreamoc POP p. 6 How to insert/change the content in Dreamoc POP p. 8 Cleaning the Dreamoc POP p. 9 How to access the chamber of the POP p. 9 How to change the LED light p.

  • Page 3: Eu-Declaration Of Conformity

    Øster Allé 42, 5th floor 2100 Copenhagen Ø Denmark Hereby declares that the Dreamoc POP meets the Council Directive 2006/05/EF of December 12, 2006 (low voltage). Dreamoc is designed to display and promote products along with an electronic produced and animated colour show.

  • Page 4: Security Precautions

    Security precautions Installation of the Dreamoc must be done according to this manual, and must be performed by an adult (Over 21 years). The Dreamoc must be placed on a horizontal, stable and plane surface. The floor stand (coming product) must be fitted with sufficient ballast as described in this manual.

  • Page 5: Product Guarantee

    Product guarantee The manufacturers guarantee includes production, materials and function of the supplied equipment. The guarantee is valid only if the supplied material is used as described in this manual, and to the purpose to which it has been designed. The guarantee includes repair or replacement of malfunctioning components.

  • Page 6: When Receiving The Dreamoc Pop

    Please be careful when unpacking the Dreamoc. Especially the optic is a highly precise component. Package contents Dreamoc POP Display Bottom plate (to be placed inside of the Dreamoc POP) User Manual Power cord Cleaning cloth (for cleaning the optic)

  • Page 7: Begin Using The Dreamoc Pop

    Begin using the Dreamoc POP To keep the display in a pristine condition, we have included a cleaning cloth for cleaning the optic, do not use chemicals or water to clean the optic, this might damage the coating. The housing can be cleaned with a damp cloth.
  • Page 8 Open access to the chamber of the Dreamoc POP by pushing the optic gently with a finger through the small hole in the bottom plate – this is easier if you place the Dreamoc slightly away from the edge of a table. Lift up the optic with your other hand.

  • Page 9: How To Insert/Change The Content In Dreamoc Pop

    How to insert/change the content on the Dreamoc If you want to change the content in the Dreamoc POP, you simply do that by swapping the memory card. Alternatively you can overwrite the content or add extra files to the memory card already supplied with the Dreamoc POP.

  • Page 10: Cleaning The Dreamoc Pop

    With the unit powered off, take out the memory card and insert another card in the player with the label facing upwards. Do not use excessive force when inserting the card. Close the Dreamoc POP and turn on the power once again. Wait about 20 seconds and the display will start showing the new content.

  • Page 11: How To Change The Led Light

    Open access to the chamber of the Dreamoc POP by pushing the optic with a finger through the small hole in the bottom plate – this is easier if you place the Dreamoc slightly away from the edge of the table. Lift up the optic with your other hand.
  • Page 12 Remove the top plate by lifting up in the small tip placed just over the power cord Just behind the LCD display you will see the LED module containing the 3 LED lamps. Remove the two unbrako screws to unmount the LED module. Gently remove the module and replace the LED lamps.

  • Page 13: How To Access The Lcd Display And Media Player

    Normally there is no need to access the LCD display or Media Player. But should this be required, e.g. for maintenance purposes, please do the following. Note: Make sure that you have unplugged the Dreamoc POP from the power outlet. Remove the two unbrako screws on top of the Dreamoc...
  • Page 14 Here you have access to the LED lamps, LCD display, Digital Media Player and internal wiring. VGA input for the LCD display AC Power input for the LCD display...
  • Page 15 Power input for the Media Player (1) VGA output from the Media Player (2) Here it is possible to check all connections and change cables if needed. Note: Do not press any of the buttons of the Media Player. This might change the configuration of the Media Player making the unit unable to perform.

  • Page 16: Troubleshooting

    Remove the card and insert it properly and the movie should start. - Is the movie on the card properly formatted for the Dreamoc POP? Check the official demo movie and refer to the correct content manual. Screen shows mirrored...
  • Page 17 Problem (General) Solution Film is lacking or not - Check that the screen and player has power playing at all. and is turned on. Are the LED lamps on? - If the button “M” on the player has been pressed during operation, the output setting will have changed.
