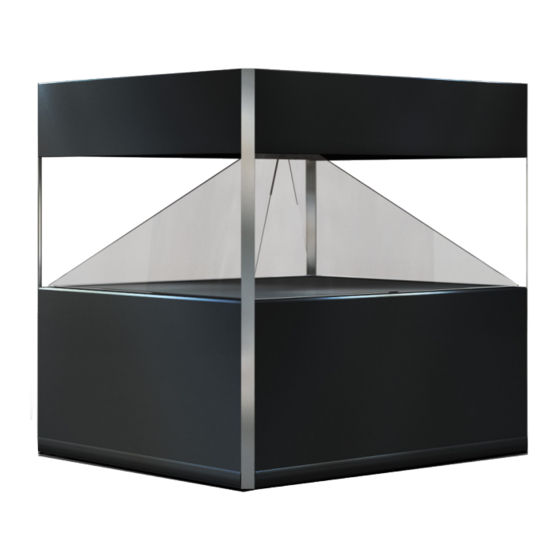

DREAMOC XXL3 - USER MANUAL
VERSION 1.0 - ORIGINAL USER MANUAL
It is important to read this manual before using the Dreamoc, and to follow advices and instructions on safety,
operation and general use to get the best possible experience with your Dreamoc.
The Dreamoc is designed to showcase products and other objects in combination with free floating 3D video ani-
mations. The Dreamoc is design protected in shape and form. Realfiction and Dreamoc are registered trademarks
owned by Realfiction ApS.
1
Advertisement
Table of Contents
Related Manuals for Realfiction DREAMOC XXL3
Summary of Contents for Realfiction DREAMOC XXL3
- Page 1 Dreamoc. The Dreamoc is designed to showcase products and other objects in combination with free floating 3D video ani- mations. The Dreamoc is design protected in shape and form. Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS.
-
Page 2: Table Of Contents
Content: Security precautions Product guarantee When receiving the Dreamoc Package content How to operate the display Opening and locking the top back door Powering on the display Opening and locking the bottom back door Placing an object inside the display Changing video content Supported file formats and use of file names How to solve playback issues using Mac... -
Page 3: Security Precautions
Security precautions • Installation of the Dreamoc must be done according to this manual, and must be performed by an adult (Over 21 years). • The Dreamoc must be placed on a horizontal, stable and plane surface. • Do not install the Dreamoc in narrow passageways or other places where a lot of people and equipment has to pass close by, thereby risking collisions that might cause the Dreamoc to tip over causing human injuries and damage to property. -
Page 4: Product Guarantee
Product guarantee The manufacturers guarantee includes production, materials and function of the supplied equipment. The guar- antee is valid only if the supplied material is used as described in this manual, and to the purpose to which it has been designed. The guarantee includes repair or replacement of malfunctioning components. -
Page 5: When Receiving The Dreamoc
When receiving the Dreamoc The Dreamoc XXL3 comes in sturdy flight cases that holds all the different parts. Package content 1 x top section frame 4 x support beams 1 x center section frame 4 x corner profiles 1 x bottom section frame... -
Page 6: How To Operate The Display
How to operate the display Opening and locking the top back door 1. First, test whether the display’s top door is already locked. This can be done by inserting an umbraco key or small screwdriver into the hole on the angled top – if it’s not possible to flip the door, it means that it’s locked. 2. -
Page 7: Powering On The Display
Powering on the display 1.Turn on or switch off the display by flipping the power switch, located inside the compartment in the top back door. Opening and locking the bottom back door 1. Locate the key for the display and insert it into the lock. Turn to open. 2. -
Page 8: Placing An Object Inside The Display
Placing an object inside the display Placing a physical object inside the display can be done in 2 ways: Using the center stage 1. Open the bottom back door and remove it as described previously. 2. Open the center stage arms one by one, to access the center stage Stage arm 3. -
Page 9: Changing Video Content
4. Place your physical object and test that the video content looks correct. 5. Place the optics back again and fasten the screws on the support rail to fully secure it. 6. Finish by attaching the bottom back door again and locking it. Changing video content Please note that your video content will keep playing, even after the SD card has been removed. -
Page 10: Supported File Formats And Use Of File Names
There is no such issue when copying movies from PC. Watch the How to solve playback issues using Mac tutorial video (https:/ /vimeo.com/108581691) This tutorial shows you how to delete the hidden files and make your movie work on Dreamoc XXL3 when copied from Mac. -
Page 11: Adjusting The Audio Volume
Adjusting the audio volume 1. Open the top back door 2. Use the remote control and point it directly towards the IR-receivers, located in the back. IR-recievers IR-recievers 3. Press the volume up/down buttons on the remote control to adjust the volume setting. Adjusting the spotlight settings inside the display 1. -
Page 12: Connecting An External Device Via Hdmi
Connecting an external device via HDMI 1. Open the top back door. 2. Locate the media player 3. Unplug the HDMI cable that connects the LCD screens 4. Plug in the HDMI cable for your external device Back of media player Connecting the display to an external audio system 1. -
Page 13: Trouble Shooting
• Replace driver. • Film is lacking or not Boot the Dreamoc XXL3 by turning the power switch off and on playing at all. again. • If the movies have been copied to the SD-card with a Mac comput- er, you need to read: “How to solve the playback issue when using... - Page 14 Problem Action • Error message: “No Boot the Dreamoc XXL3 by turning the power switch off and on signal” again. • The remote control does Check if the remote has batteries inserted. not work properly • Ensure the batteries in the remote control are not exhausted. Re- place the batteries with new ones.
- Page 15 Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS. Other marks may be mentioned here in that belong to other companies. © 2017 Realfcition Aps. All rights reserved. Realfiction Aps | Øster Alle 42, 7th floor | DK-2100 Copenhagen Ø Denmark | Phone: +45 70 20 64 90...
