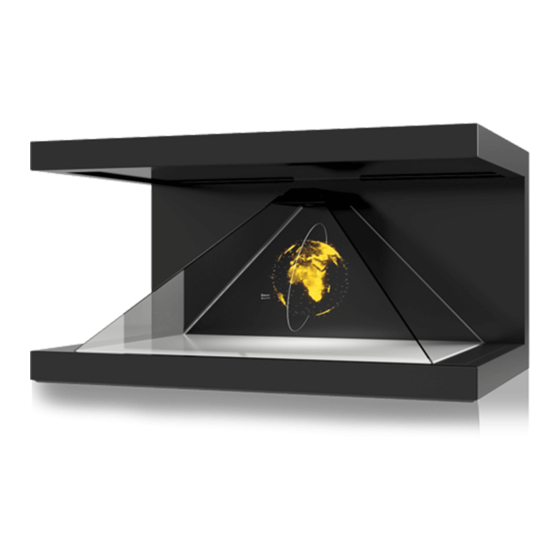

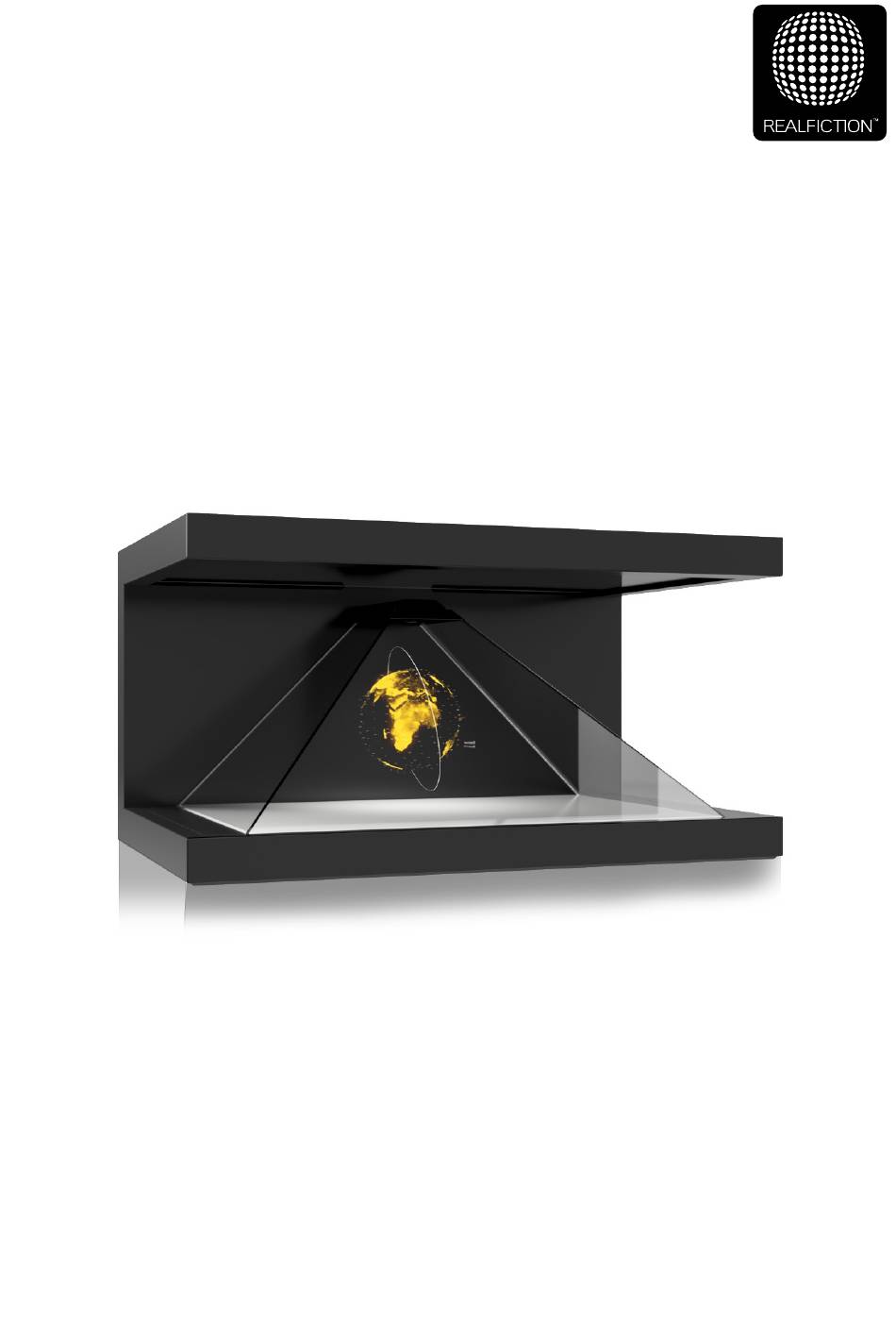

DREAMOC XL3 - USER MANUAL
VERSION 1.7 - ORIGINAL USER MANUAL
It is important to read this manual before using the Dreamoc, and to follow advices and instructions on safety,
operation and general use to get the best possible experience with your Dreamoc.
The Dreamoc is designed to showcase products and other objects in combination with free floating 3D video ani-
mations.If the Dreamoc is used for purposes other than described, the CE marking and guarantee will only be valid
after a written approval from Realfiction.
The Dreamoc is design protected in shape and form. Realfiction and Dreamoc are registered trademarks
owned by Realfiction ApS.
1
Advertisement
Table of Contents
Related Manuals for Realfiction Dreamoc XL3
Summary of Contents for Realfiction Dreamoc XL3
- Page 1 Dreamoc is used for purposes other than described, the CE marking and guarantee will only be valid after a written approval from Realfiction. The Dreamoc is design protected in shape and form. Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS.
-
Page 2: Table Of Contents
EU-declaration of conformity Security precautions Product guarantee Package contents How to start using the Dreamoc XL3 How to place an object in the Dreamoc How to change the film content on the Dreamoc Supported file formats and use of file names... -
Page 3: Eu-Declaration Of Conformity
2014 on the approximation of Member States relating to electromagnetic compatibility. Dreamoc XL3 is designed to display and promote products along with an electronic produced and animated colour show. Content and scope of the colour show is designed in an interchangeable memory card, and worked with the client’s wishes. -
Page 4: Security Precautions
Security precautions • Installation of the Dreamoc must be done according to this manual, and must be performed by an adult (Over 21 years). • The Dreamoc must be placed on a horizontal, stable and plane surface. • Do not install the Dreamoc in narrow passageways or other places where a lot of people and equipment has to pass close by, thereby risking collisions that might cause the Dreamoc to tip over causing human injuries and damage to property. -
Page 5: Product Guarantee
Product guarantee The manufacturers guarantee includes production, materials and function of the supplied equip- ment. The guarantee is valid only if the supplied material is used as described in this manual, and to the purpose to which it has been designed. The guarantee includes repair or replacement of malfunctioning components. -
Page 6: Package Contents
When receiving the Dreamoc Please be careful when unwrapping the Dreamoc. Especially the optic is a highly precise component. Package contents 1. Dreamoc XL3 display with European Schuko plug (C13 PC type cable) 2. Transport brackets 3. User manual 4. Remote control / 2 pcs AAA battery 5. -
Page 7: How To Start Using The Dreamoc Xl3
How to start using the Dreamoc XL3 1. Start by removing the two transport brackets by removing the transportation screws on the top of the Dreamoc, where the brackets are attached to the display. After the screws are removed, gently remove the brackets. -
Page 8: How To Place An Object In The Dreamoc
3. Connect the power cable to a power outlet. AC 100-240V, 50-60 Hz, 240W. Check that the I/O switch is set to I (on/off: I = ON, O = OFF). 4. Wait about 30 seconds. The Dreamoc is delivered with a pre-installed movie which will start automatically. The Dreamoc can operate 24/7, but if you would like to turn off the power, you can either use the on/off switch or simply cut power to the Dreamoc. - Page 9 3. With the hatch removed you can now lift the glass and enter the chamber inside. The glass is hinged in the top, and secured with screws. 4. If you wish to use both hands, you can use the graphite stick, found below the white bottom plate, to hold the glass.
-
Page 10: How To Change The Film Content On The Dreamoc
Please note that your content should be placed inside the folder FAIL_OVER on you USB stick if your You can read more about it here https:/ /bit.ly/2I8lpVq Dreamoc XL3 has serial number BN904-0001 or higher. We recommend to use USB 3.0 storage device, formatted with FAT 32. -
Page 11: Supported File Formats And Use Of File Names
How to solve playback issues using Mac tutorial video (https:/ /vimeo.com/108581691) This tutorial shows you how to delete the hidden files and make your movie work on Dreamoc XL3 when copied from Mac. Download Delete Hidden Files program on Realfiction ’ s Support page: support.realfiction.com/hd3... -
Page 12: How To Adjust The Sound And Light
How to adjust the sound volume The sound volume of the product can be adjusted up and down by using the remote control delivered together with the product. Make sure that there are batteries in the remote control, and then point it towards the center of front glass. How to adjust the light The intensity of the light can be adjusted very precisely: Start by opening the side hatch next to the glass optic as previously shown. -
Page 13: Cleaning The Dreamoc
NOTE: Make sure not to cover the ventilation holes on the display! Stand An ideal way to use the Dreamoc XL3 is together with any of the Dreamoc XL3 stand versions. These are de- signed specifically for this display, has the perfect viewing height, matches the display perfectly in material, color and design, and offers different functions as well. -
Page 14: Before Transporting The Dreamoc
Before transporting the Dreamoc If you need to transport the Dreamoc XL3, it important to follow these safety precautions. Failing to do so, may cause irreparable damage to the display. Loosen the screws in the metal part in the top of the front optic. Insert foam between the glass optics, and tighten the screws again. -
Page 15: Troubleshooting
• Replace driver. Film is lacking or not • Boot the Dreamoc XL3 by turning the power switch off and on again. playing at all. • If the movies have been copied to the USB stick with a Mac com- puter, you need to read: “How to solve the playback issue when... - Page 16 Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS. Other marks may be mentioned here in that belong to other companies. © 2019 Realfcition Aps. All rights reserved. Realfiction Aps | Øster Alle 42, 7th floor | DK-2100 Copenhagen Ø Denmark | Phone: +45 70 20 64 90...
