5. Installation
Installation Guide
5.2 Ultrastar Data60 Installation Procedure

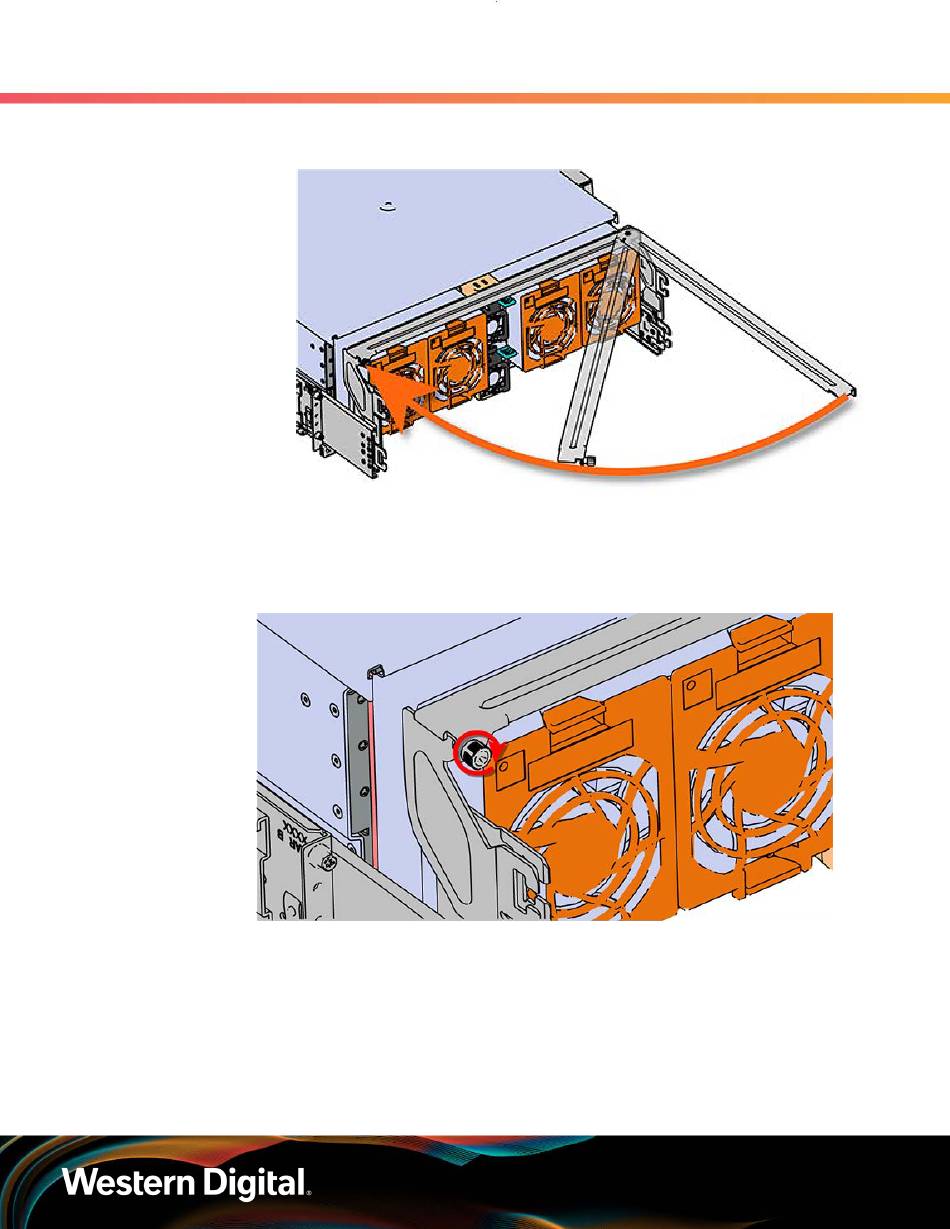

Figure 28: Swinging Motion of Crossbar to Locking Position
d. Press the crossbar against the CMA mounting bracket and secure the crossbar in place by
pressing and turning the thumbscrew clockwise until snug.
Figure 29: Tightening the Thumbscrew
a. Check that the crossbar is fully secured to the CMA mounting bracket by pulling on the
bar to ensure it does not move.
Step 12 : Install the CMA(s).
52
