Impeller Installation

In all models, the distance between the tip of the impeller
blades and the surface of the wear plate must be between
0.020-0.028 in. (0.508-0.711 mm). To achieve this value,
move the wear plate away from the impeller by turning the
adjustment bushings, once you have calculated "C" as
described below.
C = (B-A+R)
A = Distance between impeller blades and machined
surface of the casing.
B = Distance between wear plate and machined surface
of the cover plate.
Owner's Manual for Wet-Prime Trash Pumps
1
5
4

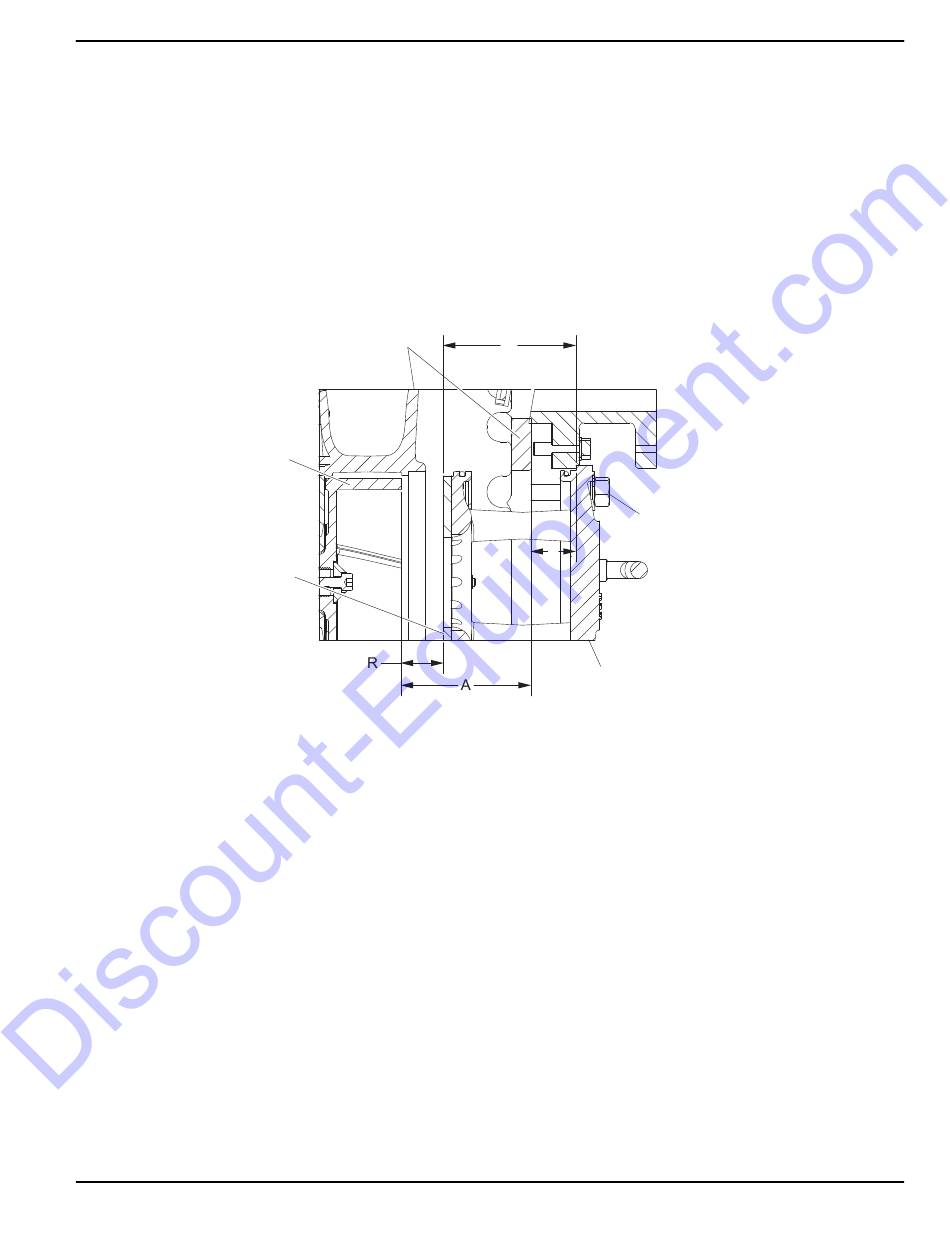

Figure 4-9. Impeller Position
1. Volute
3. Adjustment bushing
5. Cover plate
R = Distance between impeller blades and wear plate
0.020-0.028 in. (0.508-0.711 mm).
• Tighten the adjustment bushings to move the
cover away from the casing
• Be sure all four adjustment bushings are adjusted
evenly.
• After adjusting, be sure the shaft and impeller
rotate freely.
NOTE: Turning the adjustment bushing one flat (1/6 turn)
equals 0.015 in. (0.381 mm) of axial distance.
B
2
C
3
01659
2. Wear plate
4. Impeller
