Operation

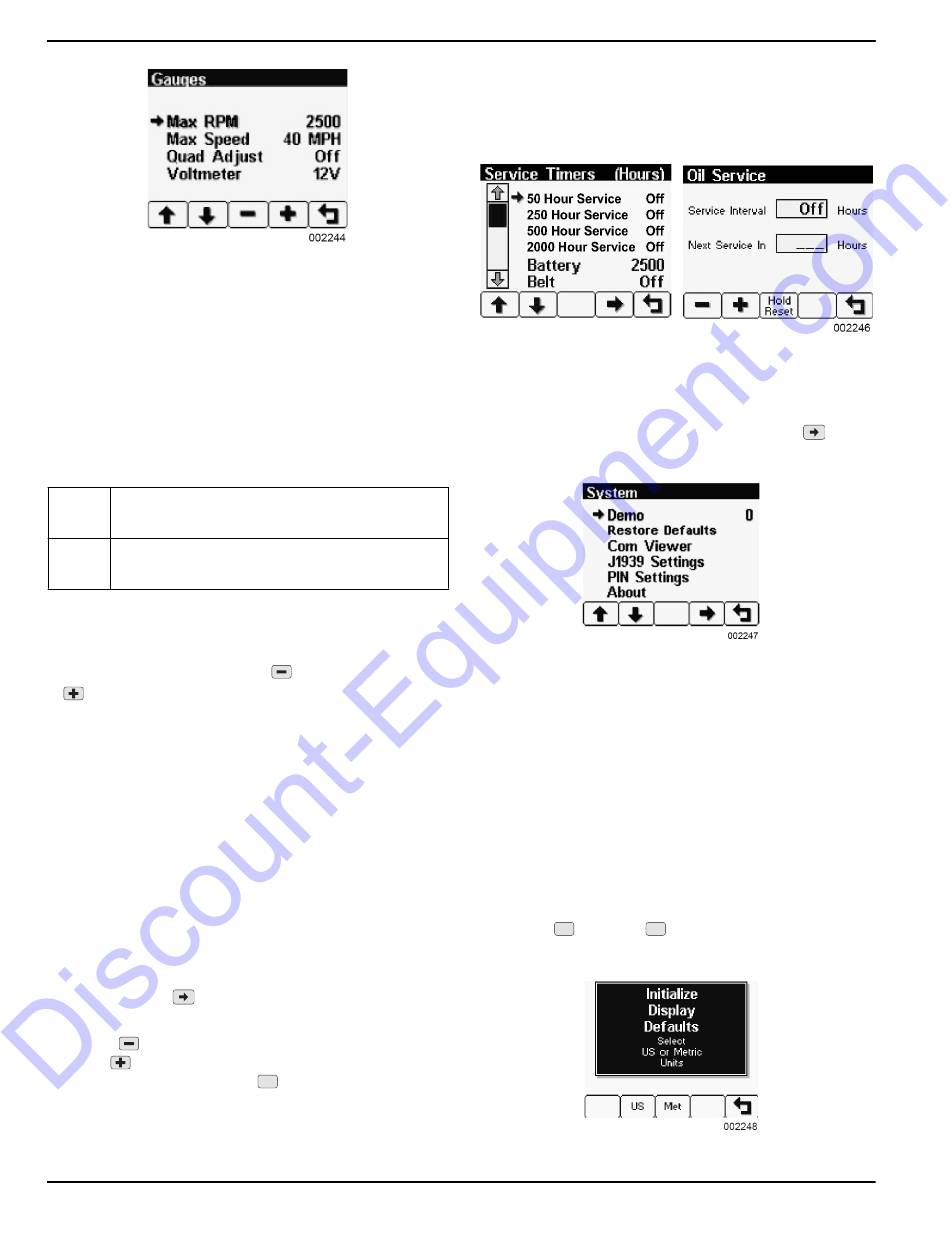

Figure 3-17. Gauges Menu

Max RPM

Sets the full scale RPM indicated by the tachometer gauge.
RPM 2500, 3000, 3500, 4000, 4500, 5000, 6000, 7000,
8000, or 9000

Max Speed

Sets the full scale speed indicated by the speedometer
gauge.
MPH 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75,
80, 85, 95, or 100
km/h 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120,
130, 140, 150, or 160

Quad Adjust

Allows the user to disable Adjust mode of the Analog and
Digital Gauge Pages. Button 3
4 enables Quad Adjust. Disabling Adjust mode locks
the current gauge configuration and prevents the
operator from accidentally
configuration.

Voltmeter

Leave setting at the 12V factory default. (24V is not
available on this unit.)

Service Timers

Sets the 16 service timers used to alert operator of
needed maintenance and resets the service timer.
Setting the service interval to 0 disables the timer and the
word Off is displayed.
Pressing button 4 allows adjusting the selected service
timer.
Button 1 decreases the service interval time while
button 2 increases the service interval time in 10 hour
increments. Holding button 3
seconds resets Next Service In to the current service
interval. The service timer descriptions can be changed
using the CANplus Configurator.
22
disables while button
changing the gauge
for approximately three
HOLD
RESET
The message is displayed on each power up until the
elapsed timer is disabled or reset.
NOTE: It is not possible to set the service timers if
engine hours are not being received by the display
.
Figure 3-18. Service Timers Menu

System Menu

The System menu allows the user to configure items
affecting how the system functions. Button 4
through the available values for the selected item.
.
Figure 3-19. System Menu

Demo

The display supports several demo modes to operate with
simulated data. Mode 1 simulates speed data and engine
parameters. Mode 2 only simulates engine parameters.
Mode 3 simulates speed data, engine parameters, and
alarms. Mode 0 disables Demo mode. Demo is automati-
cally set to 0 (Off) if live data is received.

Restore Defaults

This allows resetting of all configuration information to
default US or Metric
US Met
is reset to the initial configuration.
.
Figure 3-20. Restore Defaults Menu
Owner's Manual for Wet-Prime Trash Pumps
cycles
units. Additionally, the display
