Operation

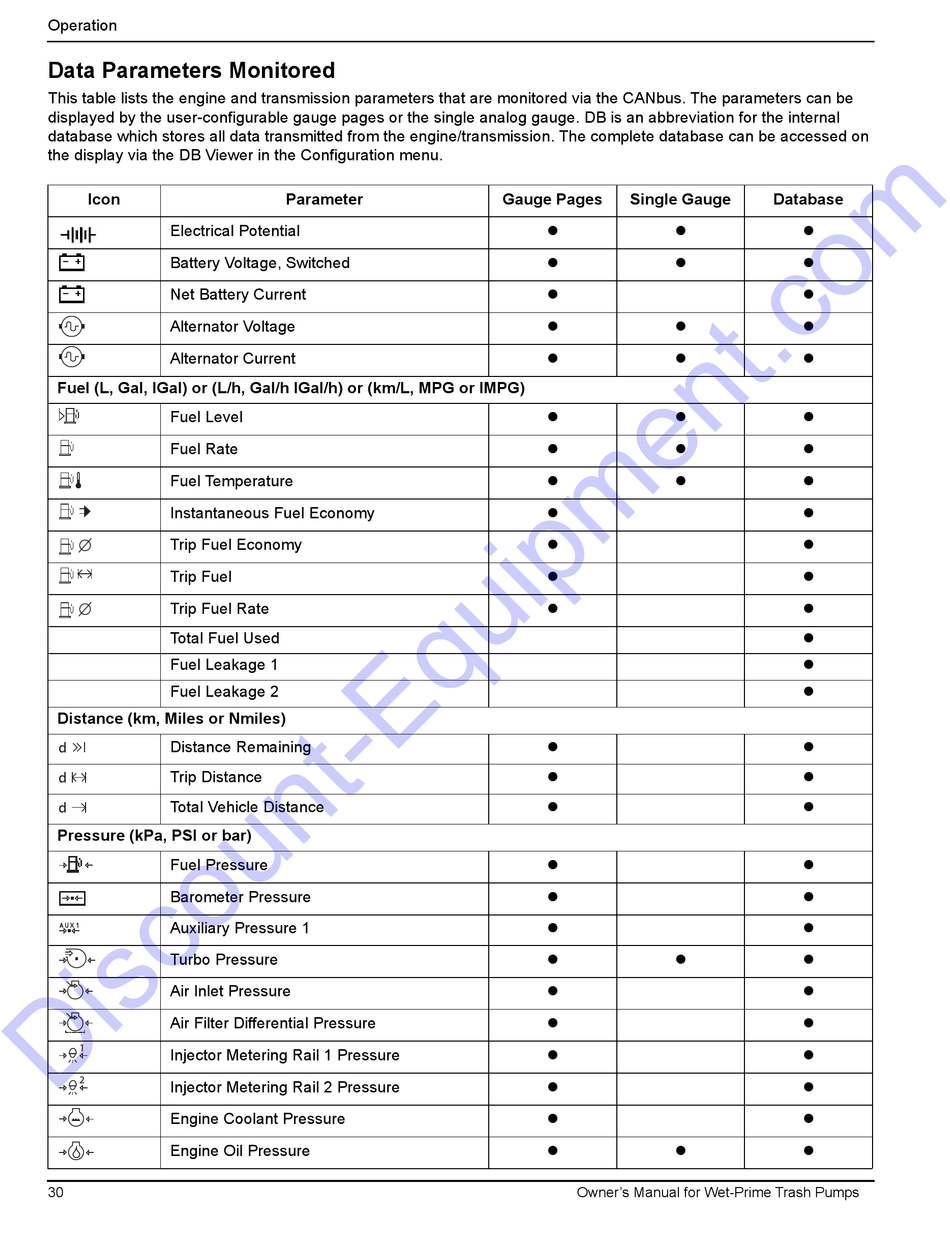

Data Parameters Monitored

This table lists the engine and transmission parameters that are monitored via the CANbus. The parameters can be
displayed by the user-configurable gauge pages or the single analog gauge. DB is an abbreviation for the internal
database which stores all data transmitted from the engine/transmission. The complete database can be accessed on
the display via the DB Viewer in the Configuration menu.
Icon
Electrical Potential
Battery Voltage, Switched
Net Battery Current
Alternator Voltage
Alternator Current
Fuel (L, Gal, lGal) or (L/h, Gal/h lGal/h) or (km/L, MPG or lMPG)
Fuel Level
Fuel Rate
Fuel Temperature
Instantaneous Fuel Economy
Trip Fuel Economy
Trip Fuel
Trip Fuel Rate
Total Fuel Used
Fuel Leakage 1
Fuel Leakage 2
Distance (km, Miles or Nmiles)
Distance Remaining
Trip Distance
Total Vehicle Distance
Pressure (kPa, PSI or bar)
Fuel Pressure
Barometer Pressure
Auxiliary Pressure 1
Turbo Pressure
Air Inlet Pressure
Air Filter Differential Pressure
Injector Metering Rail 1 Pressure
Injector Metering Rail 2 Pressure
Engine Coolant Pressure
Engine Oil Pressure
30
Parameter Gauge Pages Single Gauge
 
 

 
 
 
 
 










 





 
Owner's Manual for Wet-Prime Trash Pumps
Database




























