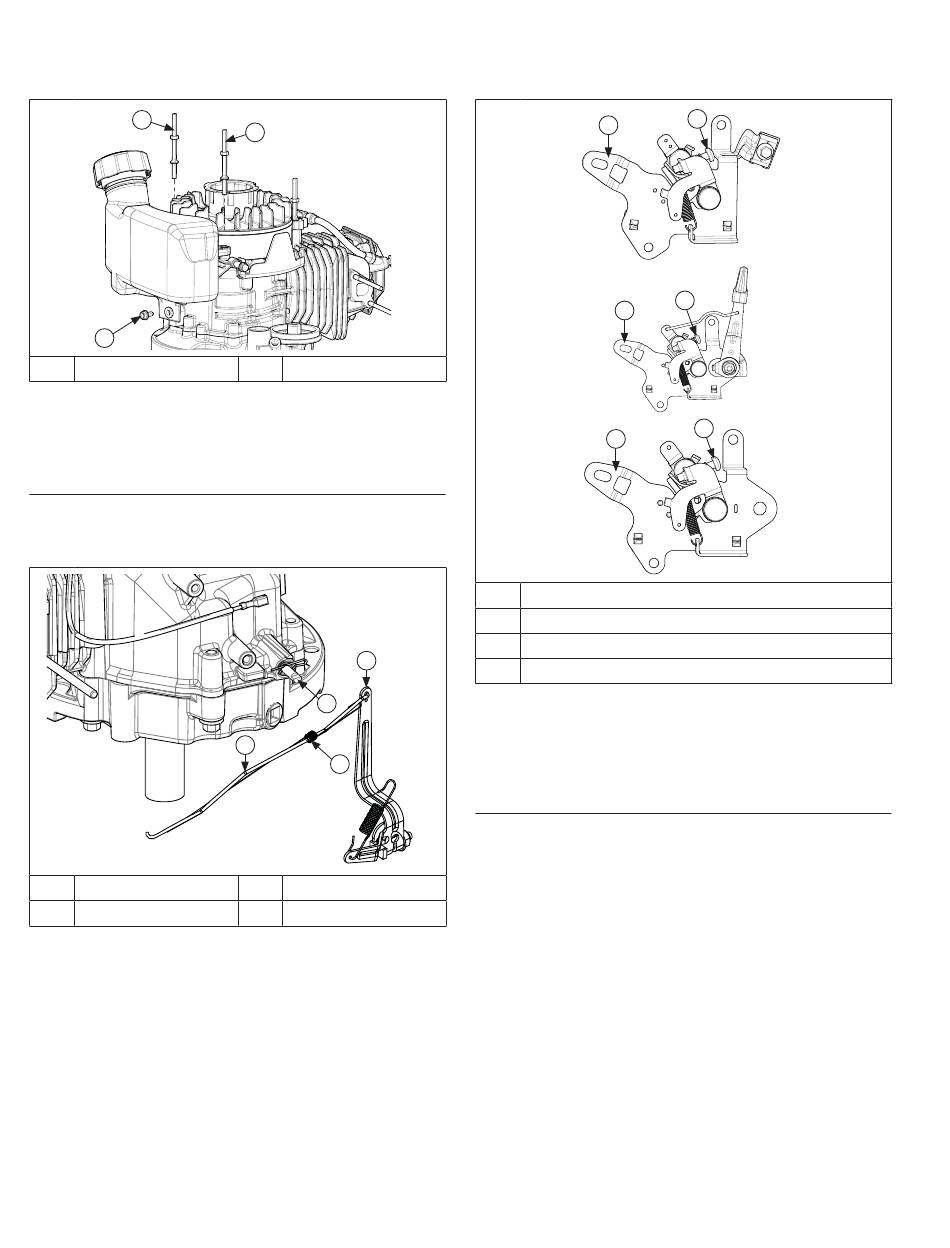

Kohler Command Pro CV173 Service Manual page 58

Reassembly
Install Fuel Tank (if equipped)
B
A
A Screw
1. Secure fuel tank to crankcase with screw. Torque
screw to 8 N·m (71 in. lb.).
2. Secure top of fuel tank to crankcase by installing
threaded studs. Torque studs to 10 N·m (89 in. lb.).
Connect Flywheel Brake Spring (if equipped)
Using a pliers, attach fl ywheel brake spring onto bracket
hook.
Install Governor Lever Assembly
A Governor Lever
C Linkage Spring
1. Install governor lever onto governor shaft with lever
up.
2. Attach throttle linkage and linkage spring to top of
governor lever.
58
B
B Stud
A
B
D
C
B Governor Shaft
D Throttle Linkage
KohlerEngines.com
Install Speed Control Bracket Assembly
A
B
C
A Variable Speed
B Non-remote Variable Speed
C Remote Variable Speed
D Speed Adjusting Screw
NOTE: There are 3 diff erent speed bracket variations for
this engine.
Secure speed control bracket (with fuel hose in plastic
clips mounted on back of speed control bracket) to
crankcase. Torque screws to 8 N·m (71 in. lb.).
Install Governor Spring
Install governor spring between governor lever and
speed control bracket.
D
D
D
