Service Manual
DDC20 Axial Piston Pumps
Torque charts

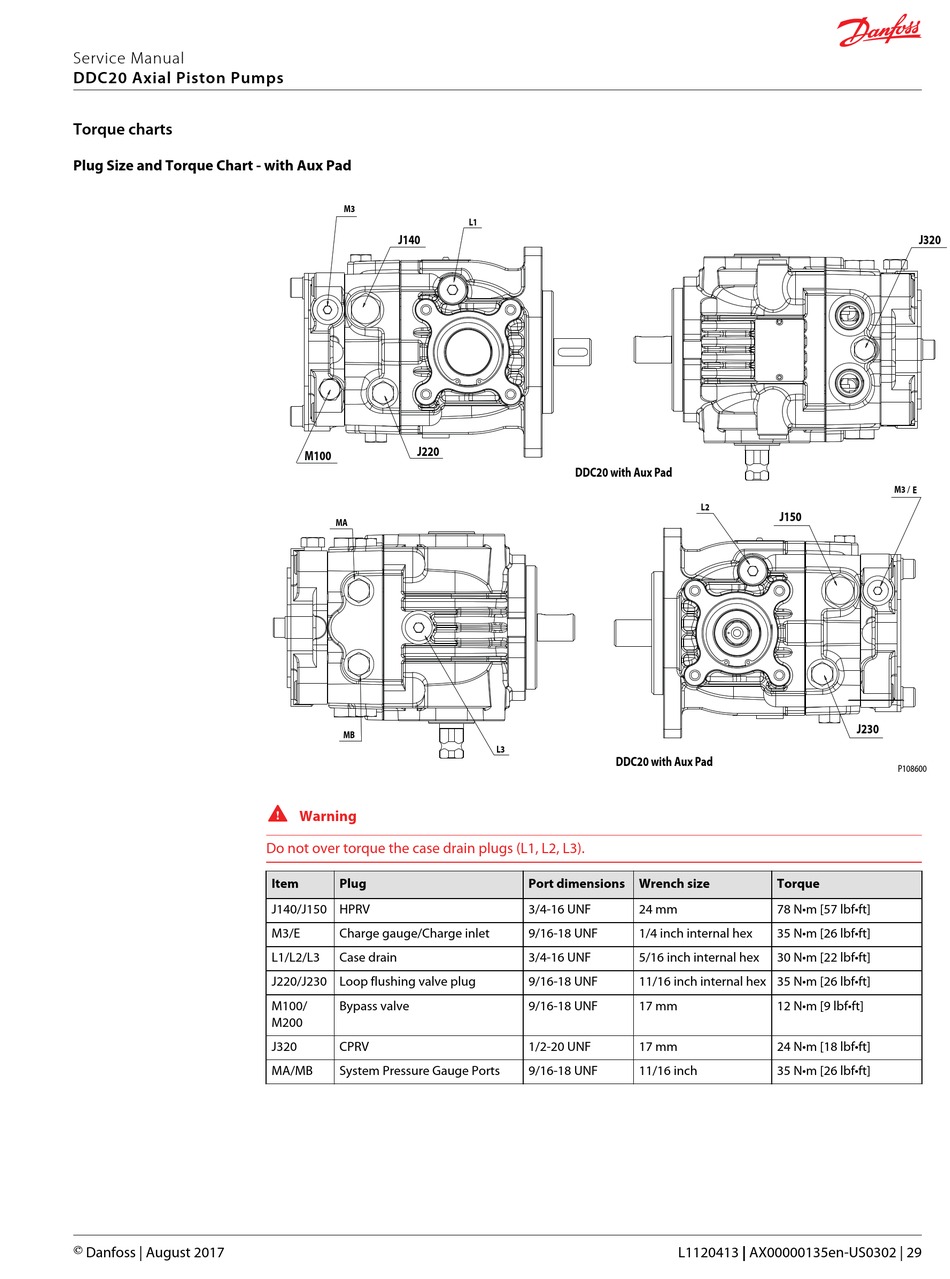

Plug Size and Torque Chart - with Aux Pad

© Danfoss | August 2017
M3
J140
J220
M100
MA
MB
W
Warning
Do not over torque the case drain plugs (L1, L2, L3).
Item Plug
J140/J150 HPRV
M3/E Charge gauge/Charge inlet
L1/L2/L3 Case drain
J220/J230 Loop flushing valve plug
M100/ Bypass valve
M200
J320 CPRV
MA/MB System Pressure Gauge Ports
L1
DDC20 with Aux Pad
L3
DDC20 with Aux Pad
Port dimensions Wrench size
3/4-16 UNF 24 mm
9/16-18 UNF 1/4 inch internal hex
3/4-16 UNF 5/16 inch internal hex
9/16-18 UNF 11/16 inch internal hex 35 N•m [26 lbf•ft]
9/16-18 UNF 17 mm
1/2-20 UNF 17 mm
9/16-18 UNF 11/16 inch
L2
J150
J230
Torque
78 N•m [57 lbf•ft]
35 N•m [26 lbf•ft]
30 N•m [22 lbf•ft]
12 N•m [9 lbf•ft]
24 N•m [18 lbf•ft]
35 N•m [26 lbf•ft]
