Implement Pump - Danfoss DDC20 Service Manual

Service Manual
DDC20 Axial Piston Pumps
Minor Repair

Implement Pump

© Danfoss | August 2017
Removal
1. Position the pump with the shaft end pointing down.
2. Remove cap screws (K200/K210). Remove the implement pump housing (K150).
3. Remove and discard O-ring (K100/K110).
4. Remove gerotor (K010). Remove locating pins (K250) from housing.

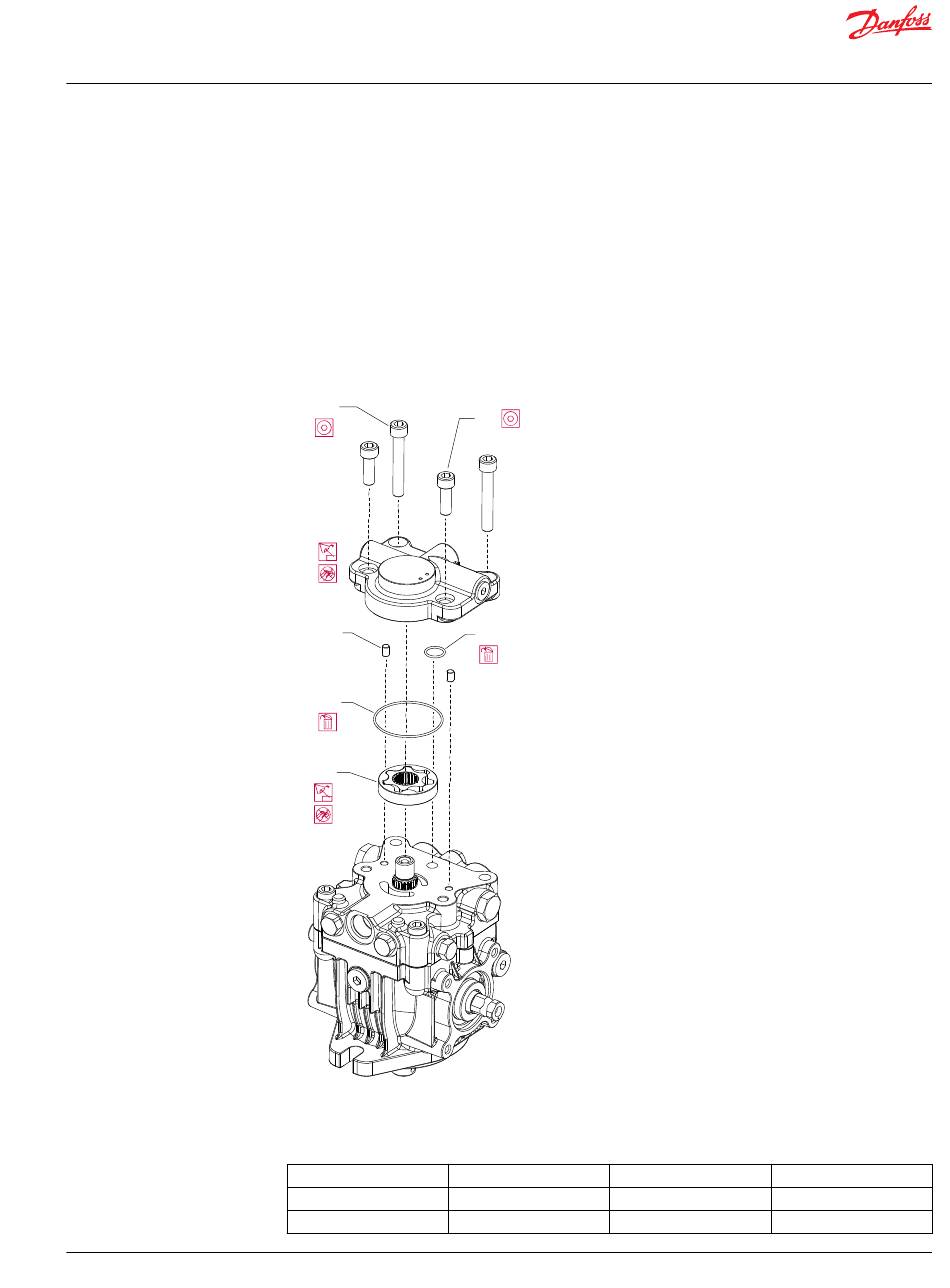

Implement Pump
K210
K250
K100
K010
Legened
Item
K200
K210
K200
K110
P108802
Description Wrench size
Cap screw 8 mm internal hex
Cap screw 8 mm internal hex
Torque
60 N･m [44 lbf･ft]
39 N･m [29 lbf･ft]
L1120413 | AX00000135en-US0302 | 17
