Service Manual
DDC20 Axial Piston Pumps
Torque charts

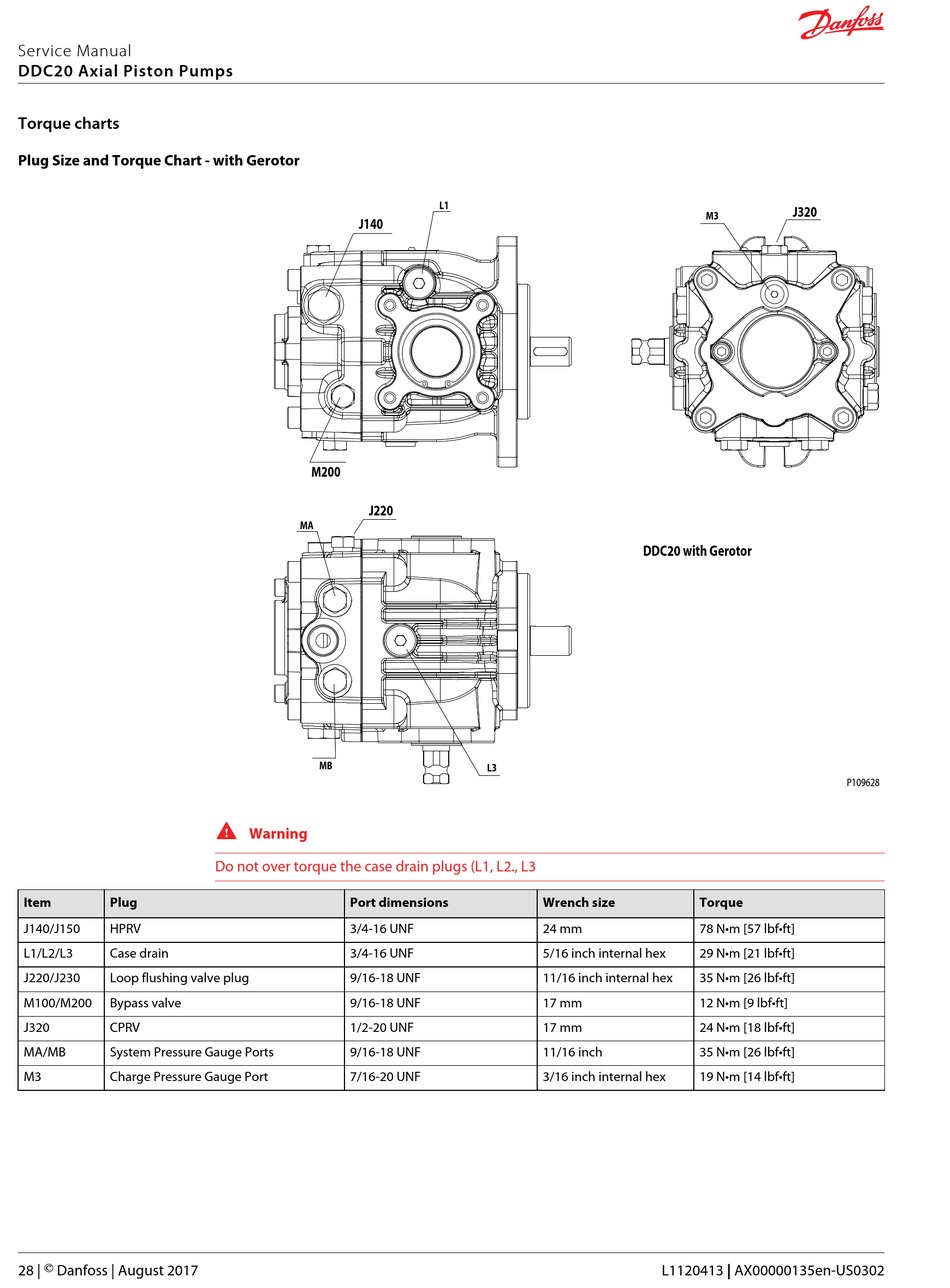

Plug Size and Torque Chart - with Gerotor

Item Plug
J140/J150 HPRV
L1/L2/L3 Case drain
J220/J230 Loop flushing valve plug
M100/M200 Bypass valve
J320 CPRV
MA/MB System Pressure Gauge Ports
M3 Charge Pressure Gauge Port
28 | © Danfoss | August 2017
J140
M200
J220
MA
MB
W
Warning
Do not over torque the case drain plugs (L1, L2., L3
Port dimensions
3/4-16 UNF
3/4-16 UNF
9/16-18 UNF
9/16-18 UNF
1/2-20 UNF
9/16-18 UNF
7/16-20 UNF
L1
L3
Wrench size
24 mm
5/16 inch internal hex
11/16 inch internal hex
17 mm
17 mm
11/16 inch
3/16 inch internal hex
J320
M3
DDC20 with Gerotor
Torque
78 N•m [57 lbf•ft]
29 N•m [21 lbf•ft]
35 N•m [26 lbf•ft]
12 N•m [9 lbf•ft]
24 N•m [18 lbf•ft]
35 N•m [26 lbf•ft]
19 N•m [14 lbf•ft]
L1120413 | AX00000135en-US0302
P109628
