I N S T A L L A T I O N M A N U A L
X-STREAM 2

WATER SAFETY ENVELOPE:

A minimum water depth of three feet (3') under the exit
of the slide which increases to a depth of four feet (4')
at point A which is located four feet six inches (4'6")
from the back wall of the pool. A minimum depth of
four feet (4') must be maintained at a distance of nine
feet (9') along the centerline of the slide from point A.
The above described water depth profile shall extend a
minimum of three feet three inches (3'3") on either
side of the centerline of the slide.

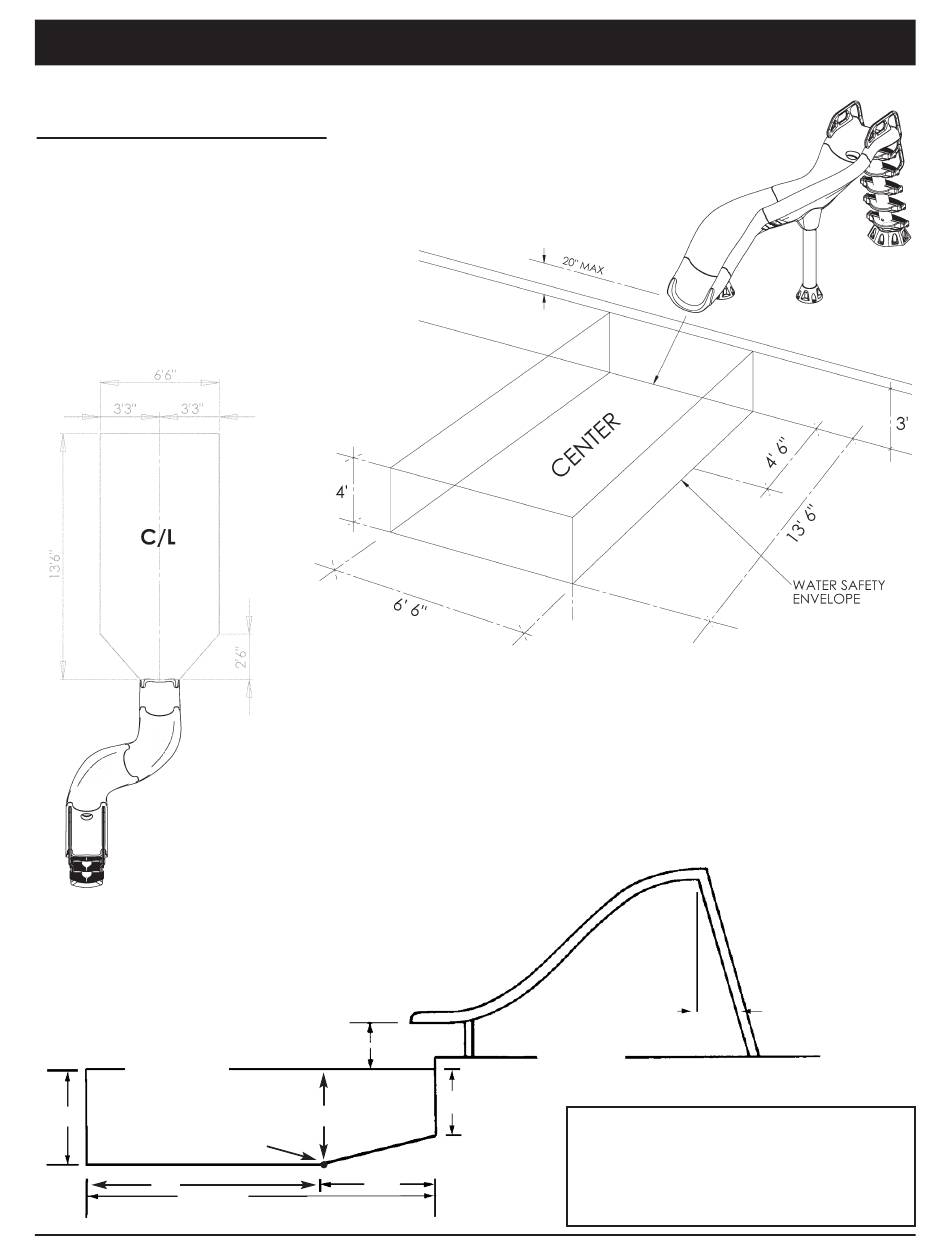

(See Diagrams A, B & C)
DIAGRAM C
(NOT TO SCALE)
Minimum Water Safety Envelope
Water Level
4'
9'
13'6"
XS2-IM Rev. 10/14 (SBK-XS2 INSTALL)
DIAGRAM B
(NOT TO SCALE)
Minimum Slide
Clearance Area
20" Max
4'
Point A
4'6"
X - S T R E A M 2 ™ S L I D E
DIAGRAM A
(NOT TO SCALE)
Level Deck
3'
ALL SLIDES SHOULD
Check your local electrical
code requirements.
4
16˚
BE GROUNDED
