Inter-fab X-STREAM 2 SLIDE Assembly/Installation Instructions page 13

I N S T A L L A T I O N M A N U A L
STEP TWO: ttach the Handrails to the Ladder and Entry Section - CONT.
Fig. 7
Fig. 8
Fig. 8
XS2-IM Rev. 10/14 (SBK-XS2 INSTALL)
X - S T R E A M 2 ™ S L I D E

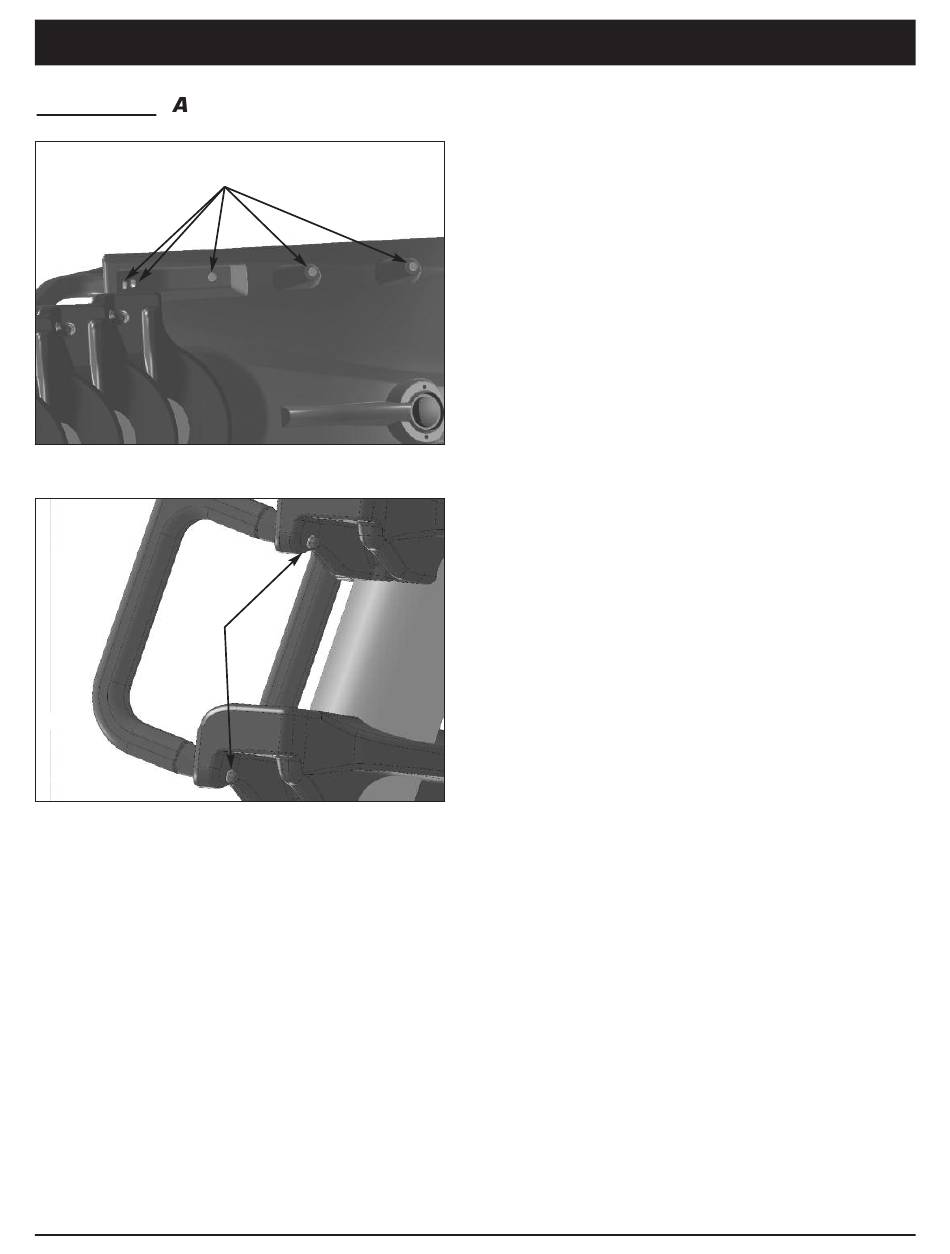

These 5 locations on the entry section receive
a flange nut only. A flat washer is not needed.
Hand tighten.
Make sure to use the provided lubricant
on the all-threads before attaching the
flange nuts.
These two locations require a flat washer,
flange nut and rubber cap. Hand tighten.
Make sure to use the provided lubricant
on the all-threads before attaching the
flange nuts.
NOTE: 1/8" – 1/4" of the all-threads will
extend through the flange nut.
Now tighten all 7 nuts on each handrail and
repeat for other handrail.
Don't forget the protective rubber caps.
(Back of steps only.)
