I N S T A L L A T I O N M A N U A L X - S T R E A M 2 ™ S L I D E

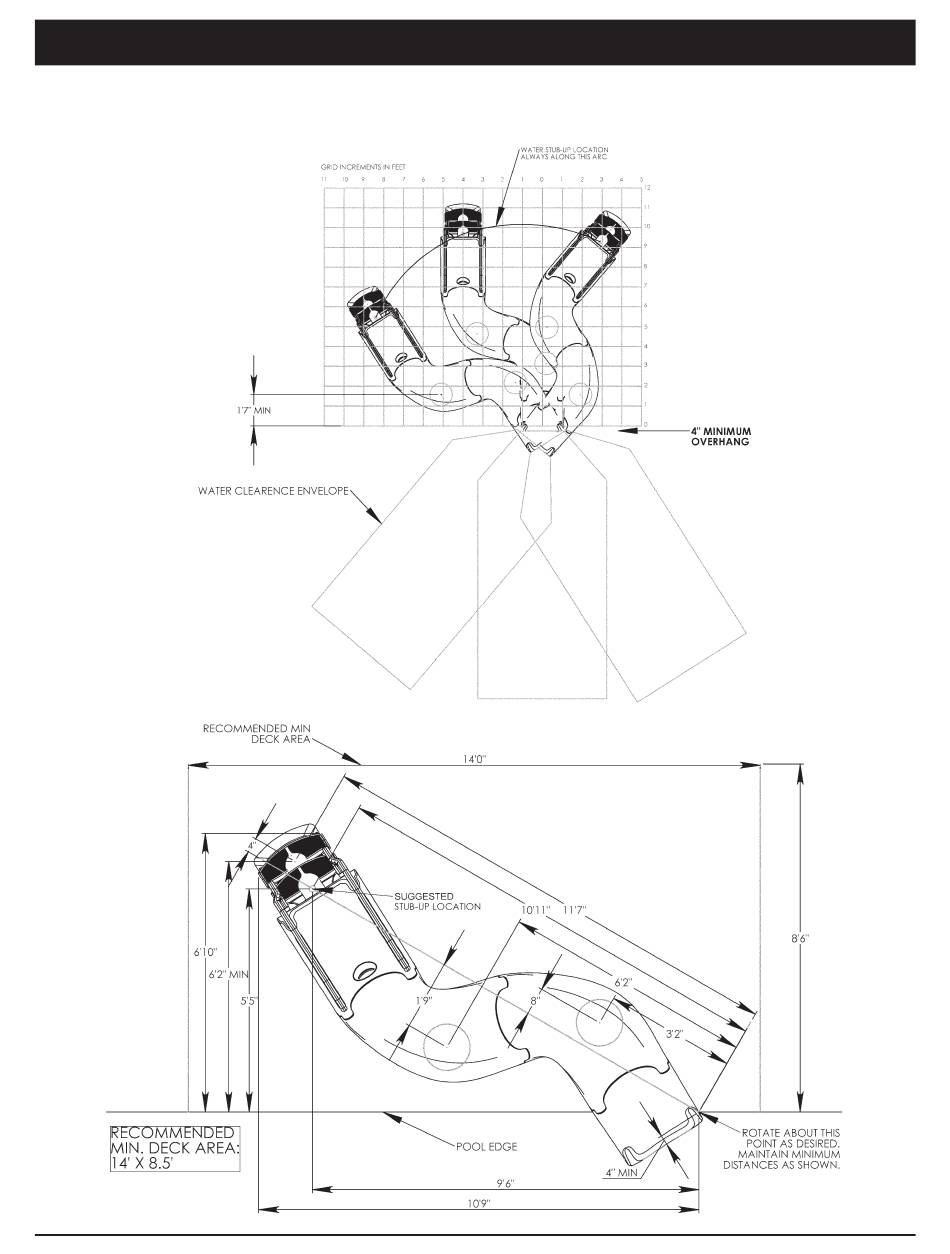

SLIDE PLACEMENT DIAGRAM & FOOTPRINT DIAGRAM
X-Stream 2 Slide - Right Turn
DIAGRAM F
(NOT TO SCALE)
DIAGRAM G
(NOT TO SCALE)
XS2-IM Rev. 10/14 (SBK-XS2 INSTALL) 6
