W I L D R I D E
™
S L I D E
Assembly & Installation Instructions
IMPORTANT
THESE INSTRUCTIONS
MUST REMAIN WITH
THE SLIDE OWNER!
3 0 5 0
S .
A L V E R N O N
W A Y
•
T U C S O N ,
A Z
8 5 7 1 3
5 2 0 . 7 9 0 . 7 0 4 0
•
8 0 0 . 7 3 7 . 5 3 8 6
•
F A X
5 2 0 . 7 9 0 . 7 1 2 7
i n t e r - f a b . c o m
WRS-IM Rev. 7/08 (SBK-INST WRS)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WILD RIDE SLIDE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Inter-fab WILD RIDE SLIDE

Summary of Contents for Inter-fab WILD RIDE SLIDE

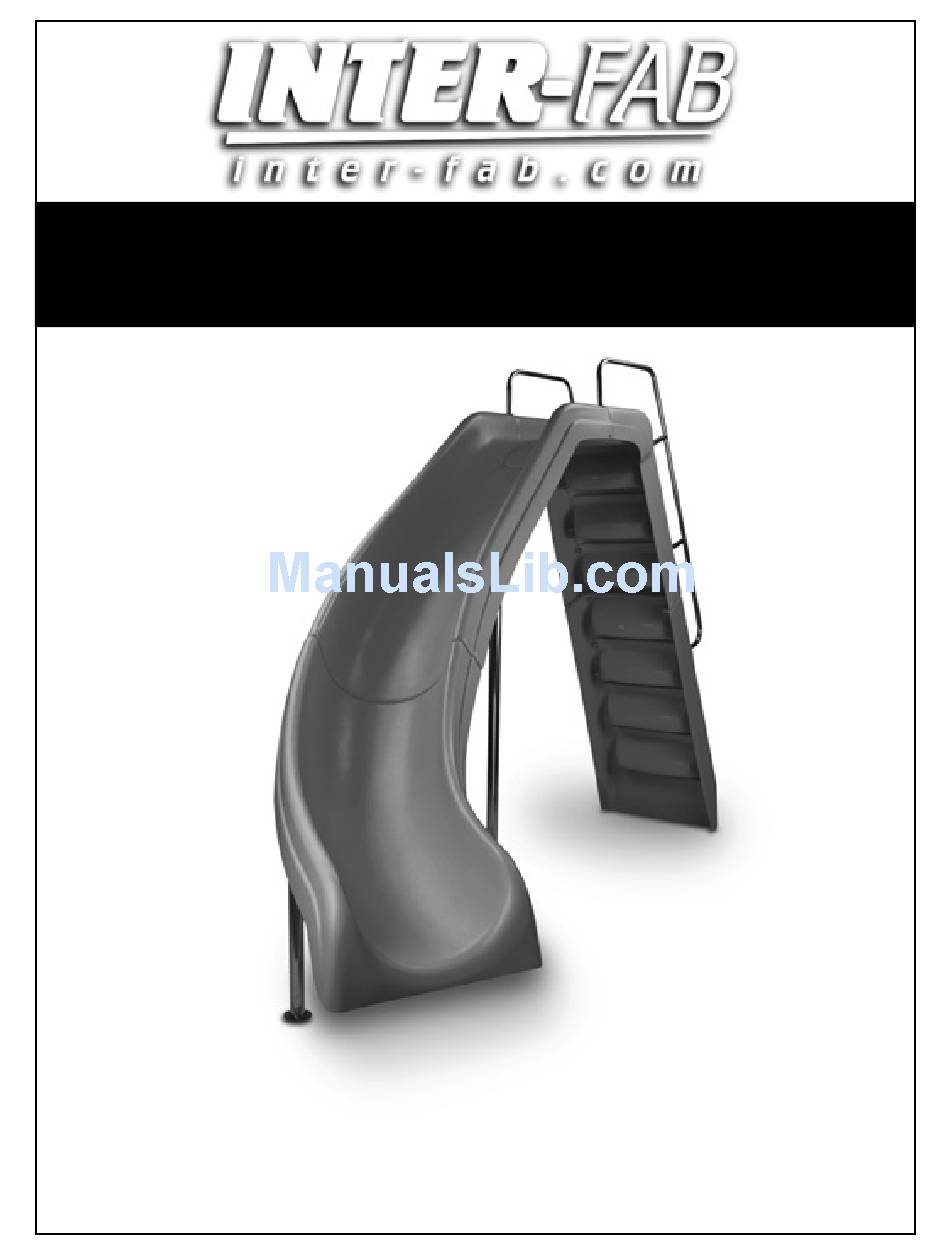

  • Page 1 W I L D R I D E ™ S L I D E Assembly & Installation Instructions IMPORTANT THESE INSTRUCTIONS MUST REMAIN WITH THE SLIDE OWNER! 3 0 5 0 A L V E R N O N W A Y •...

  • Page 2: Table Of Contents

    Step 16: Provide Homeowner with Owner’s Manual ....11 Inspection Check List.............11 Slide Care & Maintenance............12 Paver Kit Installation..............13 Exploded View of White Water Slide ........14 Parts List (corresponds with exploded view)......15 Hardware Kit Information ............16 Notes..................17 Inter-Fab, Inc. Limited Warranty..........18 WRS-IM Rev. 7/08 (SBK-INST WRS)

  • Page 3: Intended Use Instructions

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E INTENDED USE INSTRUCTIONS Everyone who uses this slide must know, understand and follow these instructions The ANSI/NSPI-4 2007 standard for above ground pools prohibits the use of slides or diving boards on above ground pools.

  • Page 4: Water Safety Envelope

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E WILD RIDE WATER SAFETY ENVELOPE: DIAGRAM A A minimum water depth of three feet (3') under the exit (NOT TO SCALE) of the slide which increases to a depth of four feet (4') at point A which is located four feet six inches (4'6")

  • Page 5: Slide Placement & Footprint Diagrams - Left Turn

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E SLIDE PLACEMENT DIAGRAM & FOOTPRINT DIAGRAM Wild Ride Slide - Left Turn DIAGRAM D (NOT TO SCALE) 3”...

  • Page 6: Slide Placement & Footprint Diagrams - Right Turn

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E SLIDE PLACEMENT DIAGRAM & FOOTPRINT DIAGRAM Wild Ride Slide - Right Turn DIAGRAM F (NOT TO SCALE) 3”...

  • Page 7: Tips & Tools For Slide Assembly

    TIP: Use vice grips or clamps to hold the flume sections as well as the step sections together during assembly. For Technical Support or Assistance Contact Customer Service at: INTER-FAB, INC. 3050 S. ALVERNON WAY TUCSON, AZ 85713 (800) 737-5386 or visit: www.inter-fab.com WRS-IM Rev. 7/08 (SBK-INST WRS)

  • Page 8: Step 1: Measure The Pool

    Next, measure the pool in front of where the slide will be installed and ensure it meets the minimum water safety envelope and clearance requirements. Inter-Fab highly recommends that only the fully assembled slide be utilized to mark the locations for the anchor bolts.

  • Page 9: Step 4: Attach Deck Anchors To Legs

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E STEP FOUR: Attach Deck Anchors to Legs TIP: Use the anti-seize (provided) on all bolts to prevent hardware from seizing. For On Deck Installation , slip the leg over a deck anchor as shown.

  • Page 10: Step 9: Attach Handrails To Steps

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E STEP NINE: Attach Handrails to Steps TIP: Use the anti-seize (provided) on all bolts to prevent hardware from seizing. Have one person lift the assembled steps, then position the upper portion of the handrail over the hole located on the outer edge of the step seat.

  • Page 11: Step 11: Place Slide In Final Position

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E STEP ELEVEN: Place Slide in its Correct and Final Position Using 2 people, gently move the fully assembled slide to its correct and final position on the deck.

  • Page 12: Step 14: Attach Water Supply

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E STEP FOURTEEN: Attach Water Supply to Slide Slip the provided 1” flex pipe through the hose hanger rings along the underside of the step. You can use either the right or the left hand side.

  • Page 13: Slide Care & Maintenance

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E SLIDE CARE & MAINTENANCE: ACRYLIC & POLYETHYLENE COMPONENTS - 1: General Cleaning •...

  • Page 14: Paver Kit Installation

    PAVER KIT INFO – WILD RIDE SLIDE When installing an Inter-Fab Wild Ride™ slide using a paver kit, you must ensure that all standard installation requirements are met. The slide must be compatible with the type of pool on the intended installation and all ANSI/NSPI-2003 requirements must be met.

  • Page 15: Exploded View Of White Water Slide

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E WILD RIDE™ SLIDE (W-RIDE-CR-SS) WRS-IM Rev. 7/08 (SBK-INST WRS)

  • Page 16: Parts List (Corresponds With Exploded View)

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E WILD RIDE™ SLIDE (W-RIDE-CR-SS) ALL CHART INFORMATION BELOW CORRESPONDS WITH THE DRAWING ON THE PREVIOUS PAGE. <--- HARDWARE NOTE: Use a small dab of...

  • Page 17: Hardware Kit Information

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E WILD RIDE™ SLIDE HARDWARE KITS SH-101-SS – STEP AND HANDRAIL ASSEMBLY QTY PART NUMBER COMPONENT DESCRIPTION H-SS 1/4-20 X 1...

  • Page 18: Notes

    I N S T A L L A T I O N M A N U A L W I L D R I D E ™ S L I D E NOTES: WRS-IM Rev. 7/08 (SBK-INST WRS)

  • Page 19: Inter-Fab, Inc. Limited Warranty

    Inter-Fab, Inc., and expressly does not cover any labor or reinstallation expenses related to the replacement of any and all Inter-Fab products. This limited warranty shall be the sole and exclusive remedy of irrespective of whether the claims are made in contract, tort, warranty, law, equity or by statue.
